$291.00

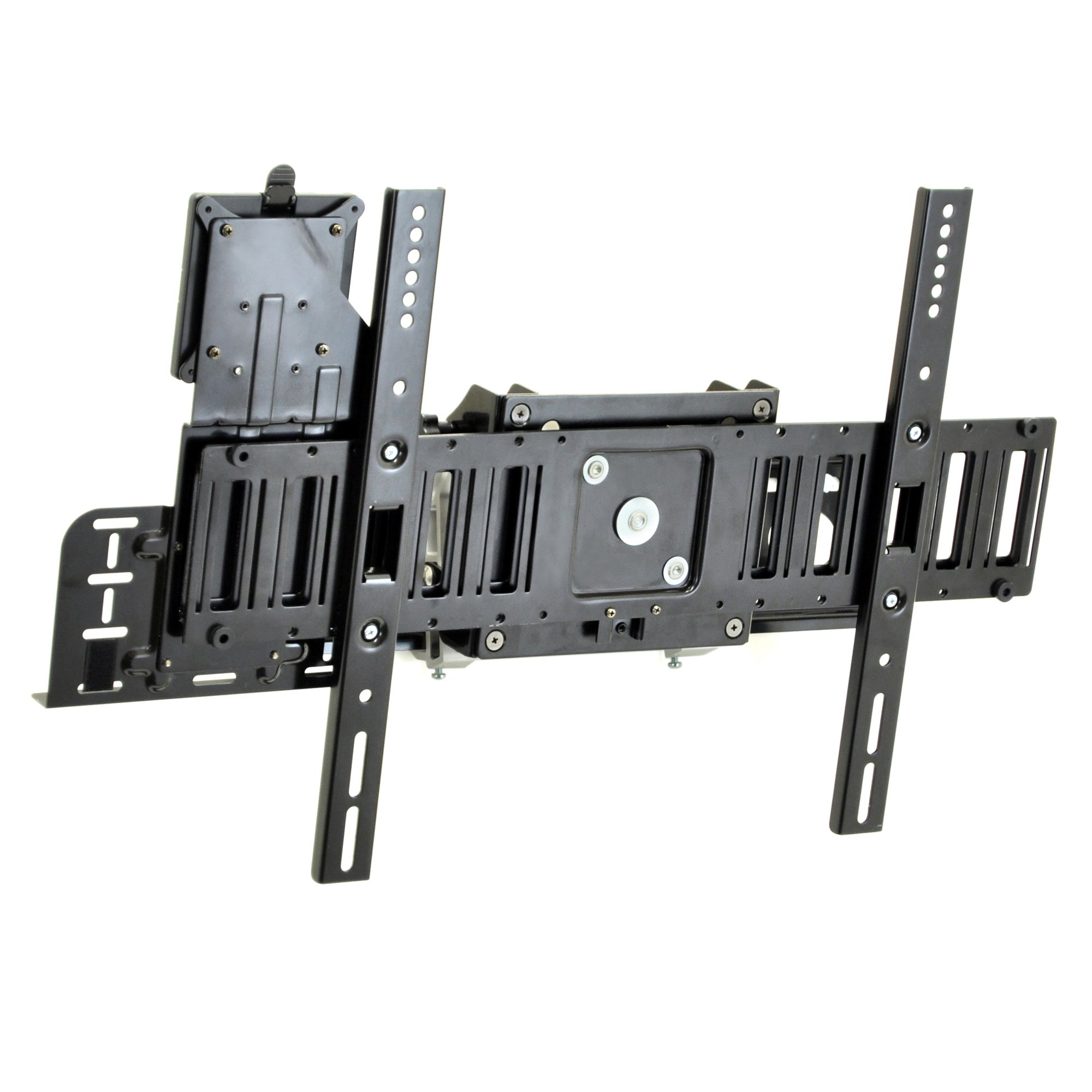

Ergotron 60-600-009 SIM90 Digital Signage Integration Mount

Product ID 16035
Ergotron 60-600-009 SIM90 Digital Signage Integration Mount
Ergotron 60-600-009 SIM90 Digital Signage Integration Mount

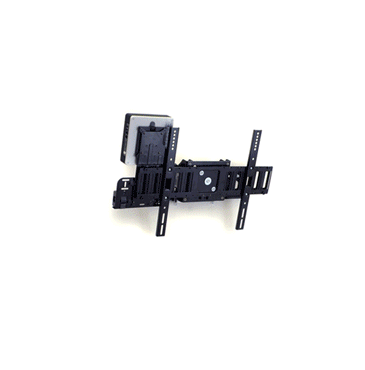

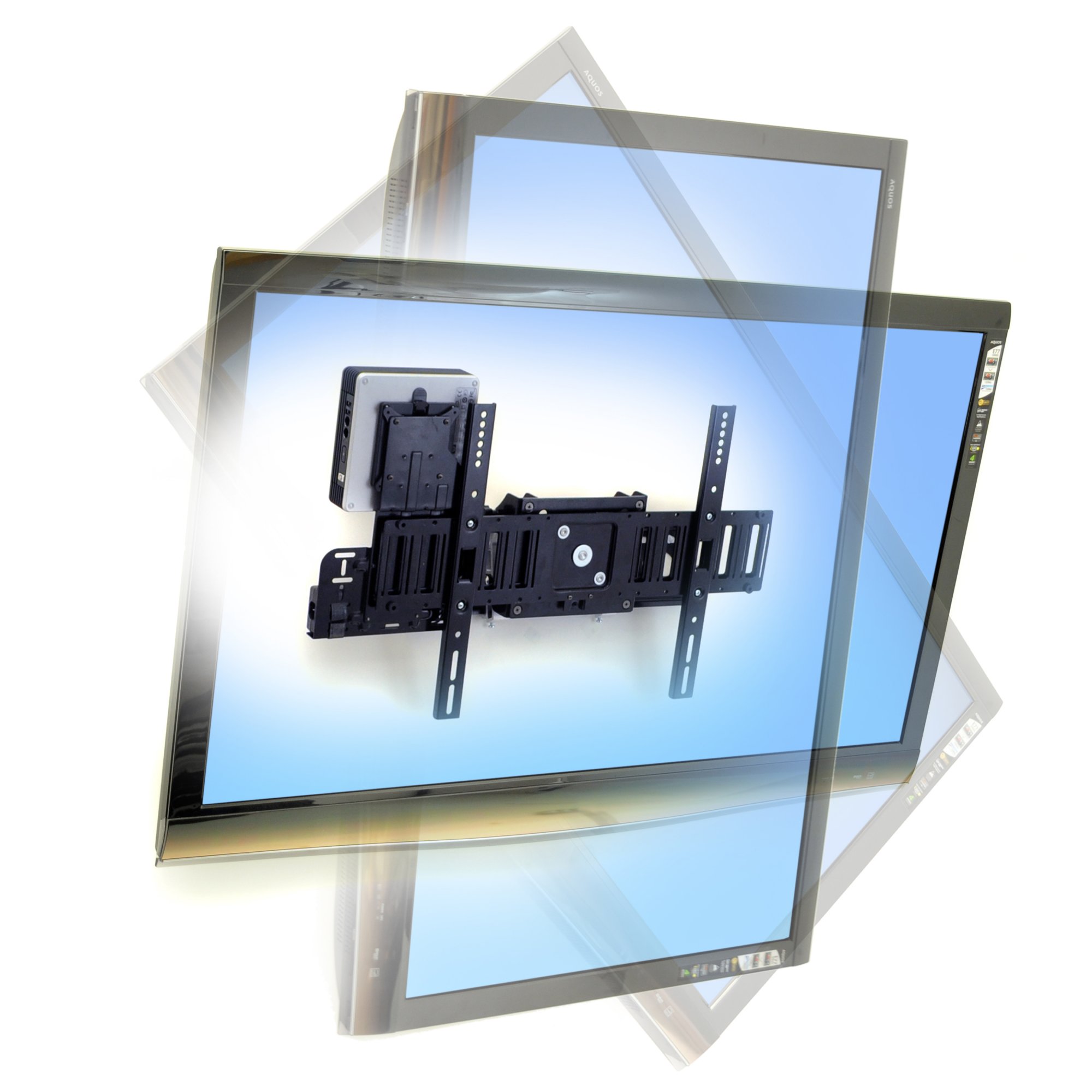

Rotation

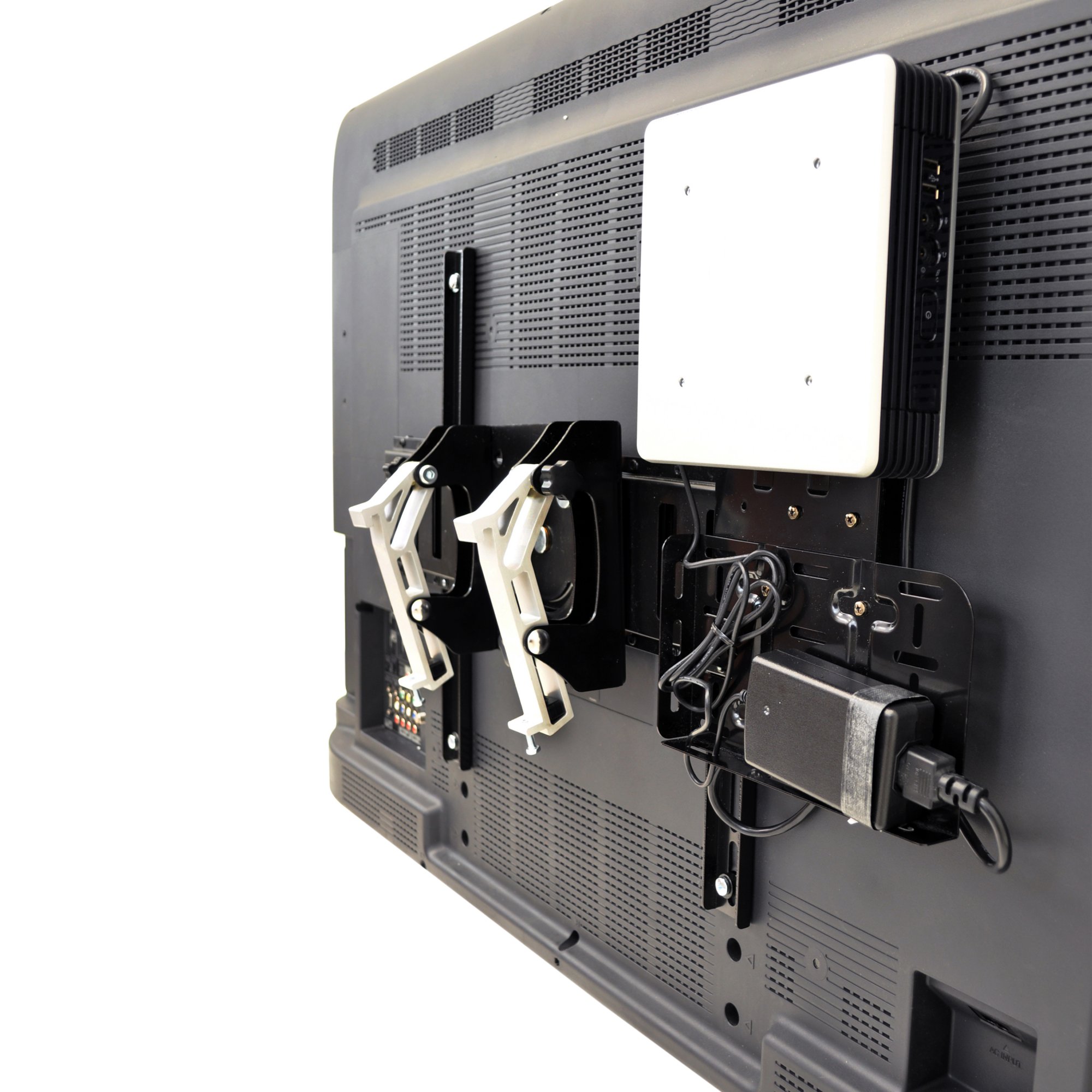

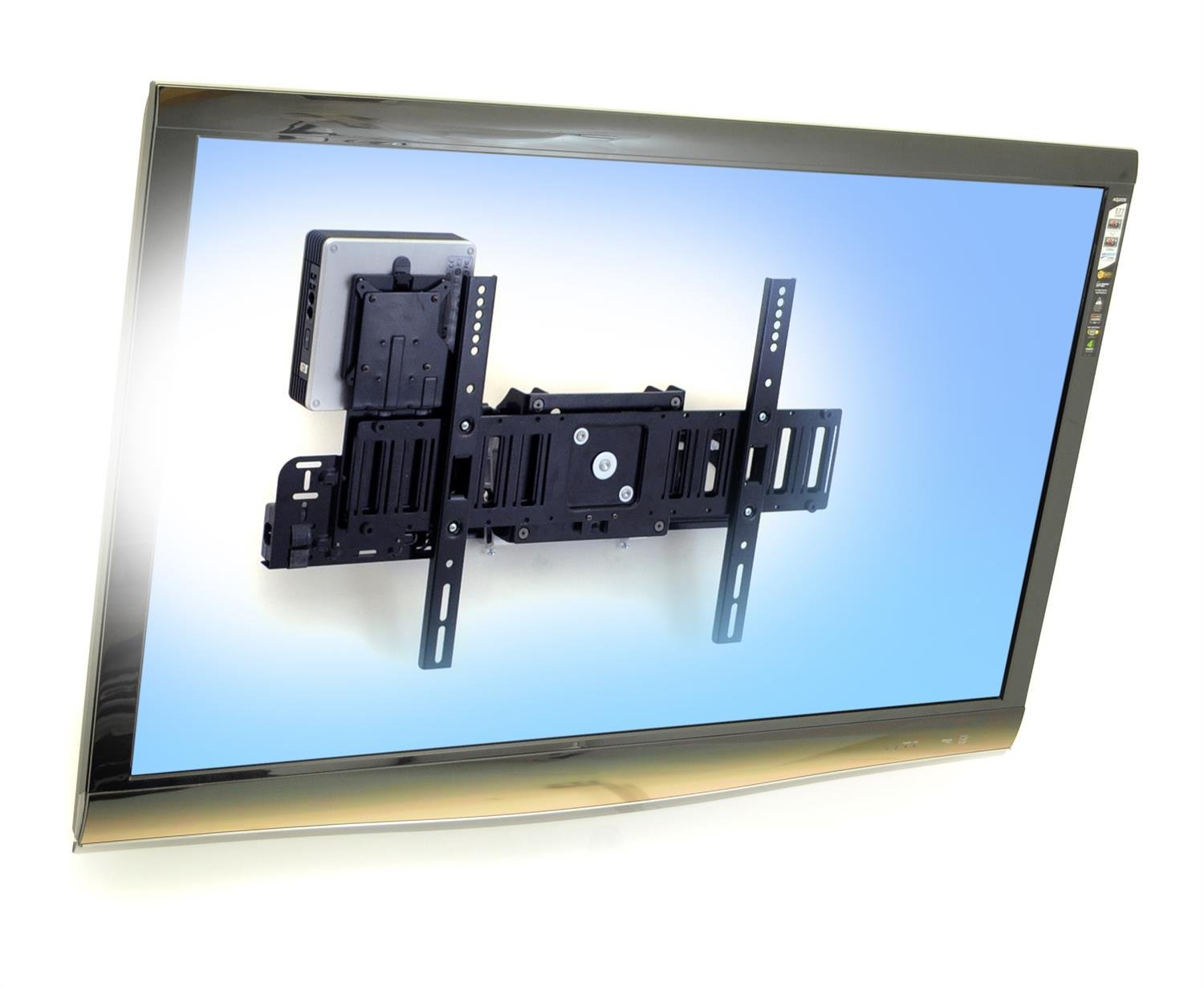

Rear view

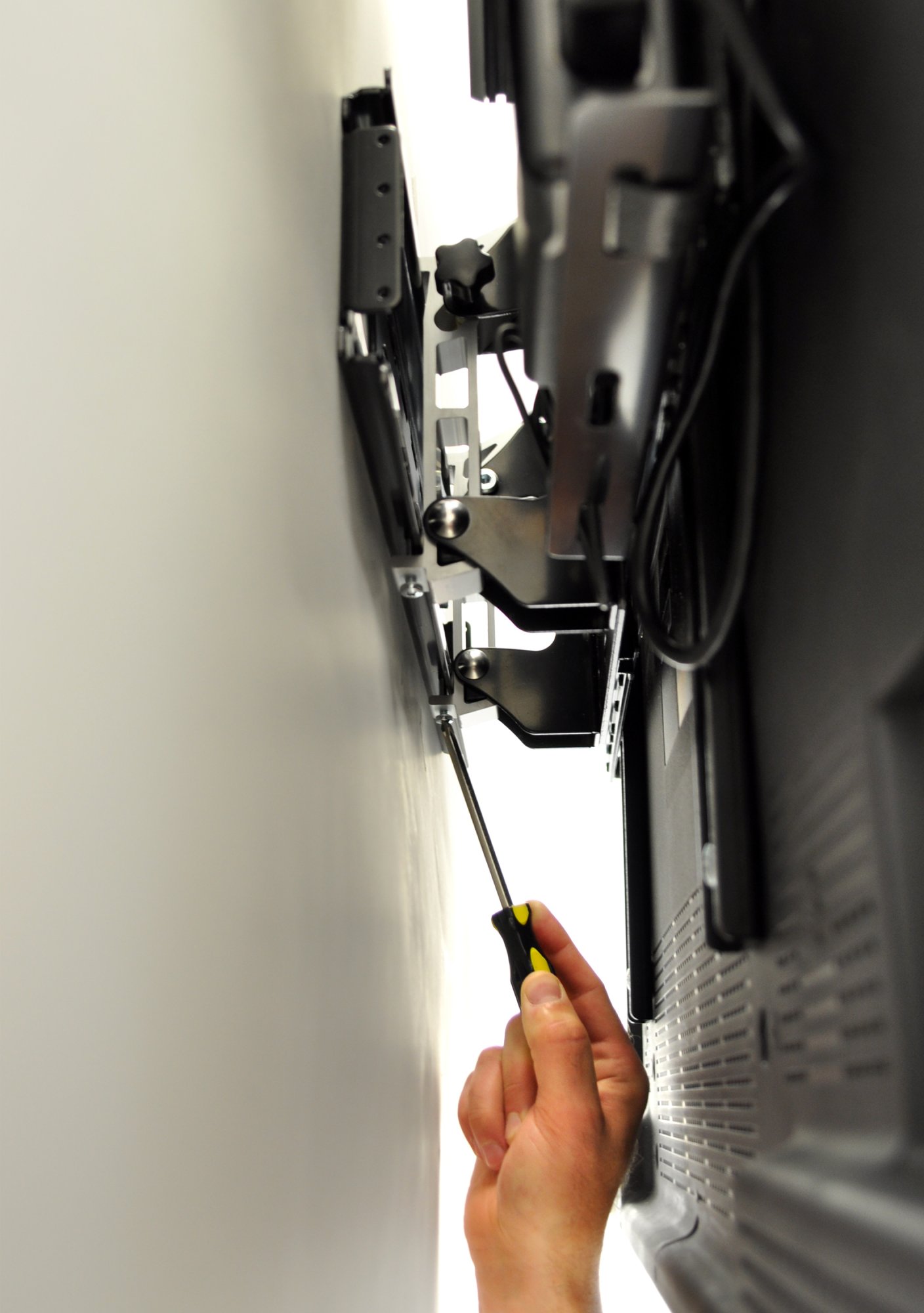

Security
Ergotron 60-600-009 SIM90 Digital Signage Integration Mount
Inused image

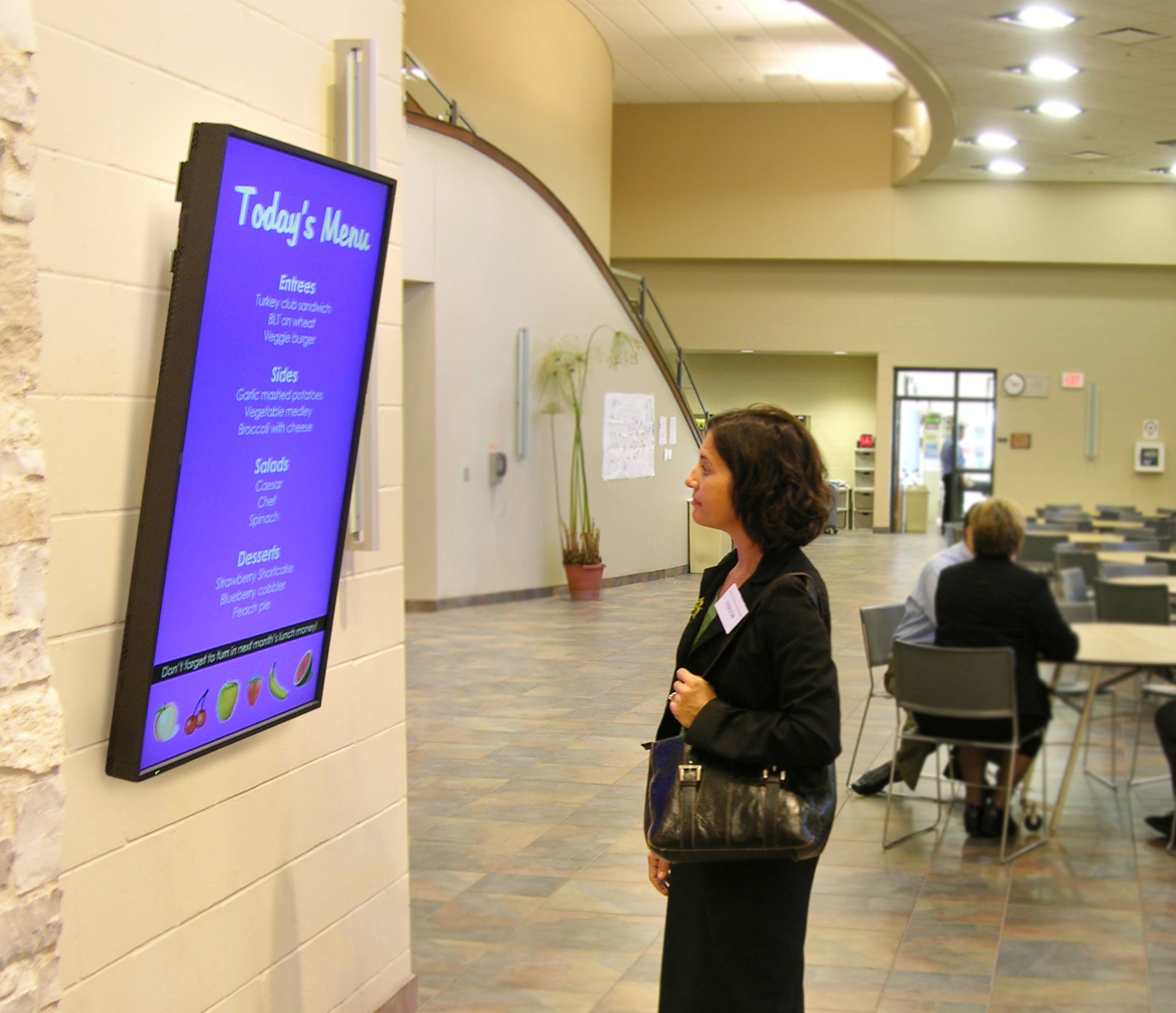

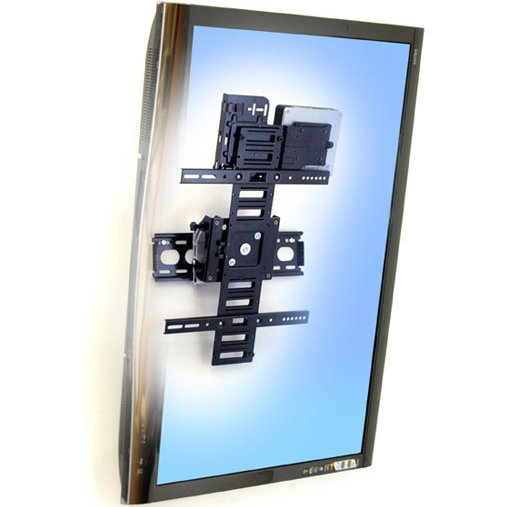

Portrait orientation
Ergotron 60-600-009 SIM90 Digital Signage Integration Mount
Ergotron 60-600-009 SIM90 Digital Signage Integration Mount
Rotation
Rear view
Security
Ergotron 60-600-009 SIM90 Digital Signage Integration Mount

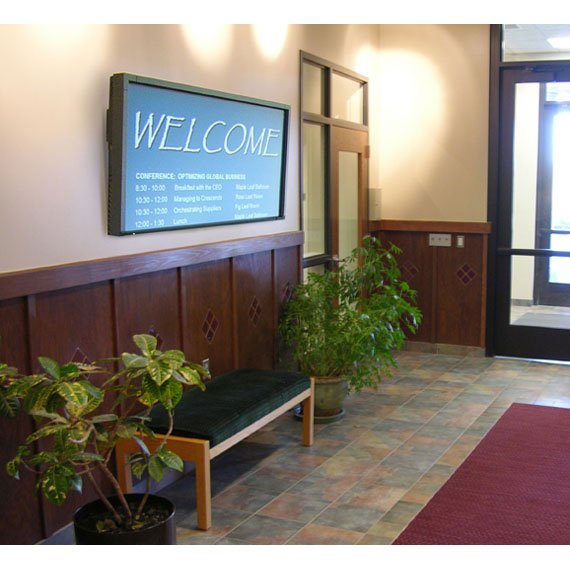

Inused image
Portrait orientation

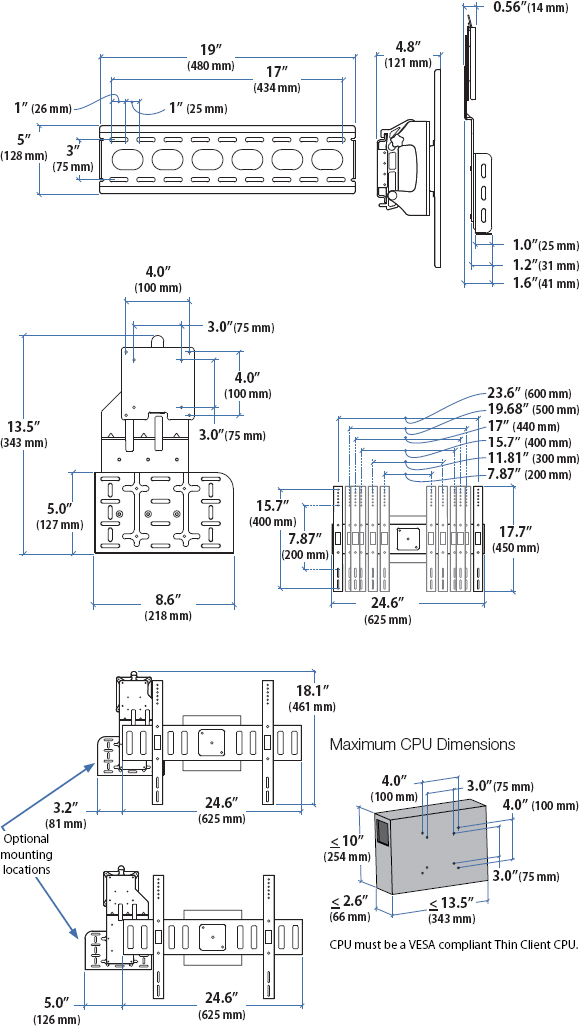

Technical Drawing for Ergotron 60-600-009 SIM90 Digital Signage Integration Mount

Description

Ergotron 60-600-009 is a fully integrated, all-in-one wall mounting system that includes all components for installing large display digital signage solutions; one box, one part number - everything you need including VESA-compliant thin client CPU holder, portrait-to-landscape pivot and fasteners.

Technical Drawing

Technical Drawing for Ergotron 60-600-009 SIM90 Digital Signage Integration Mount

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
32" and larger

Up to 105 lbs

47.6 kg

- 15° - 90° MIS-F

Product Information

Part Number

60-600-009

Description SIM90 Digital Signage Integration Mount (black)
Includes
  • Wall and display brackets

  • Quick-release VESA-CPU mount/power brick bracket

  • Hardware fastener kit

Ideal Ideal for displays with screens size of 32" and larger, and up to 105 lbs (47.6 kg). Total weight capacity is 115 lbs (52.2 kg): 105 lbs (47.6 kg) for display, 7 lbs (3.2 kg) for CPU, 3 lbs (1.4 kg) for cables and power brick
Tilt Smooth continuous display tilt range from 0° to 15° forward; Tilt range may be restricted when displays are in portrait mode
Rotation Easily rotate display to either a portrait or landscape orientation without removing the display
Mounting Hole Patterns Horizontal measurement = 200 mm, 300 mm, 400 mm, 440 mm, 500 mm or 600 mm. Vertical measurement = 200 mm or 225 mm–400 mm. With optional 800 mm Accessory Kit (97-489, ordered separately), horizontal measurement can be expanded to 800 mm or 660 mm
Portrait or Landscape Orientation Portrait or landscape orientation may be dependant on content software or graphic card capabilities
Digital Signage Complete wall mount solution for digital signage applications
Thin Client CPU Easily attaches VESA-compliant (75/100 mm) thin client CPU: CPU must have either 75 x 75 mm or 100 x 100 mm mounting holes on one side
Maximum CPU Size Maximum CPU size (W x H x D) = 13.5" x 10" x 2.6" (34.3 x 25.4 x 6.6 cm), up to 7 lbs (3.2 kg). Power brick maximum weight = 3 lbs (1.4 kg)
Mounting Options Includes hardware for mounting to wood studs (16" centered studs) or concrete wall surfaces
Includes Screws to secure display for theft deterrence
Display Can be positioned at different points on the wall bracket; this lateral shift of the display’s position relative to the wall studs can be as much as 5.7" (14.5 cm)
Profile off the Wall 4.8" (12 cm)
Note Portrait orientation is not recommended for some plasma displays. Contact display manufacturer if you have questions regarding your plasma’s portrait-mode capability (this is not an issue with LCD technology)
Shipping Dimensions 13.25"W x 12"H x 28.5"D (33.7 x 30.5 x 72.4 cm)
Shipping Weight 24 lbs (11 kg)
Warranty Five (5) years

Benefits

  • Complete, fully integrated, all-in-one mounting system includes all components for installing large display digital signage solutions

  • Simplifies digital signage installation with preassembled components; no need for additional equipment

  • Flexible deployment options to accommodate your digital signage messaging and space requirements; portrait-to-landscape orientation, scalable for future hardware refreshes

  • Easy, do-it-yourself portrait or landscape adjustment - no need to reinstall display; knobs are available for locking tilt orientation in place

  • Security fasteners deter theft to protect your investment

  • Conveniently attaches VESA-compliant (75 x 75 or 100 x 100 mm) thin client CPU to the back of the display

  • Single SKU design fits most screens from 32" and larger up to 105 lbs (47.6 kg)

  • Cable management system conceals and organize cables

  • Patented Constant Force motion technology

Model 60-600-009
Manufacturer Ergotron
Part Number 60-600-009
UPC 698833011203
Weight lb(s)
Color Black
Monitor Size From 32" and larger
Weight Capacity Total weight capacity is 115 lbs (52.2 kg): 105 lbs (47.6 kg) for display, 7 lbs (3.2 kg) for CPU, 3 lbs (1.4 kg) for cables and power brick
Tilt 15 degree
Rotation 90 degree
Mounting Pattern Horizontal measurement = 200 mm, 300 mm, 400 mm, 440 mm, 500 mm or 600 mm. Vertical measurement = 200 mm or 225 mm–400 mm. With optional 800 mm Accessory Kit (97-489, ordered separately), horizontal measurement can be expanded to 800 mm or 660 mm
CPU Dimension Maximum CPU size (W x H x D) = 13.5" x 10" x 2.6" (34.3 x 25.4 x 6.6 cm), up to 7 lbs (3.2 kg). Power brick maximum weight = 3 lbs (1.4 kg)
Mounting Options Wall
Profile off the Wall 4.8" (12 cm)
Shipping Dimensions 13.25"W x 12"H x 28.5"D (33.7 x 30.5 x 72.4 cm)
Shipping Weight 24 lbs (11 kg)
Warranty Five (5) years
