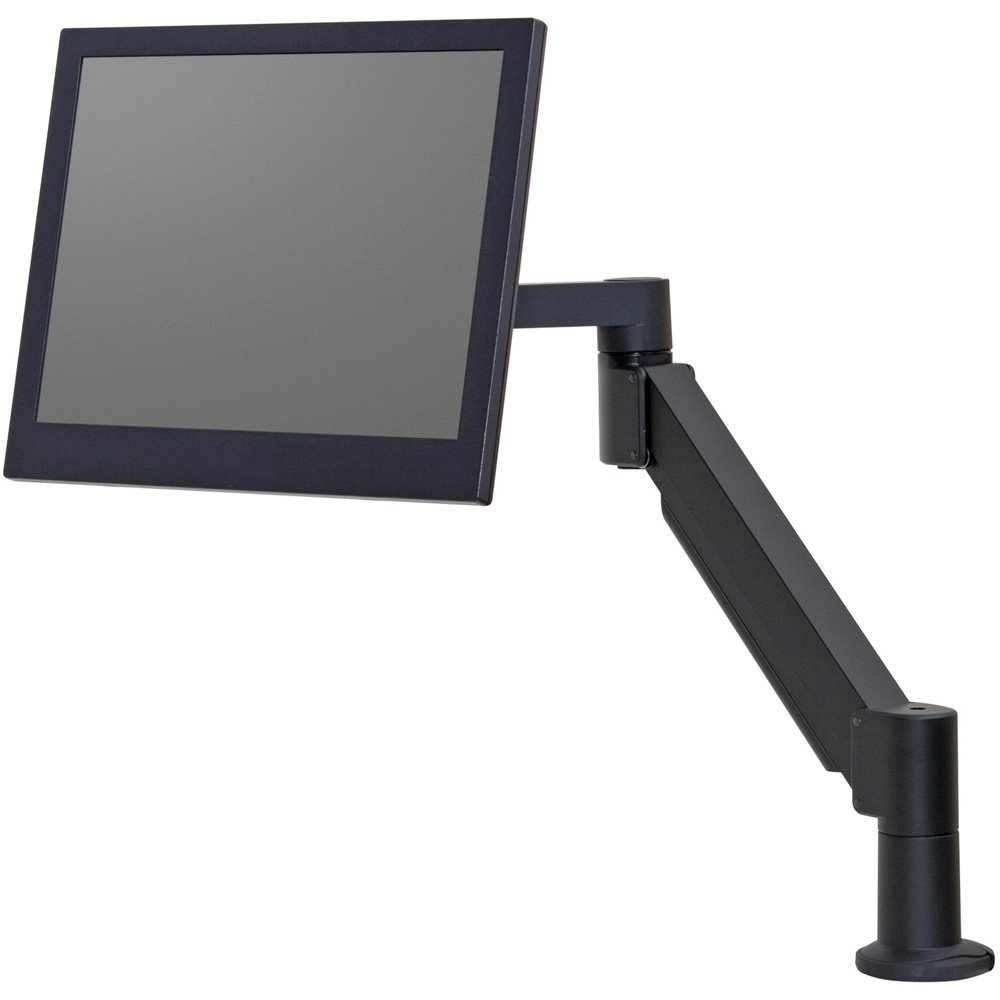

Ergotech 7Flex-CN-104 Monitor Arm
Description
Ergotech 7Flex LCD Arm will change the way you work. The arm suspends your flat panel above your desk, allowing you to quickly re-position the monitor with just one hand. Simply move the monitor to where you need it. The arm eliminates the monitor footprint on your desk - reclaim your desk, even as you work in greater ergonomic comfort.
7Flex is a value product - with incredible flexibility and versatility at an attractive price.
Please note this monitor arm was updated in January 2022. The manufacturer, Innovative Design Works, has upgraded this part.
Tilter - A tilter is part of the adjustable monitor arm that attaches to the back of your monitor and allows the monitor to rotate, pivot, and tilt to the desired position. The standard tilter 8336 has been replaced with Next Gen Tilter 8500 in this monitor arm. The new tilter is slim, sleek, and easy to install and release, thanks to its quick-release bracket. It has a weight capacity of 30 lbs and is offered with both 75mm and 100 mm VESA patterns.
 8500 Quick Release Monitor Tilter |  8336 Standard Monitor Tilter |
Technical Drawing
Technical Specifications
| Monitor Screen Size | Up to 32" |
| Horizontal Range, per arm | 23.4" (59.44 cm) |
| Vertical Adjustment | 16" (8" up, 8" down) |
| Rotation | 360 degrees at three joints |
| Monitor Tilt | Up to 190 degrees |
| Monitor Pivot | Landscape to portrait |
| Monitor Compatibility | Compatible with all VESA monitors - Includes VESA 75mm and 100mm |
| Cable Management | Cables are clipped beneath arm |
| Mounting Options | FLEXmount, Wall, Thru-Desk |
| Monitor Weight, model number | 7 - 17 lbs (2.3 - 7.7 kg) / 7Flex-104i |
Features
- Gas cylinder "floats" monitor above desk - instantly raise and lower monitor
- Extends up to 23.4" (59.44 cm), with 16" (40.6 cm) vertical range and folds up to occupy just 3" (8.9 cm) of space
- VESA-monitor compatible - 75mm and 100mm VESA adapter included. Please call for non-VESA options
- Monitor tilter mechanism can tilt up to 190 degrees
- Rotates 360 degrees at three joints
- Integrated cable management system keeps your work surface free of annoying cable clutter
- Made of sturdy cast aluminum
- Optional 6" extender tube available to raise monitor (see Extender Tubes under Available Accessories)
| Model | 7Flex-CN-104 |
| Manufacturer | Ergotech |
| Part Number | 7Flex-CN-104 |
| UPC | 814595020462 |
| Weight | lb(s) |
| Mounting Options | Desk, Wall, Thru-Desk, Grommet, Reverse Wall, Side Bolt |
| Monitor Arm Types | 1 Monitor |
| Color | Vista Black |
| Vertical Range | +/- 8 |
| Horizontal Range | 23.4 |
| Rotation | At three joints 360 degree |
| Tilt | 190 degree |
| Weight Capacity | 7 - 17 lbs (2.3 - 7.7 kg) |
| Number of Monitors | 1 Monitor |
| Screen Size | Up to 32 in |
| Number of Monitors | 1 Monitor |
| Price | $100 - $199 |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 1
- 5 stars 5
by Marc L, Folsom, California, Feb 19, 2019
Very good product. Provides great flexibility on monitor positioning. Very easy to set up. Customizable adjustments for ease of movement provides an advantage over most other monitor arms. This arm replaced another cheaper one that was only one month old and hard to position.
by Seth C, Indiana, May 01, 2018
Well made product
by Lana Y, California, Jul 08, 2016
easy to install and fit our need
by Rob, Massachusetts, Apr 21, 2016
2nd time purchasing addition mounts !
by Rob, Massachusetts, Dec 21, 2015
Very Strong Mount, not for products around 3lb weight, 5lb or more. Only reason for 4 rather than 5 starts, is that the two small set screws made to hold at the upper and lower pivot can be stripped fairly easily if to much force is used. But great product other than that,
by Michael T, Virginia, Aug 12, 2015
Although this arm did everything that it claimed, it did not work for my application. It was made to hold a somewhat heavy monitor. I was trying to use it to hold a camera. My camera did not weigh enough to make it hold in place. I need an arm that can work with a 1-5 pound rating. We made a special camera mount adapter, but we could not make the weight workout. Even when we turned the setting to the lightest weight setting it would not work, it would not stay down. Not a problem with your arm, I could not fault your arm, I can only fault my usage of your arm. Do you by any chance have this same arm, but with a lower weight setting piston spring actuator?
