Chief PACCC1 Center Channel Speaker Adapter (30-50")
Description

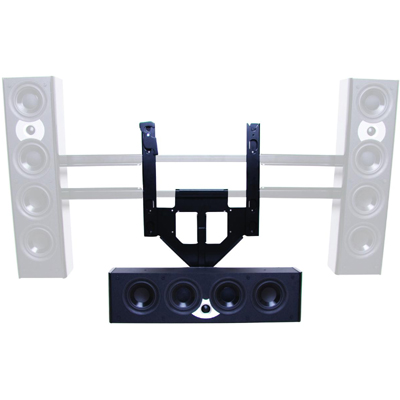

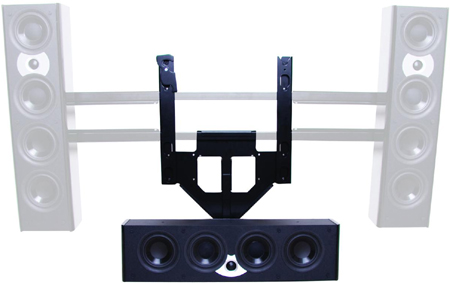

Chief PACCC1 allows easy integration of center channel speakers with Chief flat panel mounting solutions.

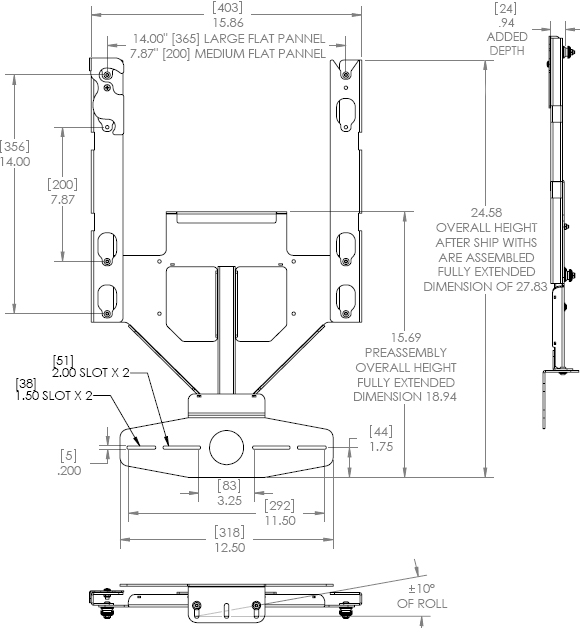

Technical Drawing
Specifications
|
Color |
Black |
|
Equipment Weight Capacity |
35 lbs (15.9kg) |
|
Notes |
TAA Compliant |
|
Overall Dimensions (H x W x D) |
27.8" x 15.9" x 0.9" (707 x 403 x 24mm) |
|
Shipping Weight |
10.00 lbs |
|
TV Height Range |
15 - 18.2" (381 - 462mm) from center of TV to center of speaker |
|
Typical Screen Sizes |
30 - 50" |
Features
- Comes mostly assembled for faster installation
- Provides up to 5" (127 mm) height adjustment to accommodate varied speaker heights
- Fore/aft adjustment to level speaker with front of flat panel
- Height adjustment of 3.25" (83 mm) to level speakers
- TAA Compliant
- Compatible with: PNR, PDR, PIW, PWR, MIW, MWR, MWH, PCS, MCS, PFC, PF1, MFC, MF1, FSRV & FTRV
Product Options/Accessories
| Model | PACCC1 |
| Manufacturer | Chief Mounts |
| Part Number | PACCC1 |
| UPC | 841872107813 |
| Mounting Options | Wall |
| Color | Black |
| Weight Capacity | 35 lbs (15.9kg) |
| Overall Dimensions | 27.8" x 15.9" x 0.9" (707 x 403 x 24mm) |
| Shipping Weight | 10 lbs |
| TV Height Range | 15 - 18.2" (381 - 462mm) from center of TV to center of speaker |
| Screen Size | 30 - 50 in |
