Chief MAC119B MWR/PWR Metal Stud Accessory
Description

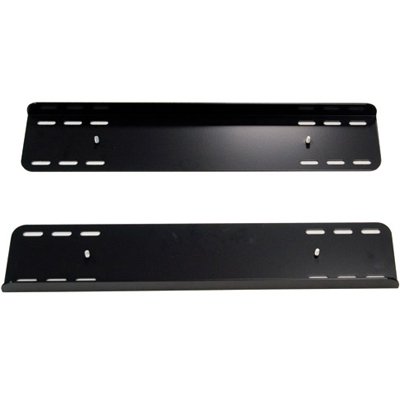

Chief MAC119B steel stud adapter can be used with a swing arm wall mount (such as PWR or MWR) to provide a solid solution for steel stud installations.

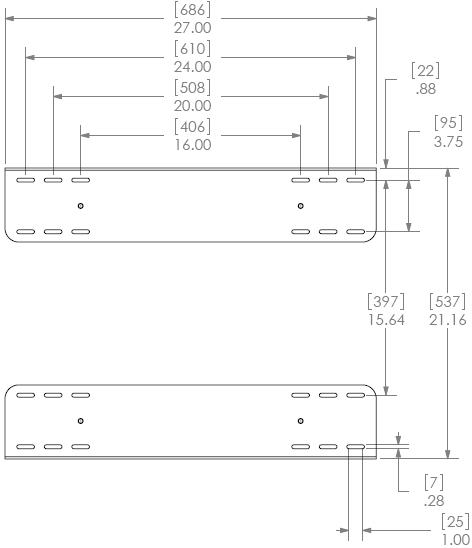

Technical Drawing
Specifications
|
Color |
Black |
|
Equipment Weight Capacity |
100 lbs (45.4kg) |
|
Overall Dimensions (H x W x D) |
5.4" x 27.0" x 1.5" (137 x 686 x 38mm) |
|
Shipping Weight |
17.00 lbs |
Features
- Attaches directly to 16"/20"/24" center steel studs
- Includes all mounting hardware
- Low profile, only adds 0.13” (3 mm) to installation depth
Product Options/Accessories
| Model | MAC119B |
| Manufacturer | Chief Mounts |
| Part Number | MAC119B |
| UPC | 841872104034 |
| Color | Black |
| Weight Capacity | 100 lbs (45.4kg) |
| Overall Dimensions | 5.4" x 27.0" x 1.5" (137 x 686 x 38mm) |
| Shipping Weight | 17.00 lbs |
