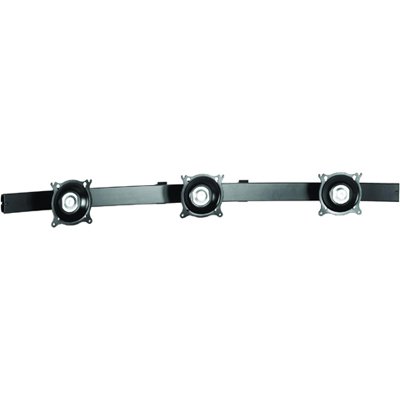

Chief KTA325B Widescreen Triple Monitor Pole Clamp (3x25")
Related Products
| Part Number | Description |
|---|---|
| KTA325B | Black 54" (137.2 cm) Triple Horizontal Array Pole Clamp for Widescreen Monitors |
| KTA325S | Silver 54" (137.2 cm) Triple Horizontal Array Pole Clamp for Widescreen Monitors |
Description
With Chief KTA325, you can view three widescreen monitors side-by-side on a pole or other KTA product.

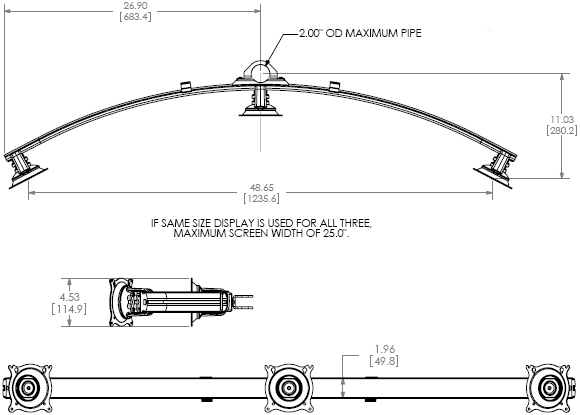

Technical Drawing
Specifications
| Color | Black and Silver |
| Mounting Pattern Compatibility (Universal Versions) | 75 x 75mm, 100 x 100mm |
| Notes | Weight capacity is per monitor |
| Overall Dimensions (H x W x D) | 4.5" x 53.2" x 12.5" (115 x 1351 x 318mm) |
| Shipping Weight | 14.80 lbs |
| Solution Type | Universal |
| TV Width Range | 10 - 25" (254 - 635mm) |
| Maximum Screen Width | 25" (635 mm). When using different screen sizes, total width of center screen and one side screen cannot exceed 50" |
| Weight Capacity | 30 lbs (13.6kg) per monitor |
Features
- Easy pole mounting
- Specify black or silver when ordering
Display Adjustment
These pivot arrays allow horizontal, pitch, roll and yaw adjustment of each display with a maximum pitch range of 15 degree up and 15 degree down. These pivot arrays also allow a full 360 degree of display roll.

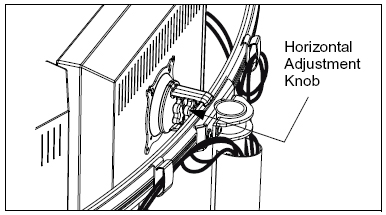

Display Horizontal Position Adjustment:
To adjust display horizontal position:
- Loosen Centris bracket rear adjustment knob. (See Figure below)
- Slide Centris bracket with display left or right until properly positioned on array rail
- Tighten Centris bracket rear adjustment knob
| Model | KTA325B |
| Manufacturer | Chief Mounts |
| Part Number | KTA325B |
| UPC | 841872117492 |
| Monitor Arm Types | 3 Monitors |
| Color | Black and Silver |
| Mounting Pattern | 75 x 75mm, 100 x 100mm |
| Overall Dimensions | 4.5" x 53.2" x 12.5" (115 x 1351 x 318mm) |
| Shipping Weight | 14.80 lbs |
| TV Width Range | 10 - 25" (254 - 635mm) |
| Weight Capacity | 30 lbs (13.6kg) per monitor |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 0
Warranty
With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.
Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
