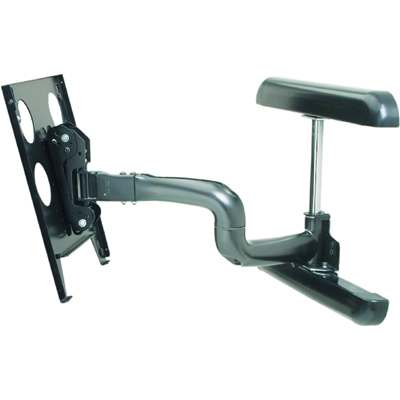

Chief PWRUB Large Swing Arm Wall Mount - 25" Extension
Description
Chief PWRUB allows for viewing flexibility when installing a flat panel display. A great display mount for corporate and home entertainment applications. Standard solutions are for 16" on center wood stud walls. Additional versions available for metal studs and in-wall applications.

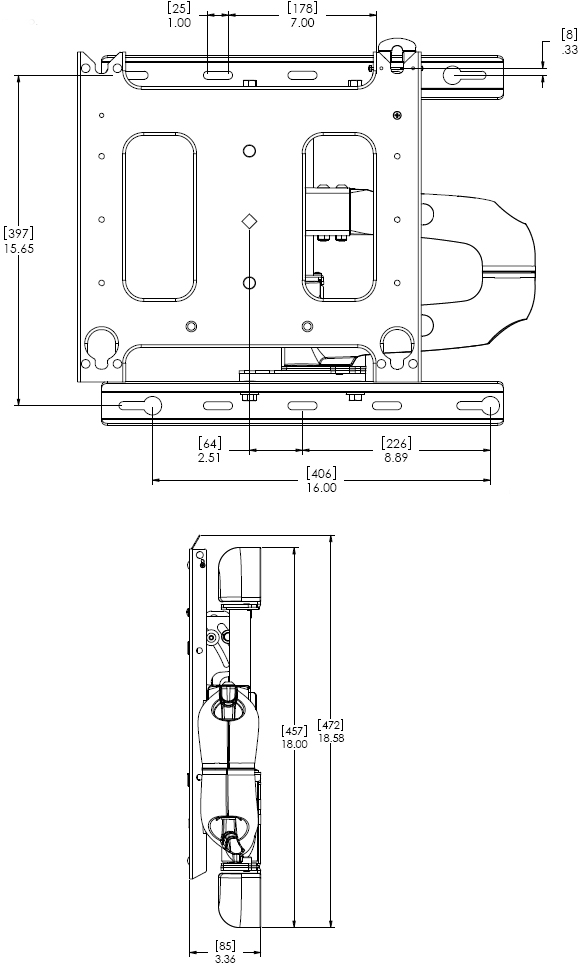

Technical Drawing
Specifications
|
Color |
Black |
|
Lateral Shift |
12" (304.8mm) |
|
Maximum Extension |
24.88" (632.mm) |
|
Minimum Depth |
3.38" (85.9mm) |
|
Mounting Pattern Compatibility (Universal Versions) |
200 x 200mm - 862 x 517mm |
|
Notes |
Depth and Extension do not include interface bracket (adds 0.5 - 1.5") |
|
Orientation |
Landscape, Portrait |
|
Overall Dimensions (H x W x D) |
18.0" x 23.6" x 3.4" (457 x 600 x 87mm) |
|
Post-Installation Leveling (Roll) |
Yes |
|
Shipping Weight |
50.00 lbs |
|
Solution Type |
Universal |
|
Tilt |
+ 5°, - 15° |
|
Typical Screen Sizes |
32 - 65" |
|
Wall Stud Compatibility (inches) |
16" |
|
Weight Capacity |
125 lbs (56.7kg) |
Features
- Extends 24.88" from wall and remains low profile in the home position
- Q-Latch Mounting System secures flat panel to mount with a latching flag
- Integrated lateral shift 6" left and right (ships shifted 2.5" to the left)
- Centris Technology provides fingertip tilt adjustments
- Mounting guides provided for a hassle-free installation
- Provides positive latch in home position to keep screen tight to wall
- CableTrac System provides a fast and effective way to route cables
- Swivel up to 90° left or right (depending upon screen size)
- Screen can be installed in portrait or landscape orientation (PAC400 accessory can be used to rotate without removing the screen)
Product Options/Accessories
| Model | PWRUB |
| Manufacturer | Chief Mounts |
| Part Number | PWRUB |
| UPC | 841872051581 |
| Weight | lb(s) |
| Color | Black |
| Lateral Shift | 12" (304.8mm) |
| Maximum Extension | 24.88" (632.mm) |
| Minimum Depth | 3.38" (85.9mm) |
| Mounting Pattern | 200 x 200mm - 862 x 517mm |
| Overall Dimensions | 18.0" x 23.6" x 3.4" (457 x 600 x 86mm) |
| Shipping Weight | 50.00 lbs |
| Tilt | + 5, - 15 degree |
| Monitor Size | 37 - 55" |
| Wall Stud | 16" |
| Weight Capacity | 125 lbs (56.7kg) |
| Mounting Options | Wall |
