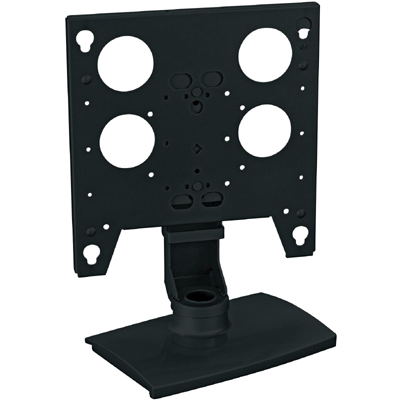

Chief PSSUB Large Flat Panel Swivel Table Stand - Black
Description
Chief PSSUB provides a wide variety of features for most tabletop installations of large flat panel TVs.
Stylish solution for residential, commercial and business applications
View/download base stand template by clicking on the CAD drawing in the downloads tab

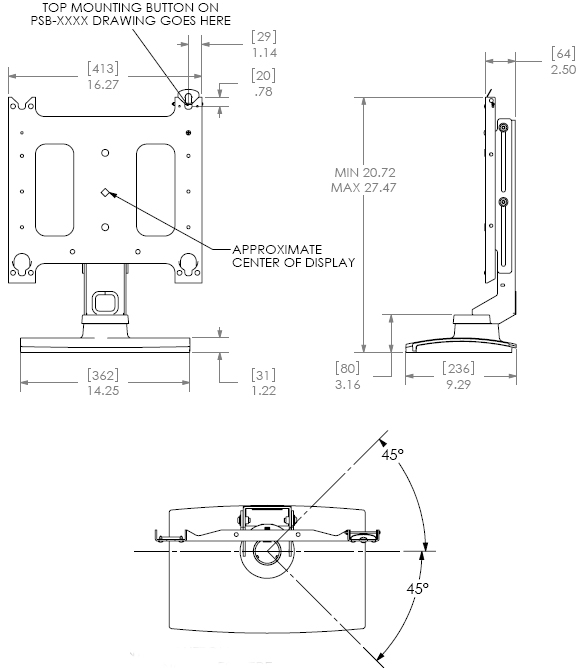

Technical Drawing
Specifications
|
Color |
Black |
|
Manual Height Adjustment |
6.5" |
|
Mounting Method |
Free Standing and Bolt-down |
|
Mounting Pattern Compatibility (Universal Versions) |
200 x 200mm - 862 x 517mm |
|
Orientation |
Landscape |
|
Overall Dimensions (H x W x D) |
20.7" x 16.3" x 9.3" (526 x 413 x 236mm) |
|
Pivot (numerical value) |
Yes, up to 45° in either direction with optional stops at 15°, 25° and 35° |
|
Post-Installation Leveling (Roll) |
Yes |
|
Shipping Weight |
43.00 lbs |
|
Solution Type |
Universal |
|
TV Height Range |
15 - 32" (381 - 813mm) |
|
Typical Screen Sizes |
32 - 50" |
|
Weight Capacity |
150 lbs (68.kg) |
Features
- Smooth swivel with optional stops
- Exclusive ClickConnect mounting system provides simplified tool-less latching with an audible click
- Free standing with bolt down capability for permanent installations or security
- Infinite height adjustment of 5" (127 mm) to allow for different screen heights up to 32" (81.28 cm)
- Two cable management options for ease of installation
- Smooth finger-tip swivel up to 45° in either direction with optional stops at 15°, 25° and 35°
- PSSUB universal version available which includes universal PSBUB interface. PSS2000B is available but must order PSS2000B and PSBXXXX custom or universal interface separately
Product Options/Accessories
| Model | PSSUB |
| Manufacturer | Chief Mounts |
| Part Number | PSSUB |
| UPC | 841872070346 |
| Weight | lb(s) |
| Mounting Options | Desk Stand |
| Color | Black |
| Manual Height Adjustment | 6.5" |
| Mounting Pattern | 200 x 200mm - 862 x 517mm |
| Overall Dimensions | 20.7" x 16.3" x 9.3" (526 x 413 x 236mm) |
| Shipping Weight | 43.00 lbs |
| TV Height Range | 15 - 32" (381 - 813mm) |
| Monitor Size | 32 - 50" |
| Weight Capacity | 150 lbs (68.kg) |
