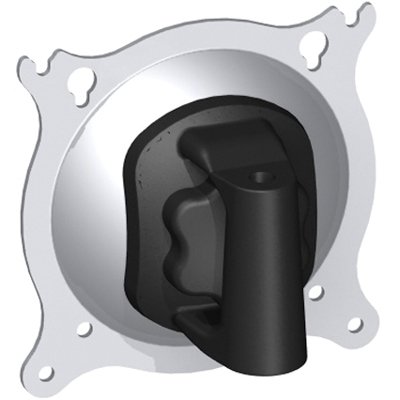

Chief KSA1019B Centris Turntite Head Accessory
Description
Chief KSA1019 Turn-tite Head Accessory provides external tilt and roll friction adjustment.

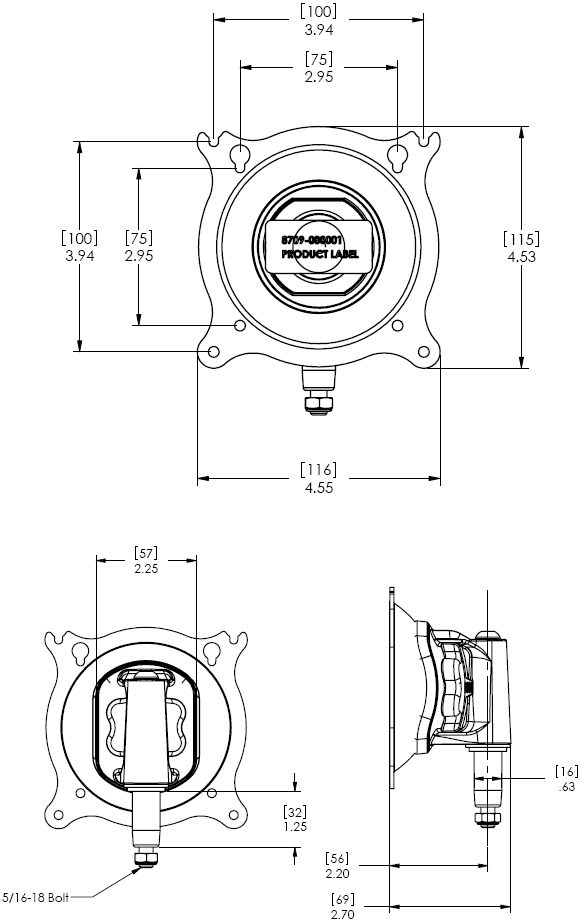

Technical Drawing
Specifications
| Certifications | TAA Compliant |
| Color | Black |
| Equipment Weight Capacity | 40 lbs (18.1kg) |
| Mounting Pattern Compatibility (Universal Versions) | 75 x 75mm, 100 x 100mm |
| Overall Dimensions (H x W x D) | 4.5" x 4.5" x 2.7" (115 x 115 x 69mm) |
| Notes | 15 degrees of rotation |
| Shipping Weight | 1.6 lbs (0.73 kg) |
| Solution Type | Universal |
Features
Allows 15º of rotation
Centris Technology for fingertip screen placement
External tilt control for optimizing screen movement
Perfect fit for touchscreen applications when users want to lock the tilt
Compatible with any Chief K-series monitor product
TAA Compliant
Product Options/Accessories
| Model | KSA1019B |
| Manufacturer | Chief Mounts |
| Part Number | KSA1019B |
| UPC | 841872108476 |
| Weight | lb(s) |
| Color | Black |
| Weight Capacity | 40 lbs (18.1 kg) |
| Mounting Pattern | 75 x 75mm, 100 x 100mm |
| Rotation | 15 degree |
| Overall Dimensions | 4.5" x 4.5" x 2.7" (115 x 115 x 69mm) |
| Shipping Weight | 1.6 lbs (0.73 kg) |
