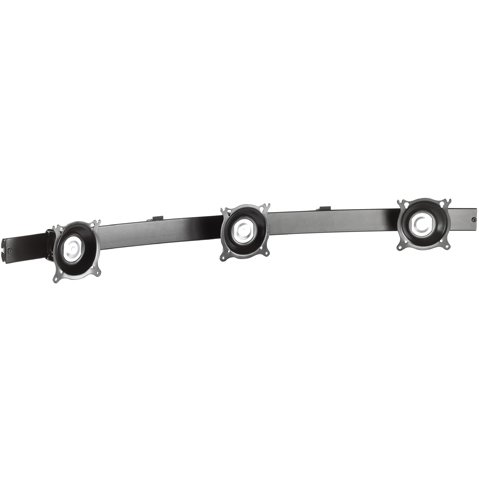

Chief Triple Horizontal Monitor Accessory KMA320B
42" Horizontal Array
Description
Chief KMA320 accessory allows you to view three flat panel screens side-by-side with a pivot or swing arm wall or desk mount.

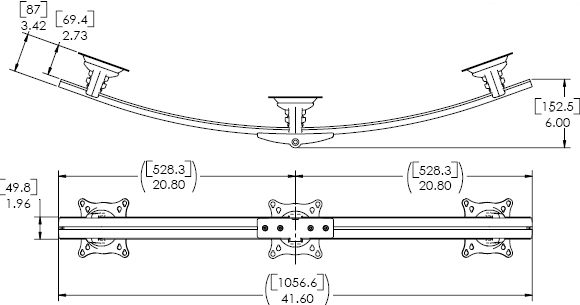

Technical Drawing
Specifications
| Color | Black |
| Overall Dimensions (H x W x D) | 5.2" x 41.6" x 8.7" (131 x 1057 x 222mm) |
| Mounting Pattern Compatibility (Universal Versions) | 75 x 75mm, 100 x 100mm |
| Notes | Weight capacity is per monitor, reduces weight capacity of mount by 10lbs |
| Shipping Weight | 13.2 lbs (5.99 kg) |
| Solution Type | Universal |
| TV Width Range | 10 - 18" (254 - 457mm) |
| Weight Capacity | 10 lbs (4.5kg) |
Features
Attach to Chief K-series swing arms or desk mounts to view three flat panel screens sided-by-side
Provides independent screen adjustments
Centris TurnTite Dials lock screen adjustments in place
Available in black only
Compatible for screens with VESA 75 x 75 mm or 100 x 100 mm compliant mounting patterns
Product Options/Accessories
| Model | KMA320B |
| Manufacturer | Chief Mounts |
| Part Number | KMA320B |
| UPC | 841872093116 |
| Weight | lb(s) |
| Color | Black |
| Mounting Pattern | 75 x 75mm, 100 x 100mm |
| Overall Dimensions | 5.2" x 41.6" x 8.7" (131 x 1057 x 222mm) |
| Shipping Weight | 13.2 lbs (5.99 kg) |
| TV Width Range | 10 - 18" (254 - 457mm) |
| Weight Capacity | 10 lbs (4.5kg) per monitor, reduces weight capacity of mount by 10lbs |
