Chief Height Adjustable Metal Stud Wall Mount KWGSK110
Wall Mount LCD Monitor Arm
Description
Chief KWGSK110 easily installs the height-adjustable dual swing arm wall mount to a single steel stud and is great for use in commercial applications.
Ergonomic solution for the home or office, providing excellent adjustability
Folds in close to the wall for a low-profile appearance

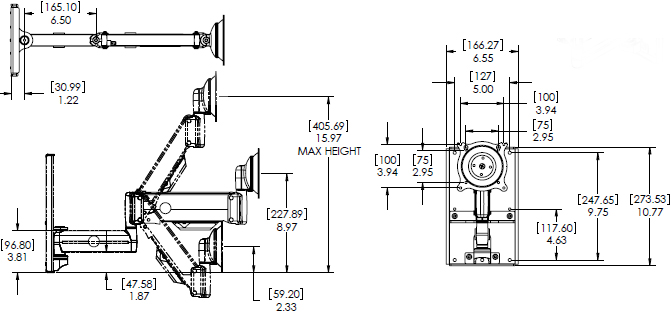

Technical Drawing
Specifications
| Color | Black and Silver |
| Dynamic Height Adjustment | 13.25" |
| Maximum Extension | 19.3" (490.2mm) |
| Minimum Depth | 2.85" (72.4mm) |
| Mounting Pattern Compatibility (Universal Versions) | VESA 75 x 75mm, 100 x 100mm |
| Number of Monitors | 1 |
| Post-Installation Leveling Roll | Yes |
| Shipping Weight | 10.95 lbs (4.97 kg) |
| Solution Type | Universal |
| Tilt | + 15°, - 15° |
| Typical Screen Sizes | 10 - 30" |
| Wall Stud Compatibility In | Single Stud |
| Weight Capacity | 5 - 25 lbs (2.3 - 11.3 kg) |
| Orientation | Landscape, Portrait |
Features
Mounts a height-adjustable dual swing arm to single steel stud
Centris Technology provides smooth, fingertip tilt
Independently adjustable tension at pivot points for customized control
Extends over 19" (483 mm) to achieve the ideal viewing angle
Quick, easy cable management
VESA 75 x 75 mm and 100 x 100 mm compliant (interface brackets available for non-VESA compliant displays)
| Model | KWGSK110B, KWGSK110S |
| Manufacturer | Chief Mounts |
| Part Number | KWGSK110B, KWGSK110S |
| UPC | 841872103877 |
| Weight | lb(s) |
| Color | Black and Silver |
| Dynamic Height Adjustment | 13.25" |
| Maximum Extension | 19.3" (490.2mm) |
| Minimum Depth | 2.85" (72.4mm) |
| Mounting Pattern | 75 x 75mm, 100 x 100mm |
| Overall Dimensions | 11.6" x 6.6" x 2.9" (295 x 166 x 72mm) |
| Shipping Weight | 10.95 lbs (4.97 kg) |
| Tilt | + 15 degree, - 15 degree |
| Screen Size | 10 - 30 in |
| Weight Capacity | 5 - 25 lbs (2.3 - 11.3 kg) |
| Number of Monitors | 1 Monitor |
| Monitor Arm Types | 1 Monitor |
| Mounting Options | Wall |
| Orientation | Landscape, Portrait |
