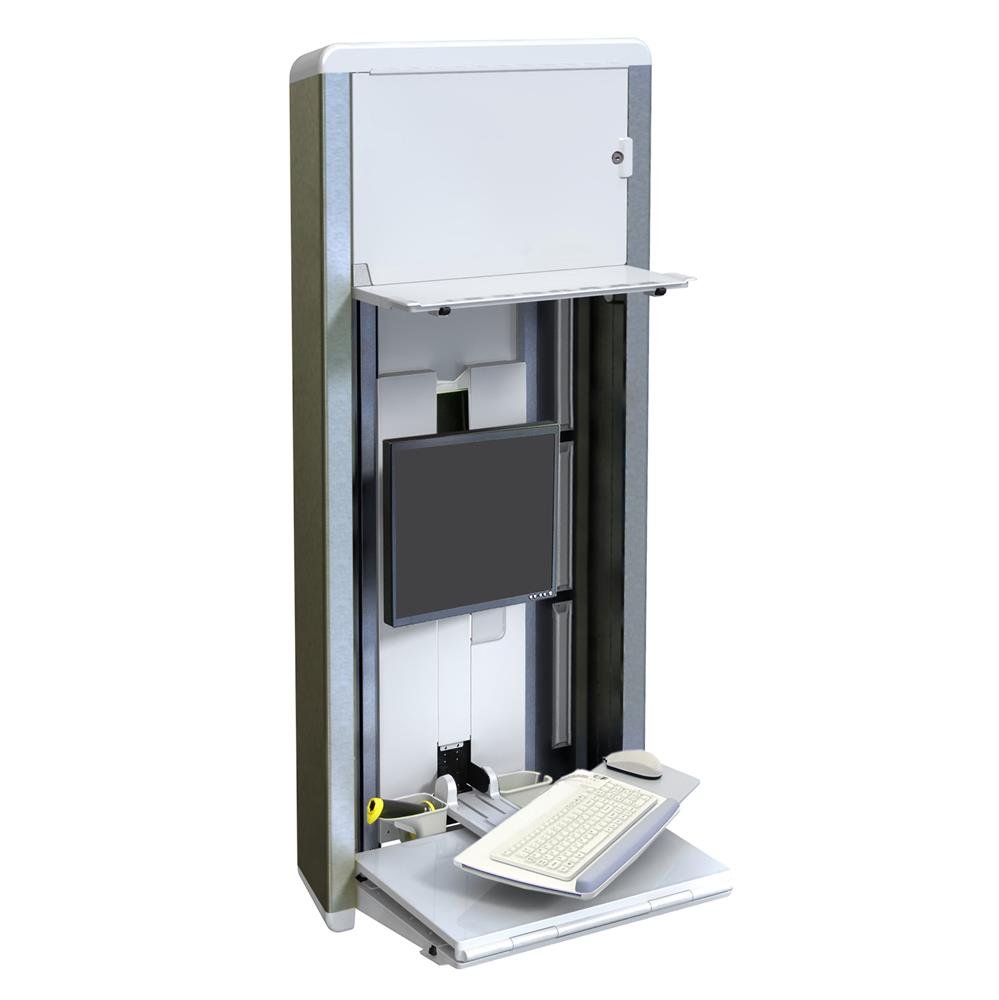

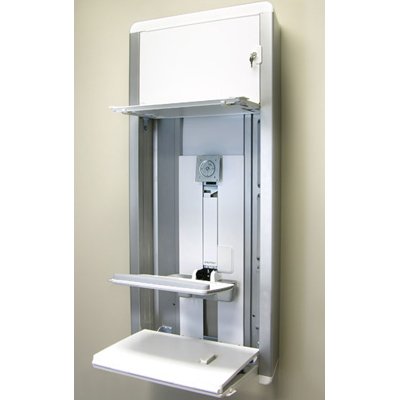

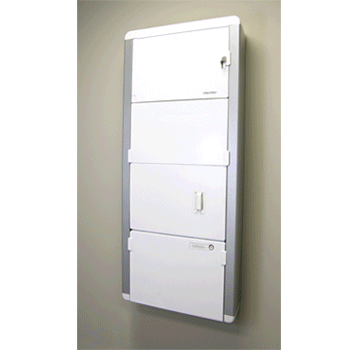

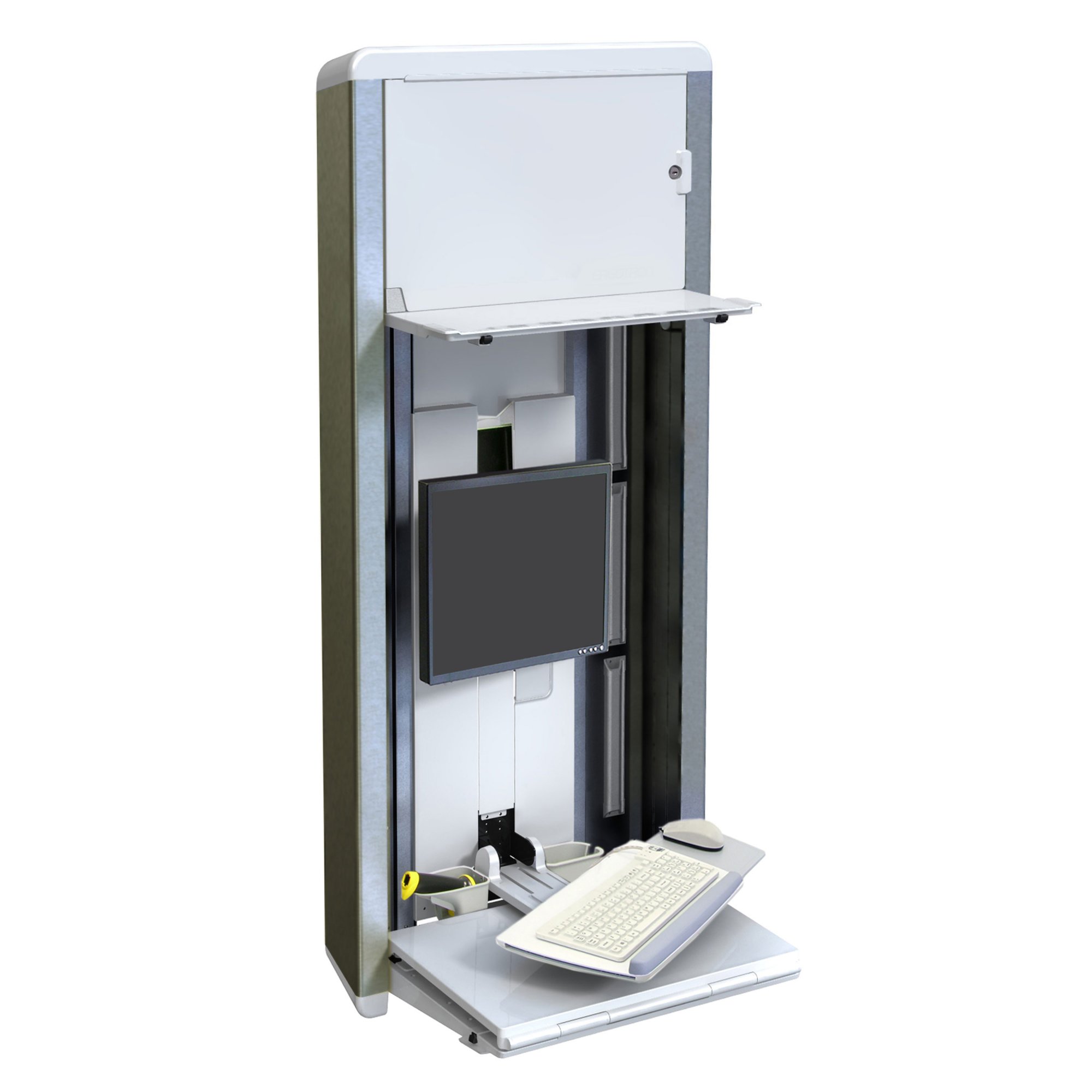

Ergotron 60-595-062 StyleView VL Enclosure

Product ID 15794
Ergotron 60-595-062 StyleView VL Enclosure
Ergotron 60-595-062 StyleView VL Enclosure
Ergotron 60-595-062 StyleView VL Enclosure
Ergotron 60-595-062 StyleView VL Enclosure
Ergotron 60-595-062 StyleView VL Enclosure
Ergotron 60-595-062 StyleView VL Enclosure
Ergotron 60-595-062 StyleView VL Enclosure
Ergotron 60-595-062 StyleView VL Enclosure
Ergotron 60-595-062 StyleView VL Enclosure
Ergotron 60-595-062 StyleView VL Enclosure
Ergotron 60-595-062 StyleView VL Enclosure
Ergotron 60-595-062 StyleView VL Enclosure
Ergotron 60-595-062 StyleView VL Enclosure
Ergotron 60-595-062 StyleView VL Enclosure
Ergotron 60-595-062 StyleView VL Enclosure
Ergotron 60-595-062 StyleView VL Enclosure

Animation of Ergotron 60-595-062 StyleView VL Enclosure

Description

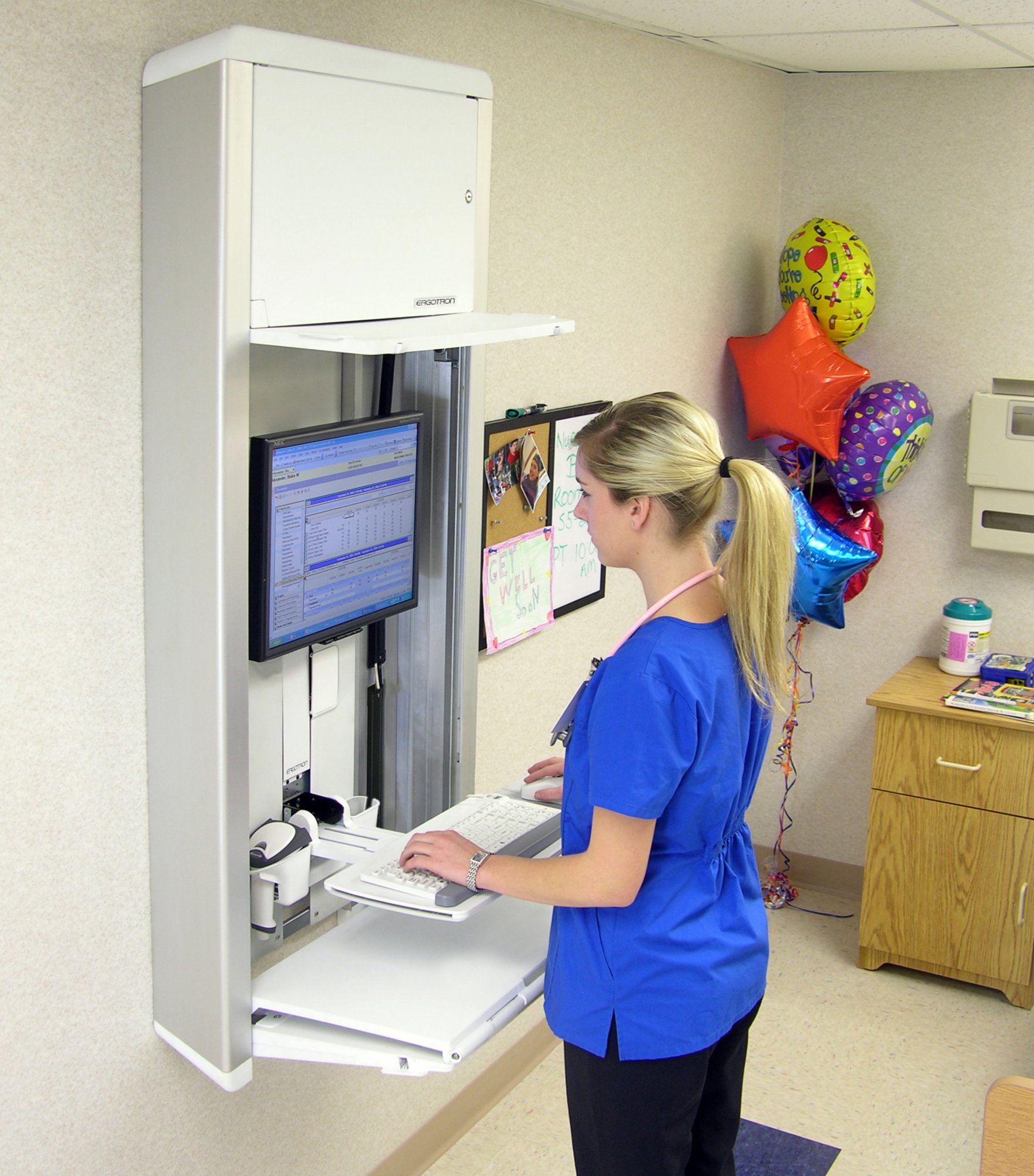

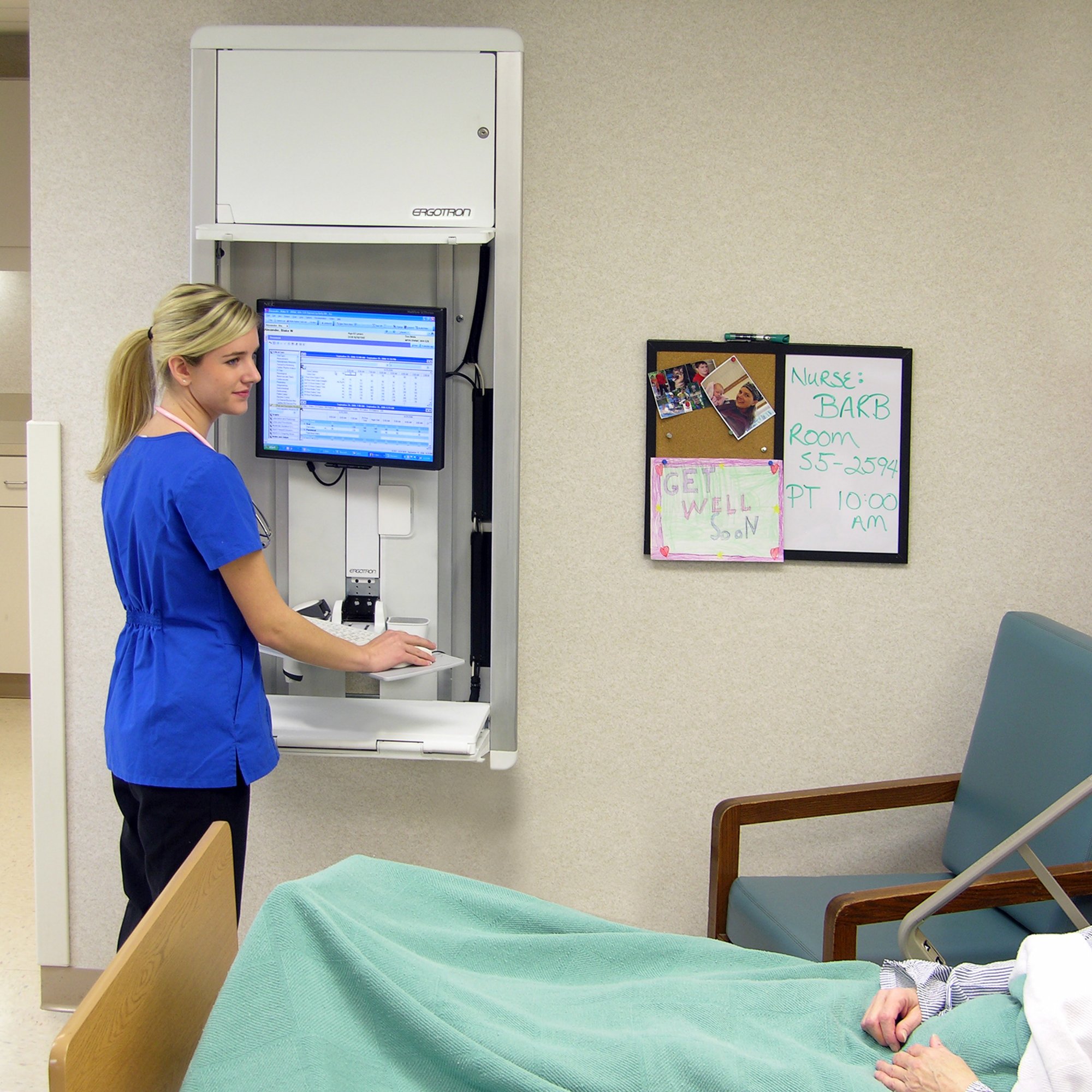

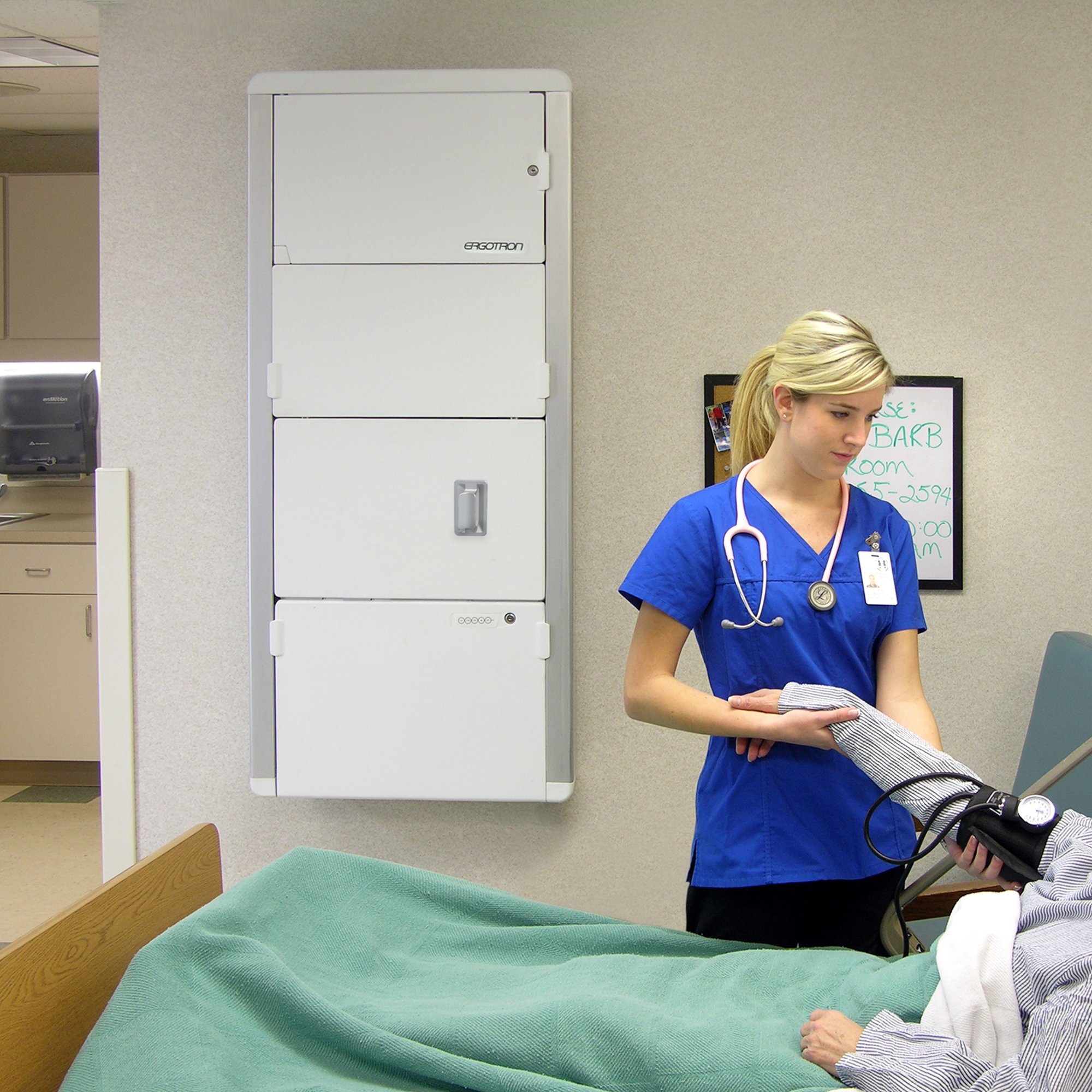

Ergotron 60-595-062 is a secure, complete, compact workstation. Perfect for space-constrained patient rooms, the low profile vertical lift provides 9" (23 cm) of smooth height adjustment and folds into a slim, compact unit when not in use. Its keyless locking mechanism protects patient data for compliance with privacy requirements.

The slide-out, negative-tilt keyboard tray enhances user comfort, and the panning capability of the monitor and keyboard promotes patient-caregiver interaction. A unique cable management system conceals and organizes cords, making cleaning a snap.

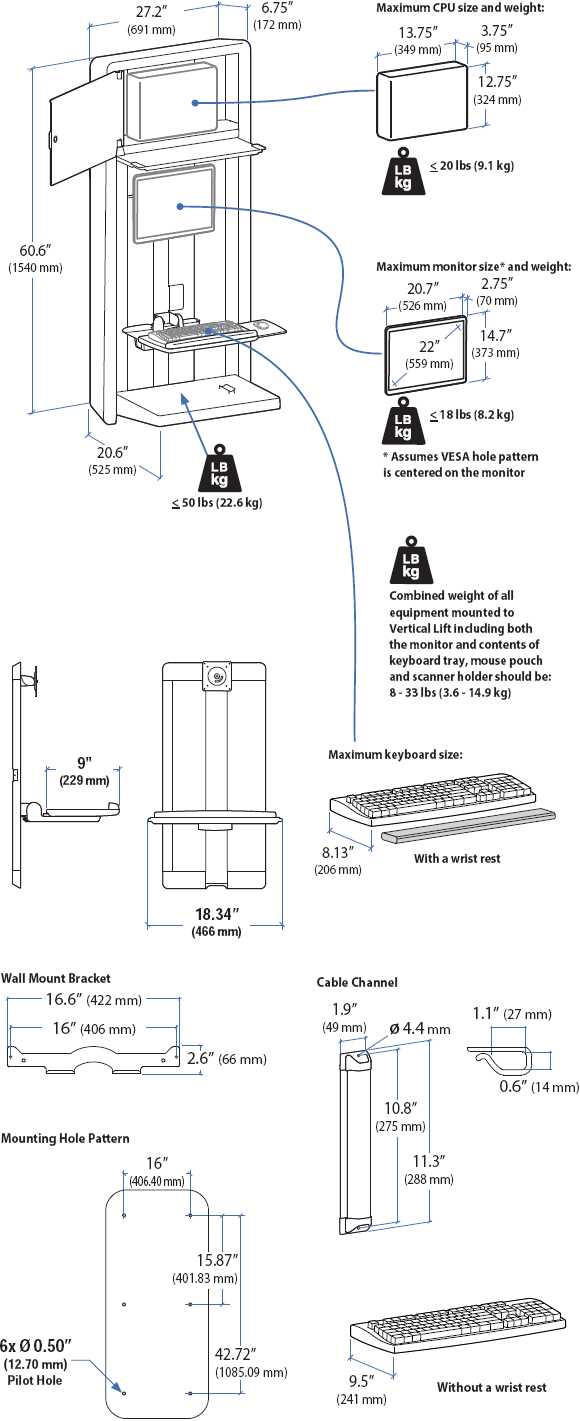

Technical Drawing

Technical Drawing for Ergotron 60-595-062 StyleView VL Enclosure

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 22"

8 - 33 lbs

3.6 - 15.0 kg

9"

22.9 cm

- 10° - MIS-D

Product Information

Part Number 60-595-062
Description StyleView VL Enclosure (white and aluminum)
Includes
  • Wall plate

  • Mounting template

  • Enclosure

  • Vertical lift

  • Slide-out keyboard tray

  • Wrist rest

  • Mouse pouch

  • Scanner holder

  • Internal cable management

  • Batteries

  • Monitor mounting hardware

  • Wall mounting hardware

  • Keys

Installation Easy 4-step installation: 1. Attach wall plate using template; 2. Hang enclosure; 3. Install computer; 4. Set keyless security code
Weight Capacity Listed weight capacity represents total load on Vertical Lift engine, including the monitor and contents of keyboard tray, mouse pouch and scanner holder. Maximum load capacity: monitor pivot = 18 lbs (8.2 kg); CPU compartment = 20 lbs ( 9.1 kg); door/worksurface = 50 lbs (22.6 kg)
Pans Monitor pans left/right ±5° (based on typical 17" monitor; will vary with monitor size)
Vertical Adjustment Nine inches (229 mm) of vertical adjustment ergonomically accommodates user heights ranging from the 5% female height to the average male height
Mouse Tray Slide-out mouse tray includes built-in pad surface
Keyboard Tray
  • Negative-tilt keyboard tray is adjustable 0° to -10°; folds up flat when stored

  • Keyboard tray pans left/right up to 120°

Mouse and Scanner Holder Integrated mouse and scanner holders
Cable Access Cable access openings allow cables to pass through top and bottom of enclosure

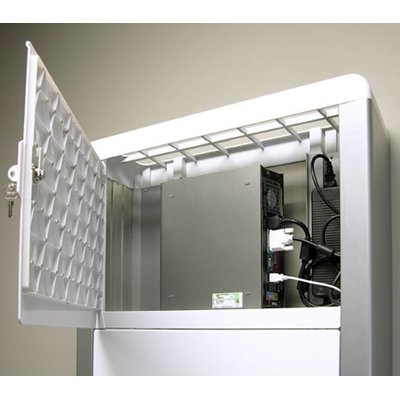

CPU Compartment CPU compartment is top-vented for maximum CPU heat dissipation
Open-back Design Open-back design allows wall outlets and other ports to be contained within boundary of enclosure
Accommodates Accommodates most small form factor and ultra small form factor CPUs
Maximum CPU Physical Dimensions 13.75" W x 12.75" H x 3.75" D (34.9 x 32.4 x 9.5 cm)
Maximum Monitor Physical Dimensions 20.7" W x 14.7" H x 2.75" D (52.6 x 37.3 x 7.0 cm)
Mounting Standards VESA FDMI, MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
VESA Hole Pattern VESA hole pattern should be on center on back of monitor
Plastic/Polycarbonate Components Plastic/polycarbonate components are compliant with the surface flame spread and smoke development requirements from the NFPA 101 Life Safety Code interior wall finish requirements
Product Dimensions 60.6" x 27.2" x 6.75" (closed) or 20.6" (open) (154 x 69 x 17 or 53 cm)
Shipping Dimensions 65" x 31" x 11.5" (1651 x 787 x 292 mm)
Shipping Weight 97 lbs (44.1 kg)
Warranty Five (5) years; One (1)-year warranty on all electronic components (excludes AA batteries)

Benefits

Secure Equipment and Patient Data

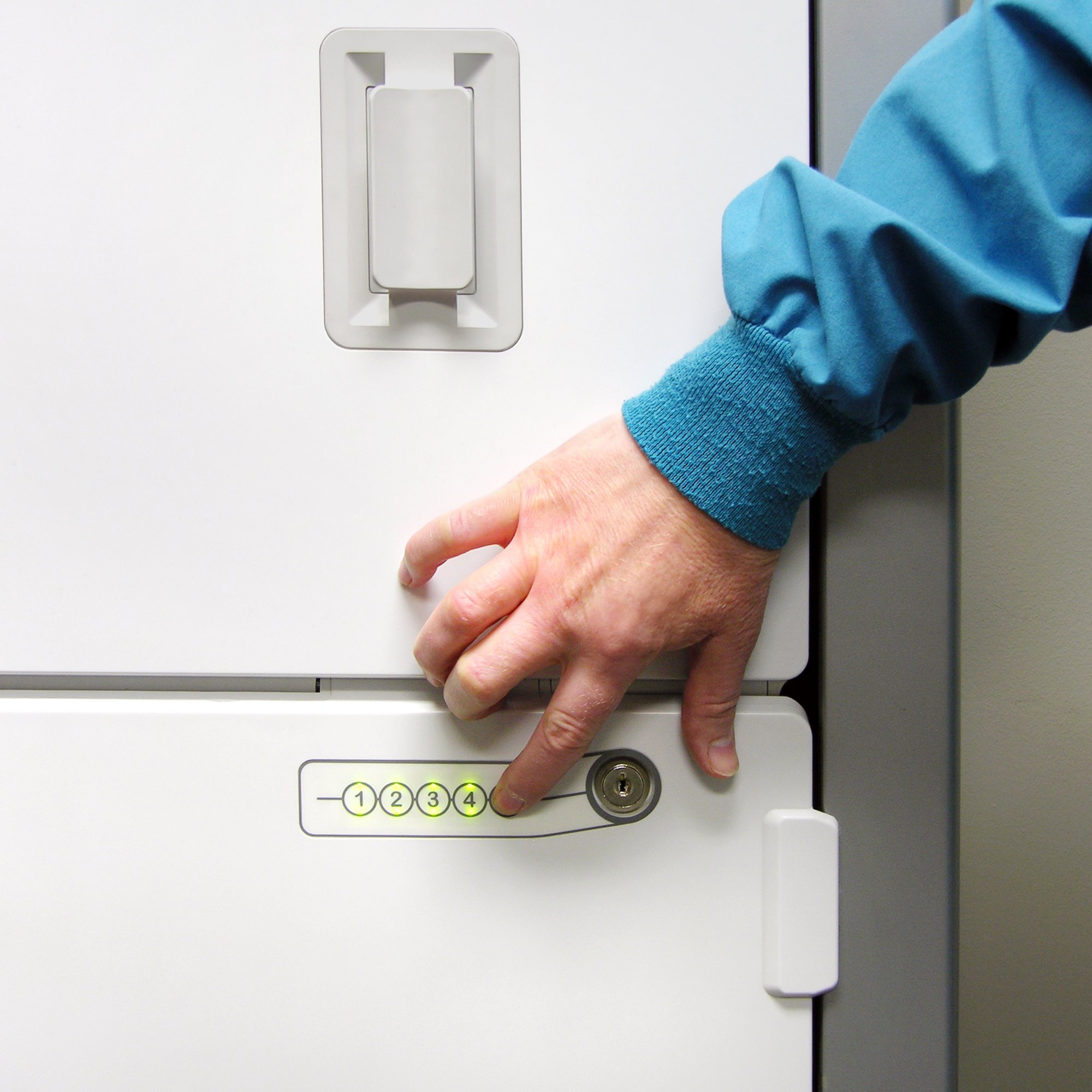

  • Keyless locking mechanism protects patient data and aids in the compliance with privacy requirements like HIPAA

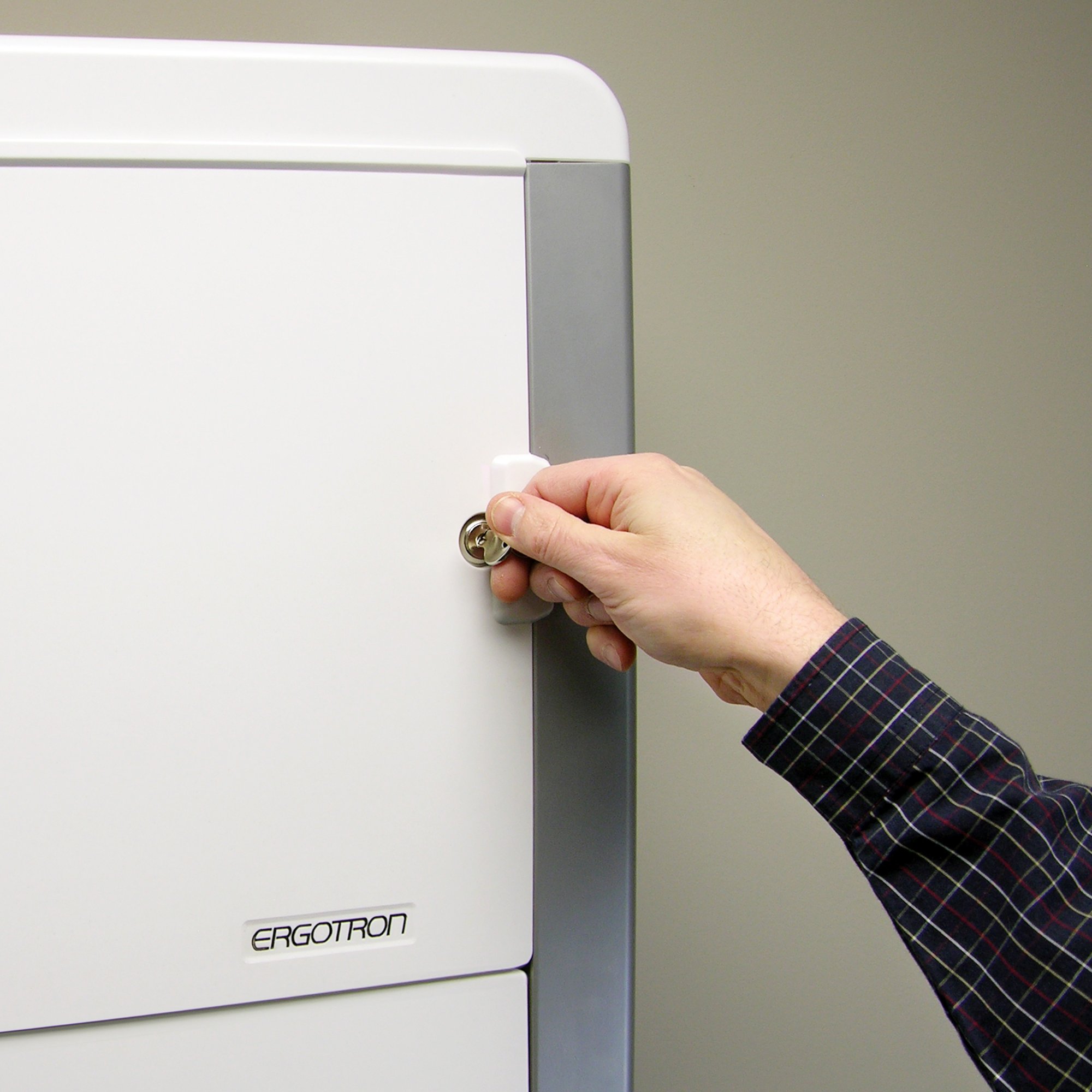

  • Separate locking storage for CPU


Premium Ergonomics

  • Nine-inch (229 mm) vertical adjustment of monitor and keyboard in tandem enhances ergonomics for multiple users

  • Slide-out keyboard tray extends an extra 5" (125 mm) and pans for comfortable data entry

  • Ergonomic negative-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry

  • Patented counterbalance system provides smooth adjustment while maintaining touch-screen stability

  • Low profile - only 6.75" (17.2 cm) deep - and narrow width make it perfect for space-constrained areas

  • Easy to use: Quick, simple 4-step installation and effortless operation

  • Advanced open-architecture design supports future hardware upgrades

  • Cable management system conceals and organizes wires and cords

  • Extremely easy to clean; promotes infection control

  • Attractive design; hides clutter associated with computer equipment

Model 60-595-062
Manufacturer Ergotron
Part Number 60-595-062
UPC 698833009651
Color White and aluminum
Monitor Size Up to 22"
Weight Capacity 8-33 lbs (3.6-14.9 kg). Listed weight capacity represents total load on VL engine, including monitor and contents of keyboard tray, mouse pouch and scanner holder. Maxi load capacity: monitor pivot=18 lbs; CPU compartment=20 lbs; door/worksurface=50 lbs.
Lift (22.9 cm) 9 in
Pan 10 degree
Mounting Pattern VESA FDMI, MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
CPU Dimension Maximum CPU physical dimensions: 13.75" W x 12.75" H x 3.75" D (34.9 x 32.4 x 9.5 cm)
Monitor Dimensions Maximum monitor physical dimensions: 20.7" W x 14.7" H x 2.75" D (52.6 x 37.3 x 7.0 cm)
Dimensions 27.2" W x 60.6 H x 6.75" D (closed) or 20.6" D (open) (69 H x 154 H x 17 D or 53 D cm)
Shipping Dimensions 65" x 31" x 11.5" (1651 x 787 x 292 mm)
Shipping Weight 97 lbs (44.1 kg)
Warranty Five (5) years; One (1)-year warranty on all electronic components (excludes AA batteries)
