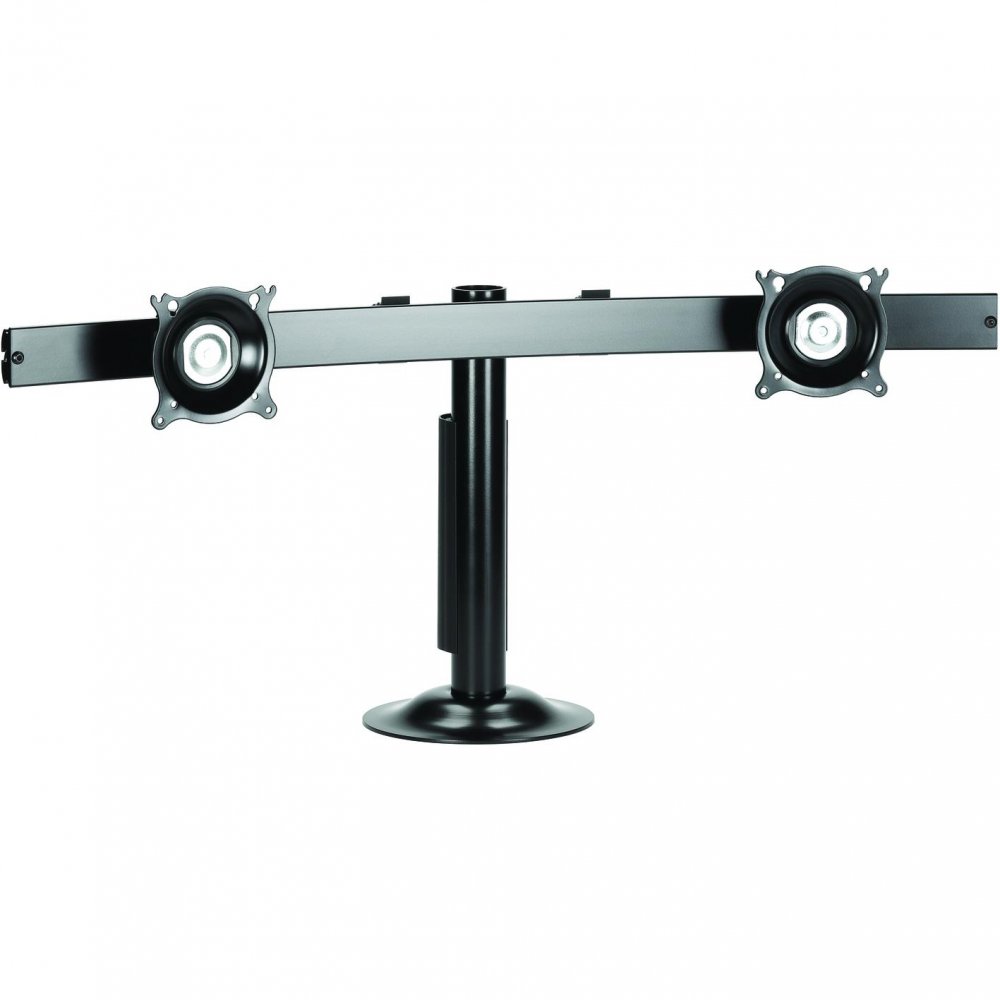

Chief Widescreen Dual Horizontal Grommet Mount KTG225B or KTG225S
Description
Chief KTG225 provides a rock solid, bolt-down solution for graphic designers, broadcasters and other users who commonly work with multiple small flat panel TVs or monitors.
- Provides ergonomic adjustability for hassle-free, fingertip positioning of each monitor

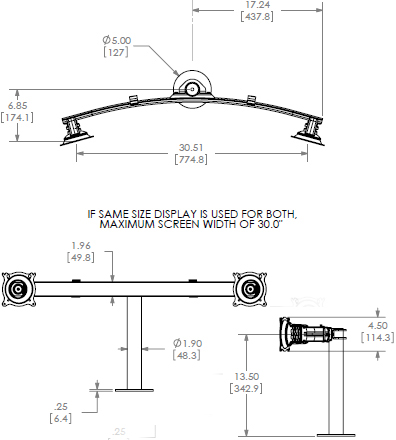

Technical Drawing
Specifications
| Color | Black, Silver |
| Desktop Thickness Range | 0.5 - 5" (13 - 127mm) |
| Grommet Hole Size Range | 0.38 - 3.5" (10 - 89mm) |
| Mounting Pattern Compatibility (Universal Versions) | 75 x 75mm, 100 x 100mm |
| Notes | Weight capacity is per monitor |
| Number of Monitors | 2 |
| Overall Dimensions (H x W x D) | 14.5" x 34.5" x 6.9" (368 x 876 x 174mm) |
| Pole Length | 14" |
| Post-Installation Leveling Roll | Yes |
| Shipping Weight | 18.3 lbs (8.3 kg) |
| Solution Type | Universal |
| Tilt | + 15° , - 15° |
| TV Height Range | 10 - 26" (254 - 660mm) |
| TV Width Range | 10 - 30" (254 - 762mm) |
| Typical Screen Sizes | 10 - 30" |
| Weight Capacity | 35 lbs (15.9 kg) |
| Orientation | Landscape, Portrait |
Features
Centris Technology provides smooth, fingertip tilt in all directions
Screen angle stays set in place until you decide to re-adjust
Independent adjustment of each screen for proper ergonomic alignment
Teardrop hole pattern makes mounting the screens quick and easy
Heavy-duty, solid steel base and oversize pole for unmatched stability
Conceal and protect cables using snap-on covers and cable clip
Heavy-duty, solid steel bolting plates and oversized pole for unmatched stability
Integrated cable management
VESA 75 x 75 mm and 100 x 100 mm compatible
Product Options/Accessories
| Model | KTG225B, KTG225S |
| Manufacturer | Chief Mounts |
| Part Number | KTG225B, KTG225S |
| UPC | 841872106410 |
| Weight | lb(s) |
| Mounting Options | Desk |
| Number of Monitors | 2 Monitors |
| Monitor Arm Types | 2 Monitors |
| Color | Black and Silver |
| Desktop Thickness Range | 0.5 - 5 |
| Grommet Hole Size Range | 0.38 - 3.5 |
| Mounting Pattern | 75 x 75mm, 100 x 100mm |
| Overall Dimensions | 14.5 |
| Pole Length | 14 |
| Shipping Weight | 18.3 lbs (8.3 kg) |
| Tilt | + 15 degree, - 15 degree |
| TV Height Range | 10 - 26 |
| TV Width Range | 10 - 30 |
| Screen Size | 10 - 30 in |
| Weight Capacity | 35 lbs (15.9kg) per monitor |
| Orientation | Landscape, Portrait |
| Maximum Monitor Size | 30 |
| Monitor Placement | Side-by-Side |
| Price | $300 - $399 |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 0
Warranty
With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.
Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
