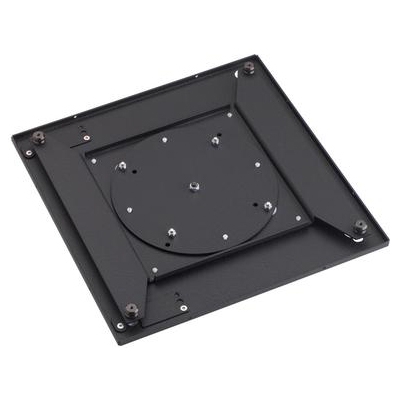

Chief MAC400 M-Series 90 degree Rotation Adapter, Medium Display
Description
Chief MAC400 rotation adapter provides the ability to rotate medium flat panel screens from landscape to portrait orientation.
Rotates flat panel with little effort (no tools necessary)
Provides 2° of over-travel for easy leveling of screen

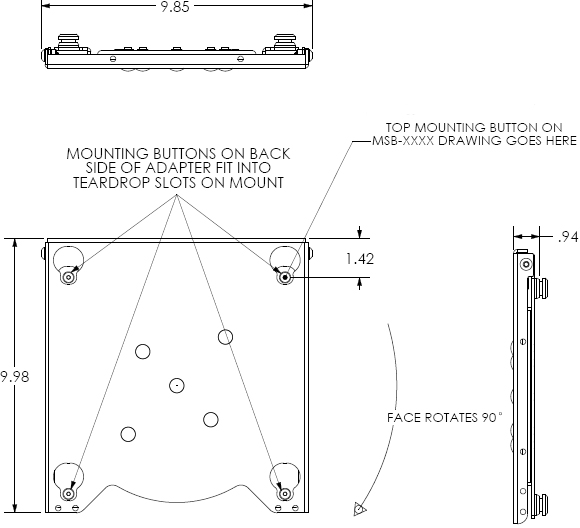

Technical Drawing
Specifications
|
Color |
Black |
|
Notes |
Reduces weight capacity of mount by 6 lbs (2.7 kg) |
|
Overall Dimensions |
10.0" x 9.9" x 0.9" (253 x 250 x 24mm) |
|
Shipping Weight |
7.00 lbs |
|
Weight Capacity |
125 lbs (56.7kg) |
Features
- Provides fingertip flat panel rotation from landscape to portrait mode
- Compatible with Chief's 8" (203 mm) Q-Latch mounting pattern
- Low profile, only adds 0.94" (24 mm) depth to installation
- Rotates clockwise or counterclockwise
Product Options/Accessories
| Model | MAC400 |
| Manufacturer | Chief Mounts |
| Part Number | MAC400 |
| UPC | 841872064109 |
| Weight | lb(s) |
| Color | Black |
| Overall Dimensions | 10.0" x 9.9" x 0.9" (253 x 250 x 24mm) |
| Shipping Weight | 7.00 lbs |
| Weight Capacity | 125 lbs (56.7kg) |
