Innovative 7500 Deluxe Flat Panel Radial Arm with 27" Reach
Related Products
| Part Number | Description |
| 7500-500-NM | Vertical range: 18", Horizontal range: 27", Weight range: 2 - 13 lbs, No Mount |
| 7500-800-NM | Vertical range: 18", Horizontal range: 27", Weight range: 6 - 21 lbs, No Mount |
| 7500-1000-NM | Vertical range: 18", Horizontal range: 27", Weight range: 8 - 27 lbs, No Mount |
| 7500-1500-NM | Vertical range: 18", Horizontal range: 27", Weight range: 12 - 40 lbs, No Mount |
Description

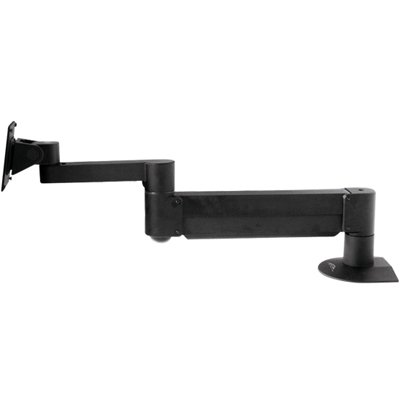

Innovative's award-winning 7500 Radial Arm is a remarkable work tool. Effortlessly position your monitor exactly where you want it, and add flexibility to your work style. Suspend your flat panel above the desk surface and reclaim your valuable space.
7500 features Innovative`s patented HD tilter, a spring-assisted pivot for your monitor which makes monitor adjustment remarkably easy, even with large screens. The counterbalance force is provided by a gas cylinder which makes for a smooth and silent operation. Other features include cable management to route cables inside the arm.
Technical Drawing
Technical Specifications
| Color | 104 - Vista Black, 124 - Silver and 248 - Flat White |
| Screen Size | Up to 43" |
| Height Adjustment | 18" (45.7 cm), +/- 9" (22.9 cm) from horizontal |
| Extension Range | 27" (68.6 cm) |
| Monitor Pivot | Landscape / Portrait |
| Rotation | 360 degrees at three joints |
| Monitor Tilt | Up to 190 degrees |
| Cable Management | Cables are concealed in arm |

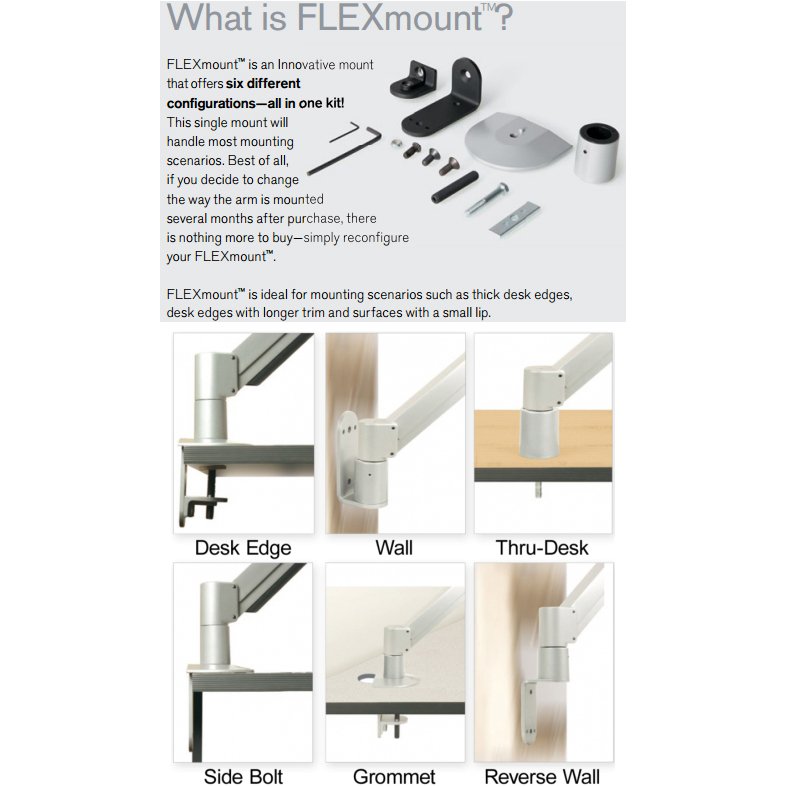

| Mount Configurations | Desk Edge, Thru-Desk, Grommet, Wall, Reverse Wall, Side Bolt |
| VESA Compatibility | 75 & 100mm adapter included |
| Warranty | 10 Years |
| Monitor Weight/Model Number |
|
Features

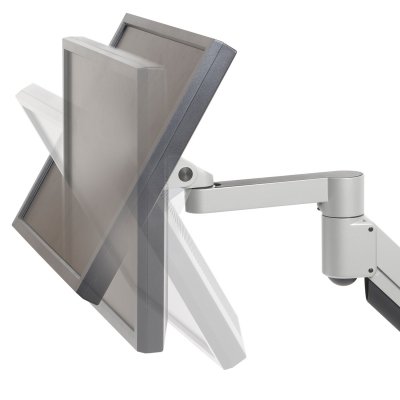

Includes our spring-assisted HD tilter for smooth monitor pivoting.
Monitor is rendered weightless by the arm.
18" of vertical range.
27" of horizontal range.
Folds up to occupy just 4.5" of space.
Monitor tilter mechanism can tilt up to 190 degrees.
Cable management keeps cables tucked beneath arm.
VESA-monitor compatible - 75mm & 100mm VESA adapters included. Please call for non-VESA options.
Approved to AFRDI Standard 126:2001, Level 3.
Optional upgrade to quick install/release monitor bracket. Consult your sales rep for details.
Optional 6" extender tube available to raise monitor (see Extender Tubes under Available Accessories).
VESA Adapter Plates
7VESA1x2
7VESA2x2
7VESA1x4
7VESA2x4
Product Options/Accessories
| Model | 7500-500-NM or 7500-800-NM or 7500-1000-NM or 7500-1500-NM |
| Manufacturer | Innovative LCD Arms |
| Part Number | 7500-500-NM or 7500-800-NM-104 or 7500-1000-NM |
| UPC | 895026000338 |
| Weight | lb(s) |
| Mounting Options | Desk |
| Mounting Options | Wall |
| Mounting Options | Slatwall |
| Mounting Options | Pole |
| Monitor Arm Types | 1 Monitor |
| Number of Monitors | 1 Monitor |
| Color | Vista Black, Silver and Flat White |
| Monitor Size | Up to 43 |
| Height Adjustment | 18 |
| Extension | 27 |
| Pivot | Landscape/Portrait |
| Rotation | At three joints 360 degree |
| Mounting Options | Desk Edge, Thru-Desk, Grommet, Wall, Reverse Wall, Side Bolt |
| Mounting Pattern | VESA 75mm, 100mm |
| Warranty | 10 Years |
| Tilt | 200 degree |
| Weight Capacity | 2 - 40 lbs (0.9 - 18.1 kg) |
| Price | $400 - $499 |
