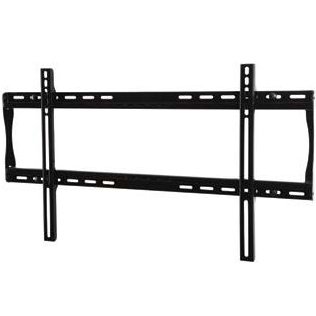

Peerless PF650 Paramount Universal Flat Wall Mount
More shipping >
Description
The Paramount series wall mounts provide versatile and multi-functional features. With PF650, a low-profile design positions the display just 1.26" (32mm) from the wall. The Hook-and-Hang system offers easy, one-person installation of the display. The Easy-Glide adaptors hook onto the wall plate for a quick, simple, and secure installation. Achieve perfect positioning of the display with the side-to-side adjustment after installation.
Helpful Hints: The PF650’s design positions the display just 1.26" from the wall, perfect for almost any low-profile application.

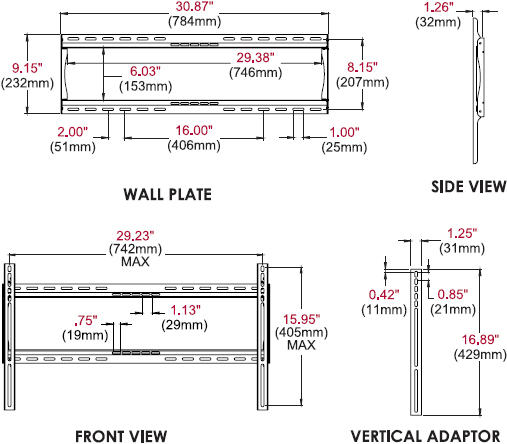

Technical Drawing
Specifications
|
Minimum to Maximum Screen Size |
39" to 75" |
|
VESA Pattern |
600 x 400 |
|
Weight Capacity |
150 lbs (68 kg) |
|
Color |
Black |
|
Finish |
High Gloss |
|
Distance from Wall |
1.25" (32mm) |
|
Mounting Pattern |
742 x 405mm (29.23 x 15.95") |
|
Security Features |
Non-Security Hardware |
|
Product Dimensions |
30.87" x 16.89" x 1.26" (784 x 429 x 32mm) |
|
Product Weight |
5.40 lbs (2.45 kg) |
|
Shipping Dimensions |
33.62" x 1.57" x 10.71" (854 x 40 x 272mm) |
|
Shipping Weight |
7.15 lbs (3.24 kg) |
|
Package Contents |
|
|
UPC Code |
735029255017 |
Features
Design is UL listed and tested to four times stated load capacity
Includes all necessary wall and display attachment hardware
Mounts to wood studs, concrete, cinder block or metal studs (metal stud accessory required)
Landscape to portrait mounting options increases installation versatility. Please check display dimensions against the wall plate when used in portrait mode*
Low-profile design holds display only 1.26" (32mm)
Horizontal display adjustment up to 8.00" (203mm) for centering display on wall
Universal mount fits displays with mounting patterns up to 742 x 405mm (29.23" W x 15.95" H)
Frequently Asked Questions
| Model | PF650 |
| Manufacturer | Peerless Mounts |
| Part Number | PF650 |
| UPC | 735029255017 |
| Weight | lb(s) |
| Color | Black |
| Monitor Size | 39"-75" |
| Weight Capacity | 150 lbs (68 kg) |
| Distance From Wall | 1.25" (32mm) |
| Mounting Pattern | 742 x 405mm (29.23 x 15.95") |
| Dimensions | 30.87" x 16.89" x 1.26" (784 x 429 x 32mm) |
| Weight | 5.40 lbs (2.45 kg) |
| Shipping Dimensions | 33.62" x 1.57" x 10.71" (854 x 40 x 272mm) |
| Shipping Weight | 7.15 lbs (3.24 kg) |
| Warranty | Limited 5 year |
| Number of Monitors | 1 Monitor |
| Mounting Options | Wall |
