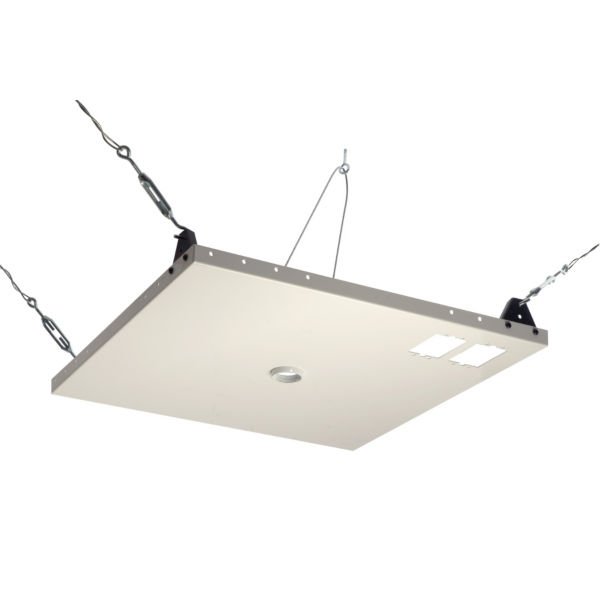

Peerless CMJ453 Variable Position Suspended Ceiling Plate
Description
Peerless CMJ453 Suspended Ceiling Plate consists of a two piece 24"(610mm) x 24"(610mm) ceiling tray that offers up to 5 diff points of mount attachment. The unit is suspended by four tie wires from the true ceiling above and a fifth "safety cable" is also provided. The adjustable 1-1/2"-11.5 NPT fitting accommodates an extension column or projector mount.
Peerless CMJ450 Suspended Ceiling Plate consists of a 24"(610mm) x 24"(610mm) ceiling tray suspended by four tie wires from the true ceiling above with a fifth "safety cable" is also provided. The 1-1/2"-11.5 NPT fitting accommodates an extension column or projector mount.
Technical Drawing
Specifications
| Color | White |
| Finish | Powder Coat |
| Weight Capacity | 250 lbs (114 kg) |
| Security Features | Non-Security Hardware |
| Product Dimensions | 24 x 24" (609 x 609mm) |
| Weight | CMJ453: 19.5 lbs (8.9 kg), CMJ450: 20.5 lbs (9.3 kg) |
| Shipping Dimensions | 24.5 x 2.25 x 24.5" (622.3 x 57.2 x 622.3mm) |
| Shipping Weight | CMJ453: 21.4 lbs (9.7 kg), CMJ450: 21.1 lbs (9.6 kg) |
| UPC Code | CMJ450: 735029191124, CMJ453: 735029200666 |
Features
Includes 5 safety cables to secure the suspected ceiling plate to the ceiling
Unit has 1-1/2"-11.5 NPT fitting for attachment of an extension column or projector mount
Includes four knockout panels for AC outlet boxes (knockouts are for half-size handy boxes with flanges)
Two-piece design offers five different points for mount attachment
Replaces 2'x2' suspended ceiling tile and secures to structural ceiling with tie wires
Product Options/Accessories
| Model | CMJ453, CMJ450 |
| Manufacturer | Peerless Mounts |
| Part Number | CMJ453, CMJ450 |
| UPC | 735029200666 |
| Color | Black |
| Finish | Powder Coat |
| Weight Capacity | 250 lbs (114kg) |
| Weight | CMJ453: 19.5 lbs (8.9 kg), CMJ450: 20.5 lbs (9.3 kg) |
| Dimensions | 24 X 24" (609 X 609mm) |
| Shipping Weight | CMJ453: 21.4 lbs (9.7 kg), CMJ450: 21.1 lbs (9.6 kg) |
| Shipping Dimensions | 24.5 x 2.25 x 24.5" (622.3 x 57.2 x 622.3mm) |
