Peerless SUF650P Universal Ultra Slim Flat Wall Mount for 37" to 75" Displays
Description
Peerless SUF650P is one of the world’s slimmest mounts at only 0.33" (8mm) thin, this near-invisible mount is the beauty that supports the modern style of the latest ultra-thin displays. Its all-steel, clean-line, high-gloss modeling features universal compatibility with virtually any ultra-thin display innovation. This unmatched solution delivers space-saving, ultra-sleek looks and brings the display ultra-close to the wall.
Helpful Hints: Designed to be used with displays that are less than 3" (76mm) deep.

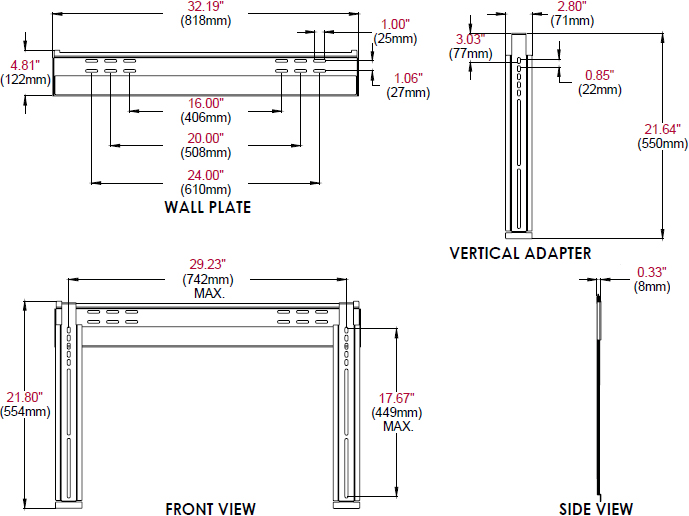

Technical Drawing
Specifications
|
Minimum to Maximum Screen Size |
37" to 75" |
|
VESA Pattern |
600 X 400 |
|
Weight Capacity |
150 lbs (68.0 kg) |
|
Color |
Black |
|
Finish |
High Gloss |
|
Distance from Wall |
0.33" (8mm) |
|
Mounting Pattern |
742 x 449mm (29.23 x 17.67") |
|
Security Features |
Non-Security Hardware |
|
Product Dimensions |
32.19" x 21.64" x 0.33" (818 x 550 x 8mm) |
|
Product Weight |
6.9 lbs (3.1 kg) |
|
Shipping Dimensions |
37.06" x 2.375" x 6.313" (941 x 60 x 160mm) |
|
Shipping Weight |
7.6 lbs (3.5 kg) |
|
Package Contents |
|
|
UPC Code |
735029258360 |
Product Options/Accessories
| Model | SUF650P |
| Manufacturer | Peerless Mounts |
| Part Number | SUF650P |
| UPC | 735029258360 |
| Weight | lb(s) |
| Color | Black |
| Monitor Size | 37"-75" |
| VESA | 600 x 400 |
| Weight Capacity | 150 lb (68.0 kg) |
| Distance From Wall | 0.33" (8mm) |
| Mounting Pattern | 742 x 449mm (29.23 x 17.67") |
| Dimensions | 32.19" x 21.64" x 0.33" (818 x 550 x 8mm) |
| Weight | 6.9 lbs (3.1 kg) |
| Shipping Dimensions | 37.06" x 2.375" x 6.313" (941 x 60 x 160mm) |
| Shipping Weight | 7.6 lbs (3.5 kg) |
| Mounting Options | Wall |
| Number of Monitors | 1 Monitor |
| Warranty | Limited 5 year |
