Peerless PF640 Paramount Universal Flat Wall Mount
Description
The Paramount series wall mounts provide versatile and multi-functional features. With PF640, a low-profile design positions the display just 1.26" (32mm) from the wall. The Hook-and-Hang system offers easy, one-person installation of the display. The Easy-Glide adaptors hook onto the wall plate for a quick, simple, and secure installation. Achieve perfect positioning of the display with the side-to-side adjustment after installation.
Helpful Hints: The PF640’s design positions the display just 1.26" from the wall, perfect for almost any low-profile application.

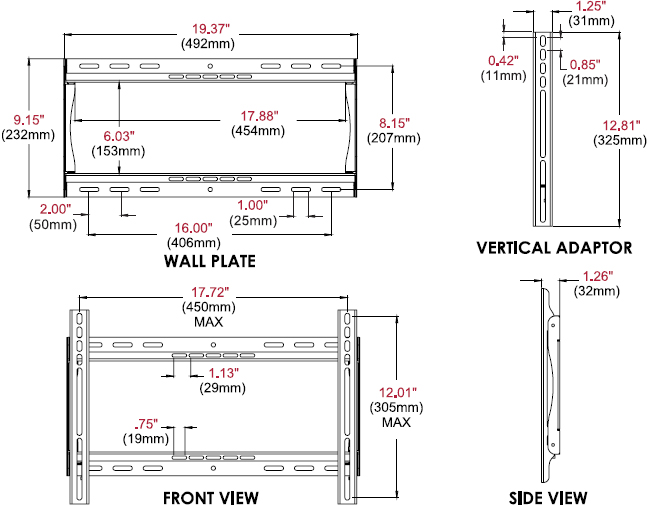

Technical Drawing
Specifications
|
Minimum to Maximum Screen Size |
32" to 46" |
|
VESA Pattern |
400 x 300 |
|
Weight Capacity |
100 lbs (45 kg) |
|
Color |
Black |
|
Finish |
High Gloss |
|
Distance from Wall |
1.26" (32mm) |
|
Mounting Pattern |
450 x 305mm (17.72 x 12.01") |
|
Security Features |
Non-Security Hardware |
|
Product Dimensions |
19.37" x 12.81" x 1.26" (492 x 325 x 32mm) |
|
Product Weight |
3.65 lbs (1.66 kg) |
|
Shipping Dimensions |
21.69" x 1.57" x 10.71" (551 x 40 x 272mm) |
|
Shipping Weight |
5.20 lbs (2.36 kg) |
|
Package Contents |
|
|
UPC Code |
735029252344 |
Features
Includes all necessary wall and display attachment hardware
Design is UL listed and tested to four times stated load capacity
Please check display dimensions against the wall plate when used in portrait mode
Mounts to wood studs, concrete, cinder block or metal studs (metal stud accessory required)
Landscape to portrait mounting options increases installation versatility.
Horizontal display adjustment up to 6.00" (152mm) for centering display on wall
Low-profile design holds display only 1.26" (32mm)
Universal mount fits displays with mounting patterns up to 450 x 305mm (17.72" W x 12.01" H)
| Model | PF640 |
| Manufacturer | Peerless Mounts |
| Part Number | PF640 |
| UPC | 735029252344 |
| Weight | lb(s) |
| Color | Black |
| Monitor Size | 32"-46" |
| Weight Capacity | 100 lbs (45 kg) |
| Distance From Wall | 1.26" (32mm) |
| Mounting Pattern | 450 x 305mm (17.72 x 12.01") |
| Dimensions | 19.37" x 12.81" x 1.26" (492 x 325 x 32mm) |
| Weight | 3.65 lbs (1.66 kg) |
| Shipping Dimensions | 21.69" x 1.57" x 10.71" (551 x 40 x 272mm) |
| Shipping Weight | 5.20 lbs (2.36 kg) |
| Warranty | Limited 5 year |
| Number of Monitors | 1 Monitor |
| Mounting Options | Wall |
