Peerless PP740 Paramount Pivot Wall Mount for 22"-40" Displays
Description

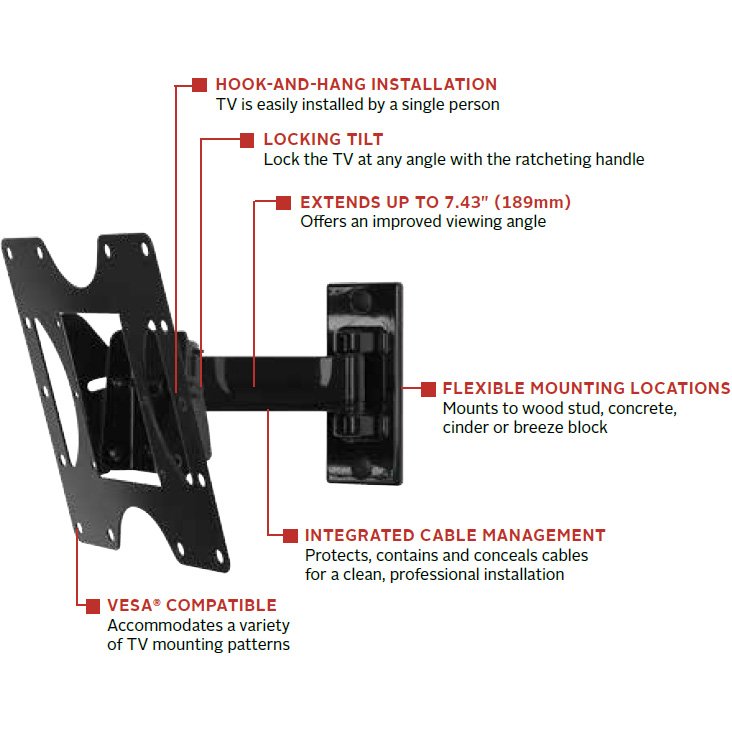

The Paramount series wall mounts provide versatile and multi-functional features. With peerless PP740, extend the display up to 7.43" (189mm) or fully-retract it to just 2.78" (70mm) from the wall for an improved viewing angle. The Hook-and-Hang system offers easy, one-person installation of the display. A ratcheting handle provides locking tilt capability for quick adjustments to the amount of tilt, reducing glare and optimizing the viewing angle. Integrated cable management protects, contains and conceals cables for a clean installation.
Helpful Hints: The Pivoting Wall Mount extends, turns and tilts for improved viewing position.

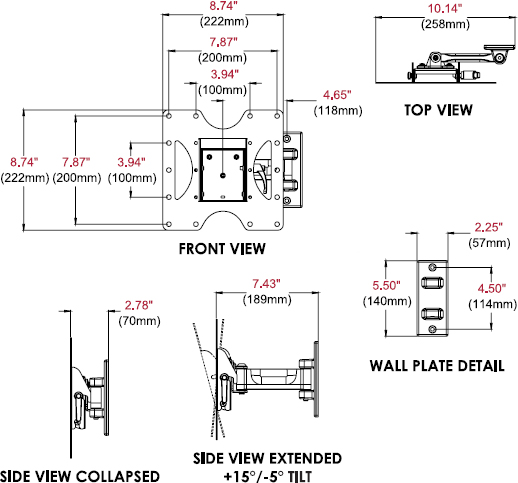

Technical Drawing
Specifications
| Color | Black |
| Finish | High Gloss |
| Minimum to Maximum Screen Size | 22" to 40" |
| VESA Pattern | 100 x 100, 200 x 100, 200 X 200 |
| Weight Capacity | 80 lbs (36.0kg) |
| Distance from Wall | 3.23 - 7.88" (82 - 200mm) |
| Mounting Pattern | 100 x 100, 200 x 100, 200 X 200mm ( 3.94 x 3.94, 7.87 x 3.94, 7.87 x 7.87") |
| Roll | +7 / -7 degree |
| Security Features | Non-Security Hardware |
| Swivel Yaw | +90 / -90 degree |
| Tilt | +15 /-5 degree |
| Package Contents |
|
| Product Dimensions | 10.14" x 8.74" x 2.78"-7.43" (258 x 222 x 70-189mm) |
| Product Weight | 2.75 lbs (1.25kg) |
| Shipping Dimensions |
10.04" x 2.95" x 12.76" (255 x 75 x 324mm) |
| Shipping Weight | 4.10 lbs (1.86kg) |
| UPC Code | 735029256113 |
Features
Design is UL listed and tested to four times stated load capacity
VESA 100, 200 x 100, 200 x 200mm compliant
Up to ±90° of pivot
±5° of roll for post installation display leveling
+15/-5° of tilt for optimal viewing angles
Retracts to 2.78" (70mm) to save space
Extends 7.43" (189mm) from the wall
Product Options/Accessories
| Model | PP740 |
| Manufacturer | Peerless Mounts |
| Part Number | PP740 |
| UPC | 735029256113 |
| Weight | lb(s) |
| Color | Black |
| Finish | High Gloss |
| Monitor Size | 22" to 40" |
| Weight Capacity | 80 lbs (36.0kg) |
| Distance From Wall | 3.23 - 7.88" (82 - 200mm) |
| Mounting Pattern | 100 x 100, 200 x 100, 200 X 200mm ( 3.94 x 3.94, 7.87 x 3.94, 7.87 x 7.87") |
| Roll | +7 / -7 degree |
| Swivel | +90 / -90 degree |
| Tilt | +15 /-5 degree |
| Dimensions | 10.14" x 8.74" x 2.78"-7.43" (258 x 222 x 70-189mm) |
| Weight | 2.75 lbs (1.25kg) |
| Shipping Dimensions | 10.04" x 2.95" x 12.76" (255 x 75 x 324mm) |
| Shipping Weight | 4.10 lbs (1.86kg) |
| Warranty | Limited 5 year |
| Number of Monitors | 1 Monitor |
| Mounting Options | Wall |
