Peerless PF630 Paramount Flat Wall Mount for 10" to 29" Displays
Description
The Paramount series wall mounts provide versatile and multi-functional features. With PF630, a low-profile design positions the display just 0.64" (16mm) from the wall. The Hook-and-Hang system offers easy, one-person installation of the display.
Helpful Hints: The PF630’s design positions displays just 0.64" from the wall, perfect for almost any low-profile application.

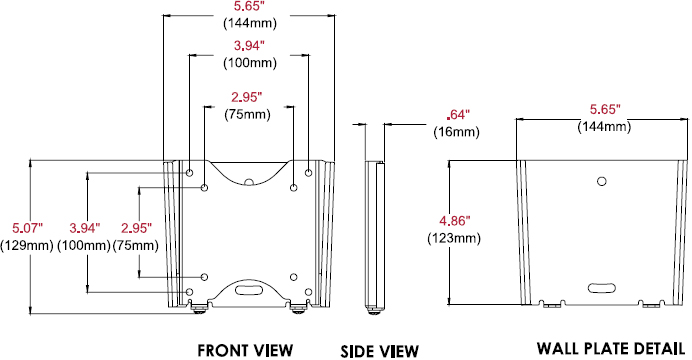

Technical Drawing
Specifications
|
Minimum to Maximum Screen Size |
10" to 29" |
|
VESA Pattern |
75 x 75, 100 x 100 |
|
Weight Capacity |
50 lbs (22.7 kg) |
|
Color |
Black |
|
Finish |
High Gloss |
|
Distance from Wall |
0.68" (17mm) |
|
Mounting Pattern |
75 x 75, 100 x 100mm (2.95 x 2.95, 3.94 x 3.94") |
|
Security Features |
Non-Security Hardware |
|
Product Dimensions |
5.65" x 5.07" x 0.64" (144 x 129 x 16mm) |
|
Product Weight |
1.20 lbs (0.54 kg) |
|
Shipping Dimensions |
5.91" x 2.60" x 7.24" (150 x 66 x 184mm) |
|
Shipping Weight |
1.75 lbs (0.80 kg) |
|
Package Contents |
|
|
UPC Code |
735029252337 |
Features
Design is UL listed and tested to four times stated load capacity
Display adaptor plate simply slides into the wall plate for a quick and easy installation
Includes all necessary wall and display attachment hardware
Easy installation to the wall with just two screws
Slim design positions the display only 0.64" (16mm) from the wall
Product Options/Accessories
| Model | PF630 |
| Manufacturer | Peerless Mounts |
| Part Number | PF630 |
| UPC | 735029252337 |
| Weight | lb(s) |
| Color | Black |
| Monitor Size | 10"-29" |
| Mounting Pattern | 75 x 75, 100 x 100mm (2.95 x 2.95, 3.94 x 3.94") |
| Weight Capacity | 50 lbs (22.7 kg) |
| Distance From Wall | 0.68" (17mm) |
| Dimensions | 5.65" x 5.07" x 0.64" (144 x 129 x 16mm) |
| Weight | 1.20 lbs (0.54 kg) |
| Shipping Dimensions | 5.91" x 2.60" x 7.24" (150 x 66 x 184mm) |
| Shipping Weight | 1.75 lbs (0.80 kg) |
| Warranty | Limited 5 year |
| Number of Monitors | 1 Monitor |
| Mounting Options | Wall |
