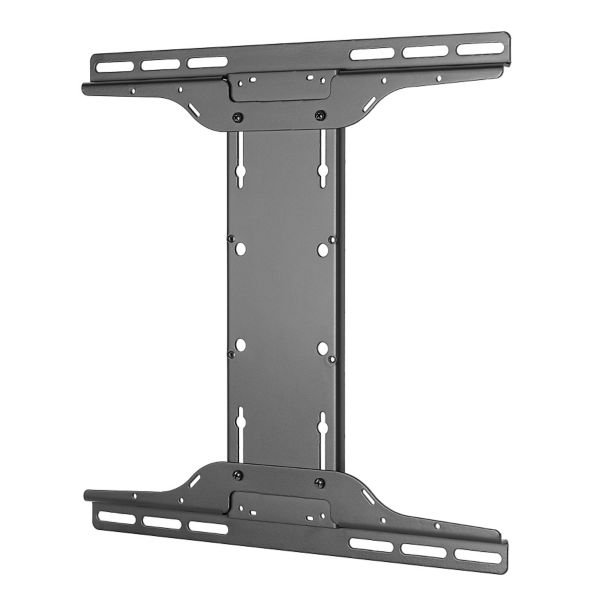

Peerless PLP-UNM Universal I-Shaped Adaptor for 22"-50" Display
Description
The Universal I-Shaped Adaptors offer mounting compatibility for medium to large sized displays weighing up to 150lb (68.2kg). The new I-shaped design has been created to help prevent blocking the display’s power and signal input locations, making installation quick and easy. For added compatibility, the I-Shaped Adaptors are designed to attach to many Peerless-AV mounts using either a VESA 100 x 100mm or PLP mounting pattern. Mount your display with confidence knowing the included security hardware will help prevent theft.
Helpful Hints: The Universal I-Shaped Adaptors provide easy connection to many Peerless-AV flat panel mounts with a VESA 100 x 100mm or PLP mounting pattern. PLP-UNM and PLP-UNL are not compatible with PLA mounts. If an adapter bracket is required for a PLA mount, please contact customer care for a recommendation

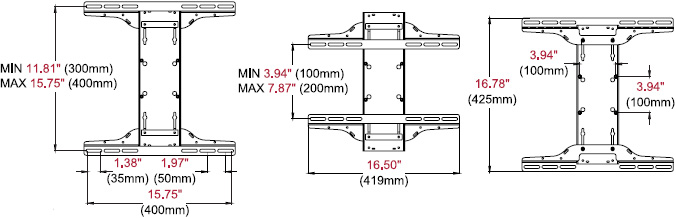

Technical Drawing
Specifications
| Color | Black |
| Finish | Powder Coat |
| Screen Size |
22" to 50" |
| VESA Pattern | 400 x 400 |
| Weight Capacity | 150 lbs (68kg) |
| Mounting Pattern |
400 x 400mm (15.75 x 15.75") |
| Security Features |
Security Hardware |
| Package Contents |
|
| Product Dimensions |
16.50" x 16.78" x 0.71" (419 x 425 x 18mm) |
| Product Weight |
4.30 lbs (1.95kg) |
| Shipping Dimensions |
25.50" x 5.13" x 1.88" (647.7 x 130.30 x 47.75mm) |
| Shipping Weight |
5.44 lbs (2.5kg) |
| UPC Code | 735029244851 |
Features
Designed to prevent blocking the display’s power and signal inputs
Heavy gauge cold rolled steel construction
Provided with display mounting security hardware for effective theft deterrence
ACC-M1020 required when mounting to Peerless-AV PLP mounting pattern (sold separately)
Compatible with many Peerless-AV display mounts (mounts sold separately)
Universal I-Shaped Adaptors fit virtually any display weighing up to 150lb (68.2kg) (actual mount capacity may be less)
Works in landscape or portrait orientation
Product Options/Accessories
| Model | PLP-UNM |
| Manufacturer | Peerless Mounts |
| Part Number | PLP-UNM |
| UPC | 735029244851 |
| Weight | lb(s) |
| Adapter Type | Universal |
| Color | Black |
| Finish | Powder Coat |
| Monitor Size | 22" to 50" |
| Mounting Pattern | 400 x 400mm (15.75 x 15.75") |
| Weight Capacity | 150 lbs (68kg) |
| Dimensions | 16.50" x 16.78" x 0.71" (419 x 425 x 18mm) |
| Weight | 4.30 lbs (1.95kg) |
| Shipping Dimensions | 25.50" x 5.13" x 1.88" (647.7 x 130.30 x 47.75mm) |
| Shipping Weight | 5.44 lbs (2.5kg) |
