Peerless PP730 Paramount Pivot Wall Mount for 10"-29" Displays
Description

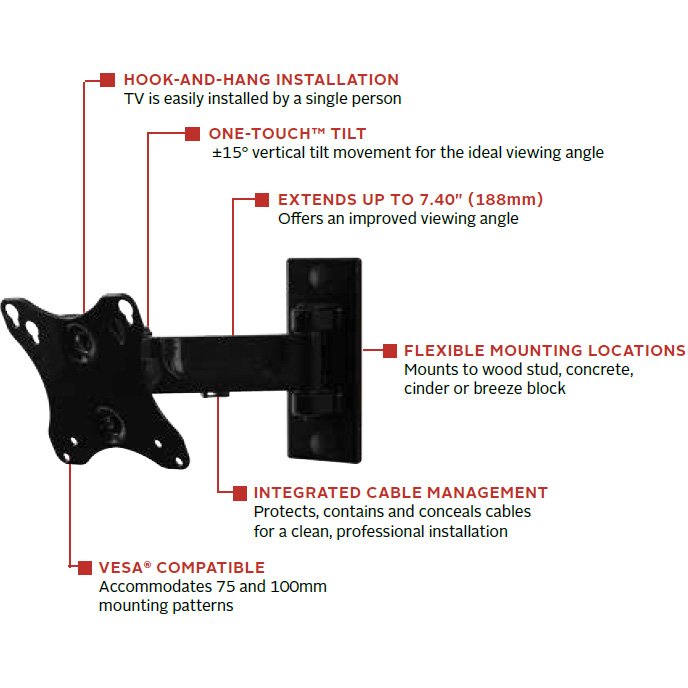

The Paramount series wall mounts provide versatile and multi-functional features. With peerless PP730, extend the display up to 7.40" (188mm) or fully-retract it to just 2.75" (70mm) from the wall for an improved viewing angle. The Hook-and-Hang system offers easy, one-person installation of the display. One-Touch tilt technology offers ±15° vertical tilt movement for the ideal viewing angle. Integrated cable management protects, contains and conceals cables for a clean installation.
Helpful Hints: The Pivoting Wall Mount extends, turns and tilts for improved viewing position.
Technical Drawing
Specifications
| Color | Black |
| Finish | High Gloss |
| Minimum to Maximum Screen Size | 10" to 29" |
| VESA Pattern | 75 x 75 and 100 x 100 |
| Weight Capacity | 25 lbs (11.0kg) |
| Distance from Wall | 2.36 - 7.01" (60 - 178mm) |
| Mounting Pattern | 75 x 75 and 100 x 100mm (2.95 x 2.95, 3.94 x 3.94") |
| Roll | +5 / -5 degree |
| Security Features | Non-Security Hardware |
| Swivel Yaw | +90 / -90 degree |
| Tilt | +35 / -35 degree |
| Package Contents |
|
| Product Dimensions | 8.24" x 5.50" x 2.75"-7.40" (209 x 140 x 70-188mm) |
| Product Weight | 1.85 lbs (0.84kg) |
| Shipping Dimensions | 7.28" x 2.76" x 10.39" (185 x 70 x 264mm) |
| Shipping Weight | 2.65 lbs (1.20kg) |
| UPC Code | 735029253631 |
Features
Design is UL listed and tested to four times stated load capacity
VESA 75 and 100mm compliant
±90° of pivot
±5° of roll for post installation display leveling
One-Touch tilt mechanism offers ±15° of tilt angle adjustment
Retracts to 2.75” (70mm) to save space
Extends 7.40” (188mm) from the wall
Product Options/Accessories
| Model | PP730 |
| Manufacturer | Peerless Mounts |
| Part Number | PP730 |
| UPC | 735029253631 |
| Weight | lb(s) |
| Color | Black |
| Finish | High Gloss |
| Monitor Size | 10" to 29" |
| Weight Capacity | 25 lbs (11.0kg) |
| Distance From Wall | 2.36 - 7.01" (60 - 178mm) |
| Mounting Pattern | 75 x 75 and 100 x 100mm (2.95 x 2.95, 3.94 x 3.94") |
| Roll | +5 /-5 degree |
| Swivel | +90 / -90 |
| Tilt | +35 / -35 degree |
| Dimensions | 8.24" x 5.50" x 2.75"-7.40" (209 x 140 x 70-188mm) |
| Weight | 1.85 lbs (0.84kg) |
| Shipping Dimensions | 7.28" x 2.76" x 10.39" (185 x 70 x 264mm) |
| Shipping Weight | 2.65 lbs (1.20kg) |
| Warranty | Limited 5 year |
| Number of Monitors | 1 Monitor |
| Mounting Options | Wall |
