Peerless ACC558 or ACC559 Single Monitor I-Beam Clamp
Description
Peerless ACC558 I-Beam Clamp is designed to anchor a Peerless-AV ceiling mount to an overhead I-beam. Two sizes are available, with a 4" (102 mm) or 5" (127 mm) adjustment range. The 1 1/2-11.5 NPS threaded fitting is compatible with Peerless-AV Extension Columns (several models available, both fixed length and adjustable).
Helpful Hints: Width: Minimum 7", Maximum 12"; Height: Minimum 0.25", Maximum 1"

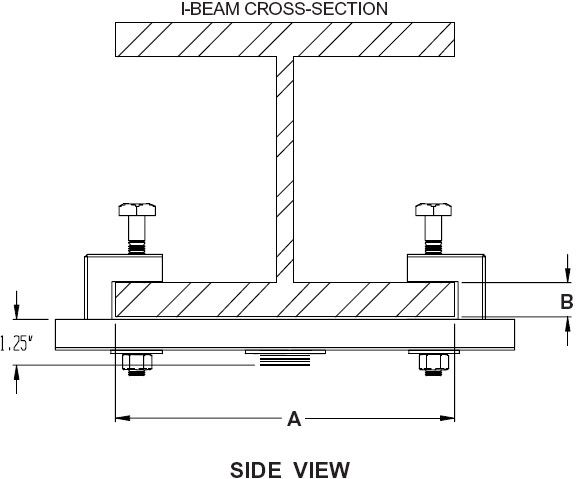

Technical Drawing
Specifications
Color | Black |
Finish | Powder Coat |
Weight Capacity | 250 lbs (113kg) |
Security Features | Non-Security Hardware |
Weight |
ACC558: 4.4 lbs (2kg) ACC559: 4.8 lbs (2.2kg) |
Dimensions |
ACC558: 4"-8" (101-128 mm) x 0.25"-1" (6-25 mm) ACC559: 7"-12" (128-304 mm) x 0.25"-1" (6-25 mm) |
Shipping Dimensions |
ACC558: 6.5 x 4 x 14.5" (165.1 x 101.6 x 368.3mm) ACC559: 6.5 x 4 x 14.5" (165.1 x 101.6 x 368.3mm) |
Shipping Weight |
ACC558: 4.8 lbs (2.2kg) ACC559: 5.3 lbs (2.4kg) |
UPC Code |
ACC558: 735029200529 ACC559: 735029200512 |
Features
Unit has 1 1/2" 11.5 NPT fitting for attachment of extension column
Scratch-resistant black fused epoxy finish
Important: Architect or installer must verify that the I-beam will safely support the combined load of all attached hardware and components.
Product Options/Accessories
Model | ACC558, ACC559 |
Manufacturer | Peerless Mounts |
Part Number | ACC558, ACC559 |
UPC | 735029200512 |
Color | Black |
Finish | Powder Coat |
Weight Capacity | 250 lbs (113kg) |
Weight | ACC558: 4.4 lbs (2 kg), ACC559: 4.8 lbs (2.2 kg) |
Dimensions | ACC558: 4"-8" (101-128 mm) x 0.25"-1" (6-25 mm), ACC559: 7"-12" (128-304 mm) x 0.25"-1" (6-25 mm) |
Shipping Weight | ACC558: 4.8 lbs (2.2kg), ACC558: 5.3 lbs (2.4kg) |
Shipping Dimensions | ACC558: 6.5 x 4 x 14.5" (165.1 x 101.6 x 368.3mm), ACC559: 6.5 x 4 x 14.5" (165.1 x 101.6 x 368.3mm) |
