Peerless PRG-UNV-S Precision Gear Projector Ceiling Mount up to 50 lbs
Important Note: All projectors with M8 mounting screws require ACC-M8RI inserts for compatibility with any Peerless projector mount

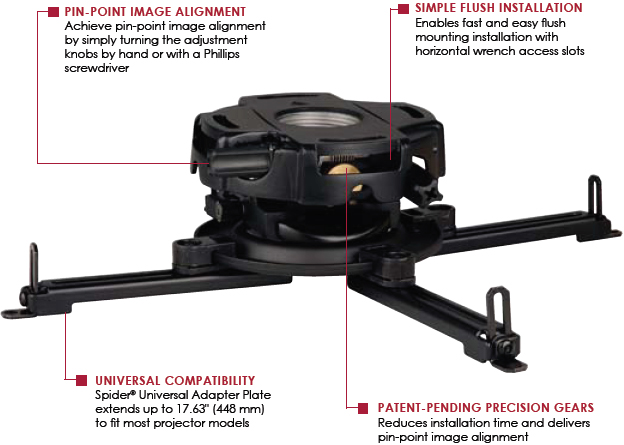

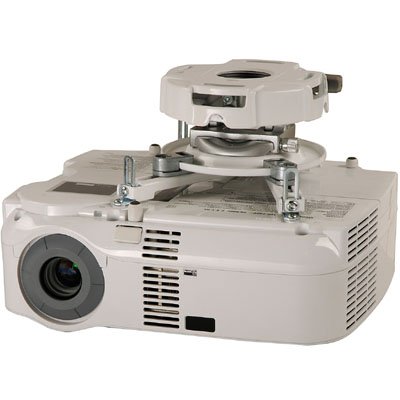

Peerless PRG-UNV-S Precision Gear Projector Mount
|
|||
|
|
|||
|
|
|||
Features of Peerless PRG UNV S :
|
|||
|
|||
|
|||
|
|||
|
|||
|
|||
|
|||
|
|||
|
|||
|
|||
|
|
|||

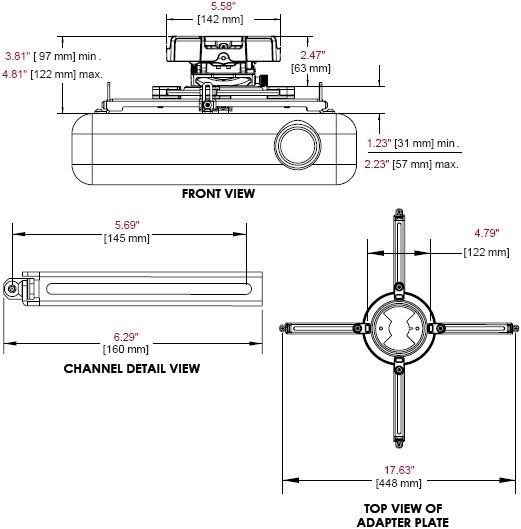

Technical Drawing of Peerless PRG-UNV Precision Gear Projector Ceiling Mount
|
|||
|
|
|||
|
|
|||
Description of Peerless PRGUNVS:
|
|||
|

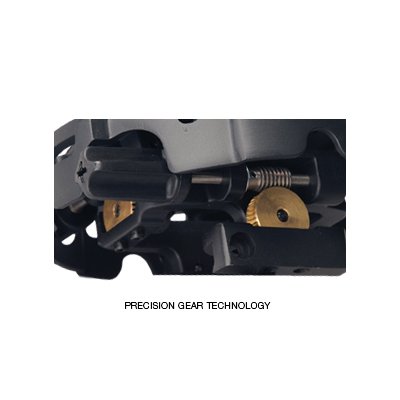

Peerless' PRG Precision Gear Projector Mount is changing the way image alignment is done. The patent-pending precision gear design provides exact tilt and roll image positioning with a simple turn of a knob. Once the installer sets the precision gear to the desired position it stays securely in place. It will not shift during projector maintenance, bulb replacement, and will not loosen or change alignment due to vibration, accidental bumping etc. With Peerless' PRG Precision Gear Projector Mount the installer sets it and forgets it. |
|||
|
|
|||
|
|
|||
Specifications of Peerless PRG-UNV or PRG-UNV-S or PRG-UNV-W
|
|||
|
Mounting Pattern: |
Up to 17.63" (448 mm) |
||
|
Tilt: |
±20° |
||
|
Swivel: |
360° (±15° when flush mounted) |
||
|
Roll: |
±10° |
||
|
Mounting Surfaces: |
Wood joist, concrete and other structures (Other structures require accessory) |
||
|
Product Dimensions (W x H x D): |
8.5"-17.63" x 3.81"-4.81" x 8.5"-17.63" (216-448 x 97-122 x 216-448 mm) |
||
|
Product Weight: |
3.08 lbs (1.4 kg) |
||
|
Load Capacity: |
50 lbs (22 kg) |
||
|
Finish: |
Scratch resistant fused epoxy |
||
|
Package Size (W x H x D): |
6.19" x 2.81" x 11.63" (157 x 71 x 295 mm) |
||
|
Package Ship Weight: |
3.78 lb (1.7 kg) |
||
|
Package Contents: |
|
||
|
Units in Package: |
1 |
||
|
|
|||
|
Literature (Please open the following documents for more technical information) |
|||
|
|
|||
Peerless PRG UNV or PRG UNV S or PRG UNV W Precision Gear Projector Mount - Catalog Page |
|
||
Peerless PRGUNV or PRGUNVS or PRGUNVW Precision Gear Projector Ceiling Mount - Drawing |
|
||
Peerless PRG-UNV or PRG-UNV-S or PRG-UNV-W Projector Ceiling Mount - Installation |
|
||

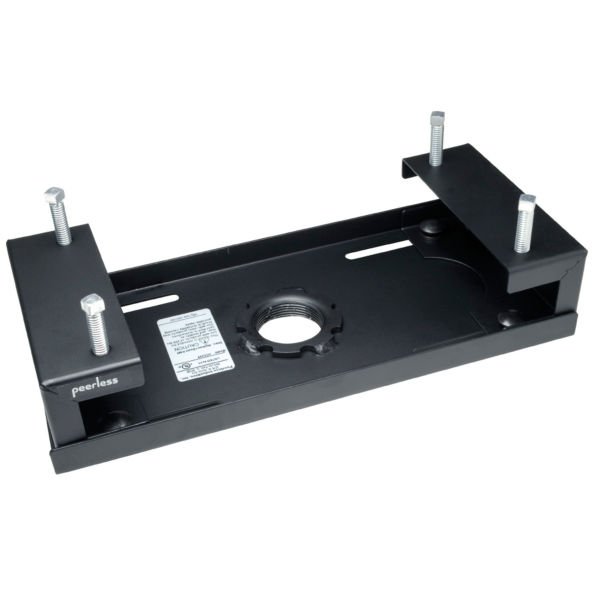

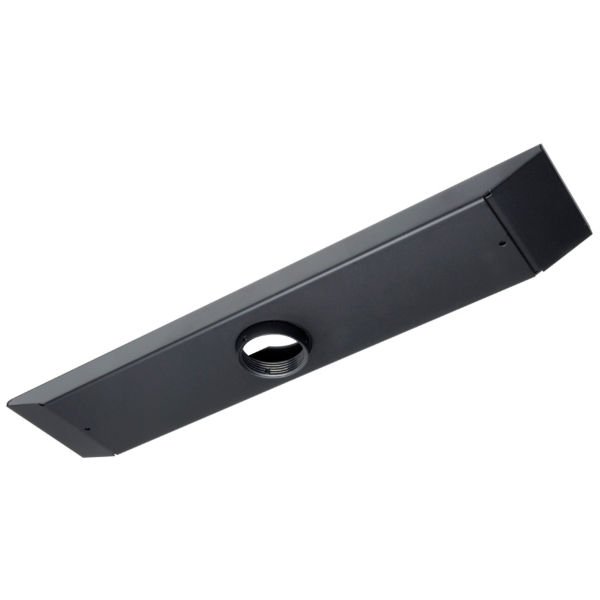

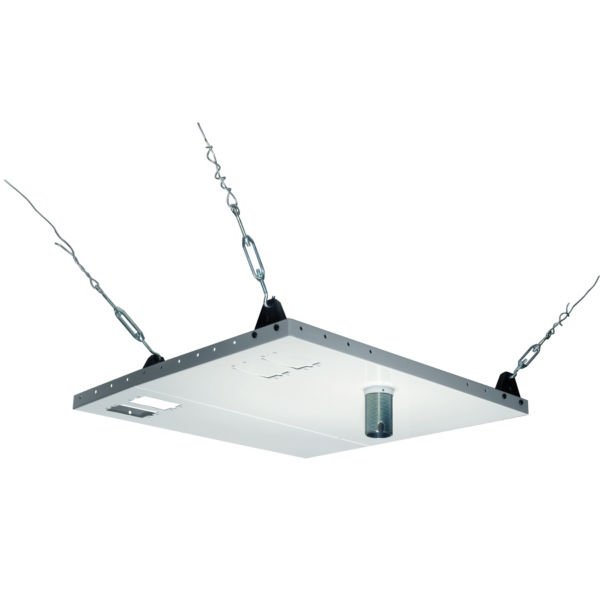

- pdfProduct Options/Accessories
| Model | PRG-UNV-S |
| Manufacturer | Peerless Mounts |
| Part Number | PRG-UNV-S |
| UPC | 735029249887 |
| Weight | lb(s) |
| Color | Black, Silver, White |
| Dimensions (W x H x D) | 8.5"-17.63" x 3.81"-4.81" x 8.5"-17.63" (216-448 x 97-122 x 216-448 mm) |
| Weight | 3.08 lbs (1.4 kg) |
| Weight Capacity | 50 lbs (22 kg) |
| Mounting Pattern | Up to 17.63" (448 mm) |
| Tilt | ±20 degree |
| Swivel | 360 degree |
| Roll | ±10 |
| Mounting Surfaces | Wood joist, concrete and other structures (Other structures require accessory) |
| Shipping Weight | 3.78 lb (1.7 kg) |
| Shipping Dimensions | 6.19" x 2.81" x 11.63" (157 x 71 x 295 mm) |
| Mounting Options | Ceiling |
