Chief RPMAU Series RPA Elite Projector Mount with Keyed Locking
Related Products
|
Part Number |
Description |
|
RPMAU |

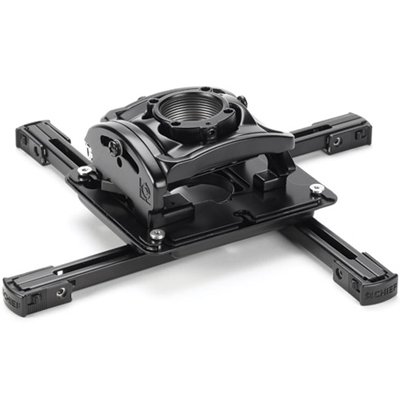

Black RPA Elite Universal Projector Mount with Keyed Locking (A Version) |
|
RPMAUS |

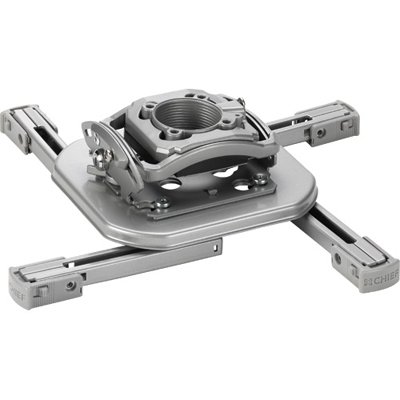

Silver RPA Elite Projector Ceiling Mount with Keyed Locking (A Version) |
|
RPMAUW |

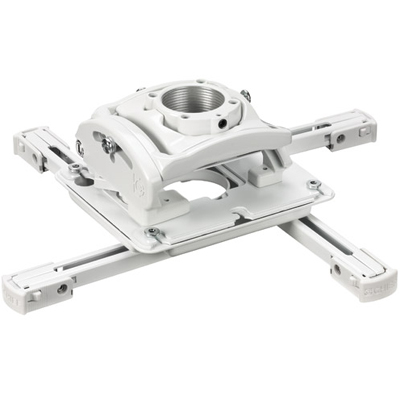

White RPA Elite Universal Projector Ceiling Mount with Keyed Locking (A Version) |
|
RPMBU |
Black RPA Elite Universal Projector Mount with Keyed Locking (B Version) |
|
RPMBUS |
Silver RPA Elite Projector Ceiling Mount with Keyed Locking (B Version) |
|
RPMBUW |
White RPA Elite Universal Projector Ceiling Mount with Keyed Locking (B Version) |
|
RPMCU |
Black RPA Elite Universal Projector Mount with Keyed Locking (C Version) |
|
RPMCUS |
Silver RPA Elite Projector Ceiling Mount with Keyed Locking (C Version) |
|
RPMCUW |
White RPA Elite Universal Projector Ceiling Mount with Keyed Locking (C Version) |
Description
Focusing on speed of installation, chief RPA Elite mounts are packed with easy-to-use features that save time and maximize projector security.
Same great features as the RPA Series, including independent roll, pitch and yaw, integrated cable management, and All-Points Security
Speed-Connect line of accessories further reduce installation time

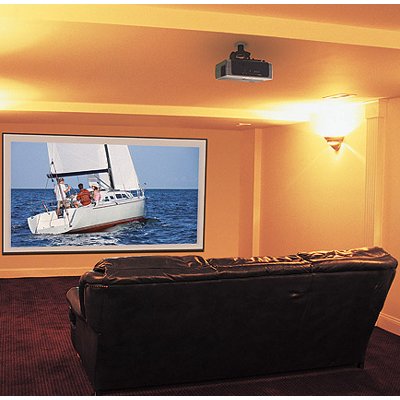

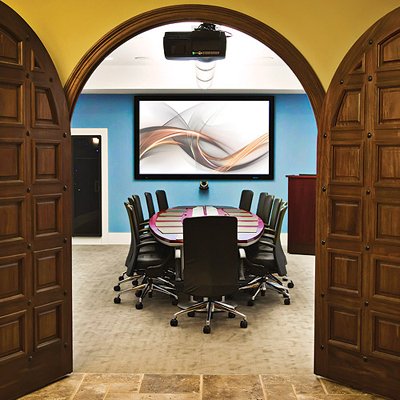

Ideal for offices, schools, boardrooms, houses of worship and homes
Available in three locking options: RPMA, RPMB, RPMC

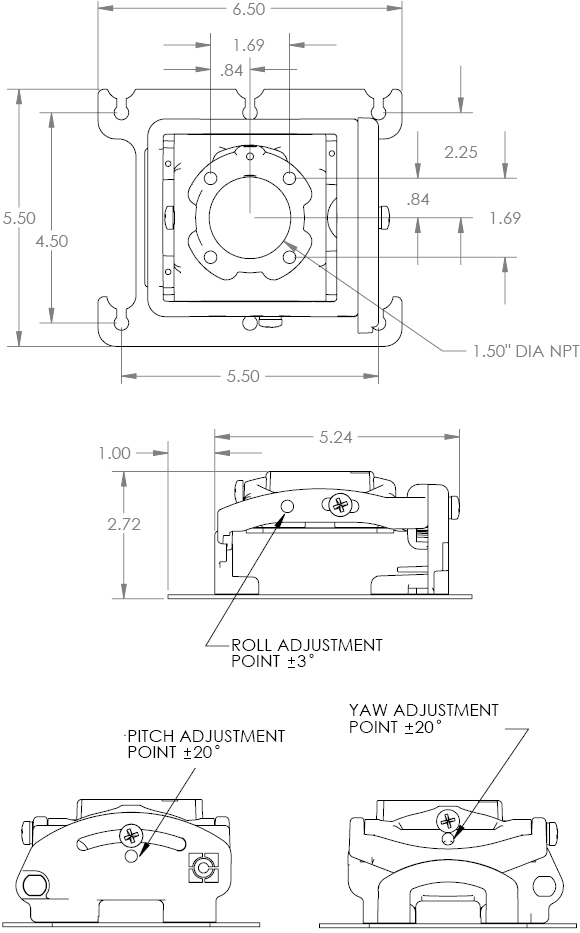

Technical Drawing
Specifications
|
Adjustments |
|
|
Color |
Black, Silver and White |
|
Certifications |
TV Certified, UL Listed |
|
Overall Dimensions (H x W x D) |
2.7" x 6.5" x 5.5" (69 x 165 x 140 mm) |
|
Shipping Weight |
7.00 lbs |
|
Solution Type |
Universal |
|
Weight Capacity |
50 lbs (22.7 kg) |
Features
- Microzone Adjustments make projector registration fast and precise (including flush mount installations)
- Centris Technology enables effortless fingertip positioning and self-adjusts to support different projector weights

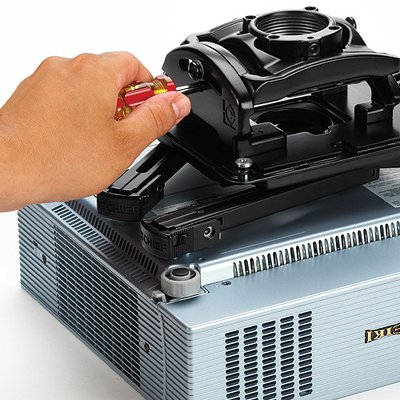

- Quick connect/disconnect for convenient lamp and filter access on most projectors
- Maintains registration when disconnected and doesn't affect preset adjustments
- Cable management without additional accessories

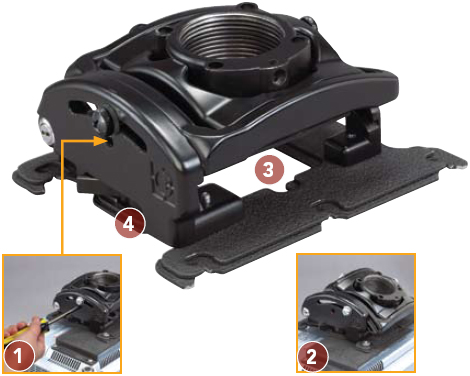

- Q-Lock Quick Release Lever provides quick connect/disconnect of the projector for service and enhanced security with an integrated key and lock system
- Same great features as the RPA Series, including independent roll, pitch and yaw, integrated cable management, and All-Points Security
- Speed-Connect line of accessories further reduce installation time
Product Options/Accessories
| Model | RPMAU, RPMAUW |
| Manufacturer | Chief Mounts |
| Part Number | RPMAU, RPMAUW |
| UPC | 841872078021 |
| Weight | lb(s) |
| Mounting Options | Ceiling |
| Color | Black, Silver and White |
| Roll | 3° |
| Pitch | 20° |
| Yaw | 360° |
| Overall Dimensions | 2.7" x 6.5" x 5.5" (69 x 165 x 140 mm) |
| Shipping Weight | 7.00 lbs |
| Weight Capacity | 50 lbs (22.7 kg) |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 0
- Catalog Page Chief RPM Series
- Technical Drawing Chief RPM Series
- Installation Manual Chief RPM Series
- Projector Security Guide Chief RPM Series
- Ceiling Mount Selection Guide Chief RPM Series
- Installation Instruction Chief SLBU and SLMU
- Installation Manual Chief RPM Series
- Technical Drawing Chief RPMX Series
- Technical Drawing Chief RPMXU Series
Warranty
With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.
Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
