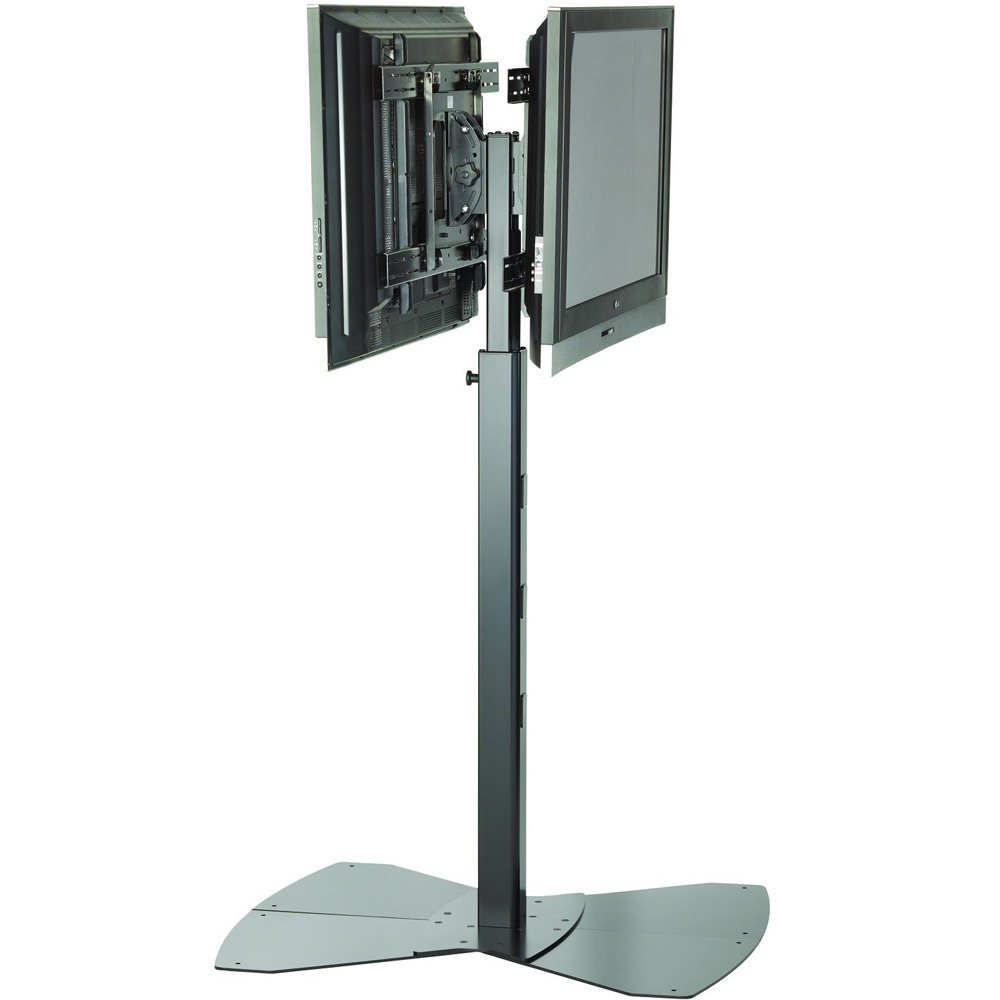

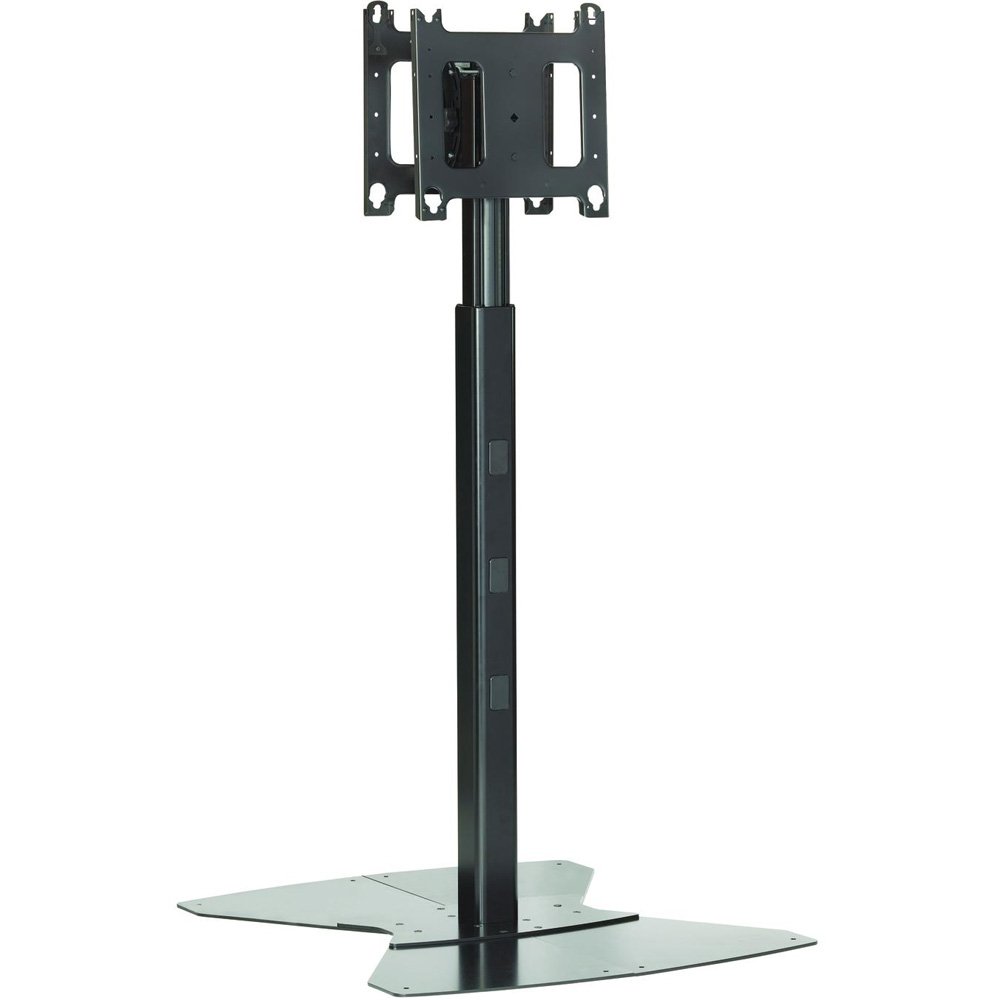

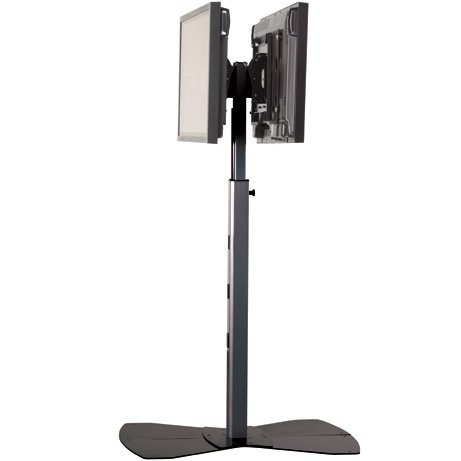

Chief PF2UB Large Dual Display Floor Stand (42-71")
LCD Computer Monitor Flat Panel Floor Stand
Description
Chief PF2 AV stand supports two displays back-to-back and features telescoping height adjustment and integrated cable management.
Ideal for digital signage and corporate presentations
Technical Drawing
Specifications
|
Center of Display to Floor/Table Range |
51.38 - 85.38" (1305 - 2169mm) |
|
Color |
Black |
|
Manual Height Adjustment |
34" |
|
Mounting Pattern Compatibility (Universal Versions) |
200 x 200mm - 862 x 517mm |
|
Orientation |
Landscape, Portrait |
|
Overall Dimensions (H x W x D) |
94.5" x 36.0" x 43.0" (2400 x 914 x 1092mm) |
|
Post-Installation Leveling (Roll) |
Yes |
|
Shipping Weight |
197.00 lbs |
|
Solution Type |
Universal |
|
Tilt |
+ 15°, - 15° |
|
Typical Screen Sizes |
42 - 71" |
|
Weight Capacity |
200 lbs (90.7kg) per display |
Features
- Centris Technology provides effortless, fingertip tilt
- Screen angle stays set in place until you decide to re-adjust
- Provides telescoping height adjustment without tools
- ClickConnect Technology provides an audible click to confirm that the flat panel is locked in place
- Offers quick connect/disconnect with no tools necessary
- Includes integrated security with the addition of a padlock
- Screen can be installed in portrait or landscape orientation (PAC400 accessory can be used to rotate without removing the screen)
- Integrated cable management with flexible covers to hide cables out of sight for a fast, clean installation
- Flat, angled base makes corner positioning easy
Product Options/Accessories
Frequently Asked Questions
Yes. Up to three PAC710 adjustable-height shelves can be used with the floor stand (must be ordered separately).
No. A new travel case, the PAC700, is designed specifically for the new Chief mobile carts and does not correctly support the new floor stands.
No. The new Chief mobile carts and floor stands include a universal interface bracket. If you prefer, you can also order a separate custom interface bracket (MSB or PSB) designed specifically for your display.
| Model | PF2UB |
| Manufacturer | Chief Mounts |
| Part Number | PF2UB |
| UPC | 841872101132 |
| Weight | lb(s) |
| Center of Display to Floor/Table Range | 51.38 - 85.38" (1305 - 2169mm) |
| Color | Black, Silver |
| Manual Height Adjustment | 34" |
| Mounting Pattern | 200 x 200mm - 862 x 517mm |
| Overall Dimensions | 94.5" x 36.0" x 43.0" (2400 x 914 x 1092mm) |
| Shipping Weight | 197.00 lbs |
| Tilt | + 15, - 15 degree |
| Monitor Size | 42 - 71" |
| Weight Capacity | 200 lbs (90.7kg) per display |
| Mounting Options | Floor Stand |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 0
Warranty
With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.
Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
