Chief MFCUB or MFCUS Medium Lightweight Mobile Cart (30-55")

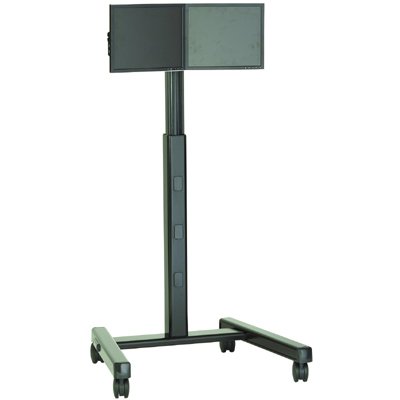

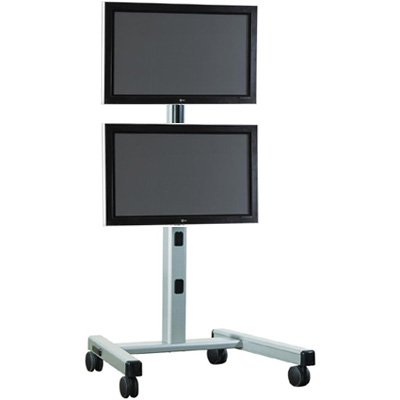

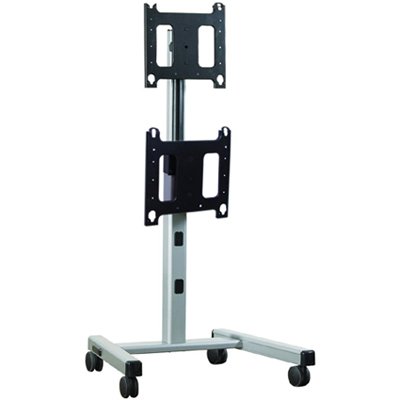

Cart comes with one TV mount. Dual Display Mounting Accessory (MAC720) sold separately for 2nd TV. Please see Accessories.
Related Products
|
Part Number |
Description |
|
MFCUB |
Black Universal Flat Panel Mobile Cart for 30 to 55" Displays |
|
MFCUS |
Silver Universal Flat Panel Mobile Computer Cart for 30 to 55" Displays |
Description

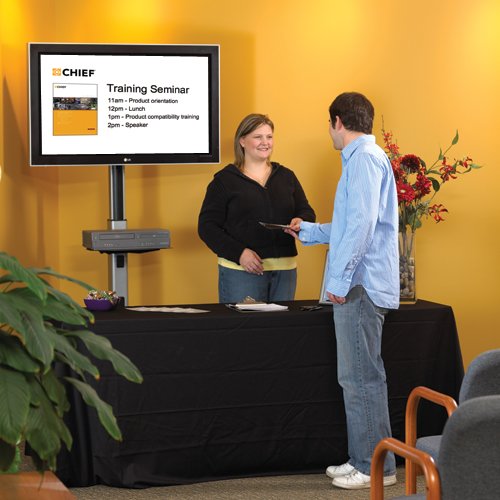

Chief MFCU is a lightweight, mobile AV cart with a collapsible design that is perfect for rental and staging to corporate applications.

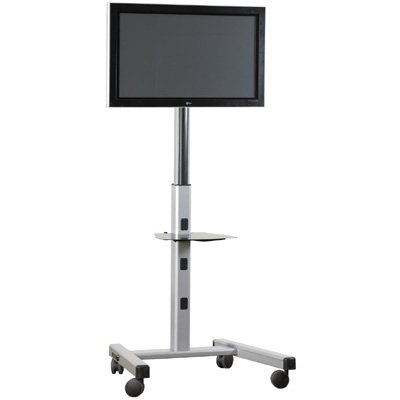

Shelf accessory must be ordered separately, PAC710 height-adjustable accessory shelf shown

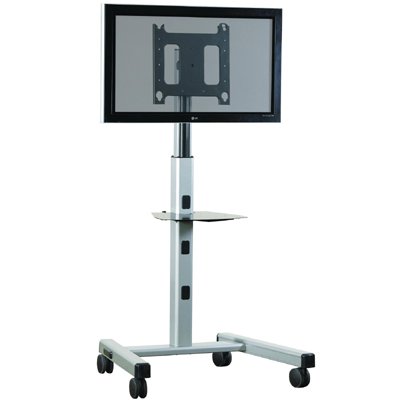

MFCUB and MFCUS ship with a universal interface bracket
MFC6000B and MFC6000S require an MSB interface to be purchased separately
Technical Drawing
MSBU
Specifications
|
Center of Display to Floor/Table Range |
48 - 72" (1219 - 1829mm) |
|
Certifications |
UL Listed |
|
Color |
Black, Silver |
|
Manual Height Adjustment |
24" |
|
Mounting Pattern Compatibility (Universal Versions) |
100 x 100mm - 709 x 431mm |
|
Orientation |
Landscape, Portrait |
|
Overall Dimensions (H x W x D) |
77.8" x 37.1" x 32.1" (1975 x 943 x 816mm) |
|
Post-Installation Leveling (Roll) |
Yes |
|
Shipping Weight |
64.00 lbs |
|
Solution Type |
Universal |
|
Tilt |
+ 15°, - 15° |
|
Typical Screen Sizes |
30 - 55" |
|
Weight Capacity |
125 lbs (56.7kg) |
Features

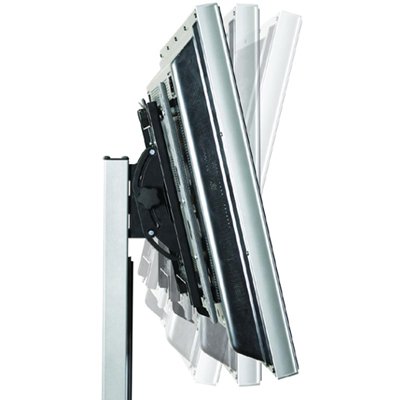

- Centris Technology provides effortless, fingertip tilt
- Screen angle stays set in place until you decide to re-adjust

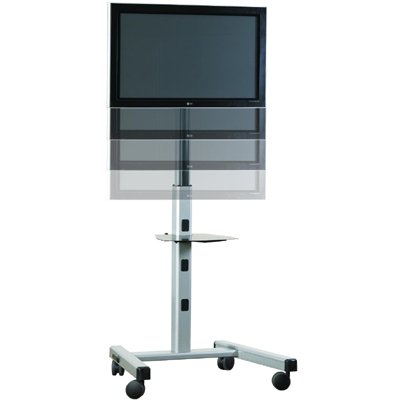

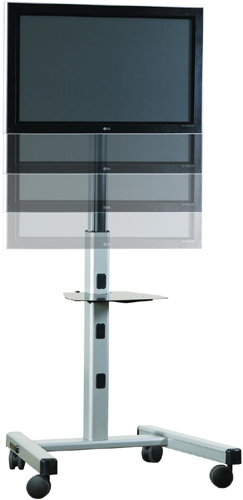

- Provides telescoping height adjustment without tools
- ClickConnect Technology provides an audible click to confirm that the flat panel is locked in place
- Offers quick connect/disconnect wtih no tools necessary
- Includes integrated security with the addition of a padlock
- Screen can be installed in portrait or landscape orientation (MAC400 accessory can be used to rotate without removing the screen)
- Integrated cable management with flexible covers to hide cables out of sight for a fast, clean installation
- Smooth rolling casters for effortless positioning (2 locking casters)
- Unique, angled base makes corner positioning easy
Product Options/Accessories
Frequently Asked Questions
Yes. Up to three PAC710 heigh-adjustable shelves can be used with the mobile cart (must be ordered separately).
Yes. The PAC700 travel case is designed specifically for the new Chief mobile carts.
The MFCUB & MFCUS both ship with a universal interface bracket, please see MountFinder to ensure your screen is compatible. The MFC6000B and MFC6000S require an MSB interface bracket to be purchased separately. Please see MountFinder to find the correct MSB interface bracket for your screen.
| Model | MFCUB, MFCUS |
| Manufacturer | Chief Mounts |
| Part Number | MFCUB or MFCUS |
| UPC | 841872100647 |
| Weight | lb(s) |
| Center of Display to Floor/Table Range | 48 - 72" (1219 - 1829mm) |
| Color | Black, Silver |
| Manual Height Adjustment | 24" |
| Mounting Pattern | 100 x 100mm - 709 x 431mm |
| Overall Dimensions | 77.8" x 37.1" x 32.1" (1975 x 943 x 816mm) |
| Shipping Weight | 64.00 lbs |
| Tilt | + 15, - 15 degree |
| Monitor Size | 30 - 55" |
| Weight Capacity | 125 lbs (56.7kg) |
| Mounting Options | Cart |
