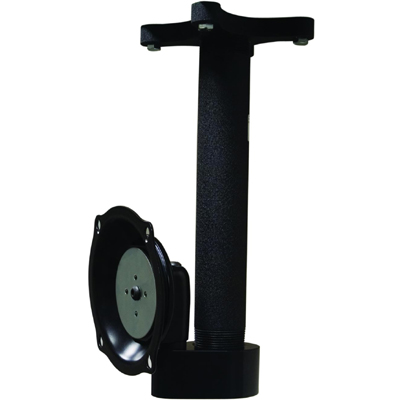

Chief JHS Series Medium Flat Panel Single Ceiling Mount (26-45")

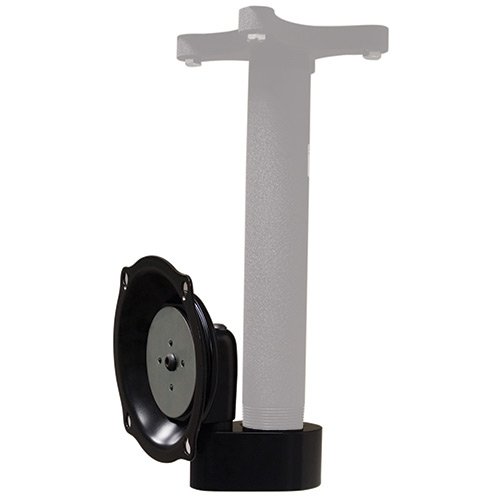

Ceiling Mount LCD Monitor Arm. Extension column and ceiling plate are required and must be ordered separately.
Related Products
|
Part Number |
Description |
|
JHSVB |
Black Flat Panel Single Ceiling Mount for 26 to 45" Displays. It attaches to monitors with Standard 400 x 400 mm VESA. This adaptor is adjustable so it can be attached to any monitor with VESA from 200 to 400 even in between sizes. |
|
JHSUB |
Black Universal Flat Panel Single Ceiling Mount for 26 to 45" Displays. It attaches to monitors with Standard 200 x 200 mm or 200 x400mm VESA |
|
JHS210B |
Black Custom Flat Panel Single Ceiling Mount for 26 to 45" Displays. It attaches to monitors with Standard 100 x 100 mm VESA |
|
JHS210S |
Silver Custom Single Ceiling Mount for 26 to 45" Flat Panel Displays. It attaches to monitors with Standard 100 x 100 mm VESA |
Description

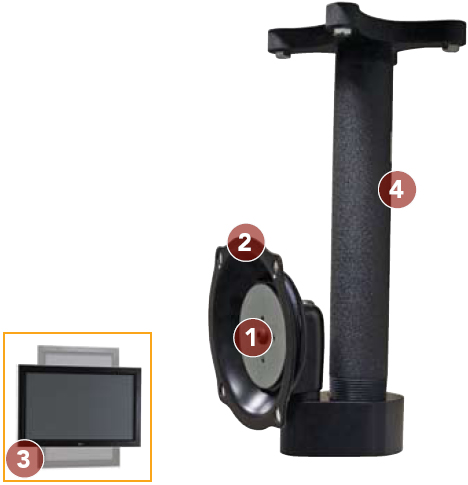

Chief JHS series single-screen ceiling mount for flat panel displays that combines Chief's exclusive Centris tilt with quick ceiling mount installation.
Ceiling plate and extension column (Adjustable and Fixed) are required and must be ordered separately to fit your specific installation requirements

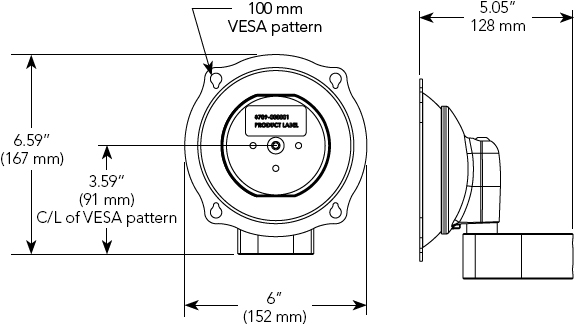

Technical Drawing
Specifications
|
Certifications |
UL Listed |
|
Color |
Black |
|
Mounting Pattern Compatibility (Universal Versions) |
100 x 100mm - 400 x 400mm |
|
Orientation |
Landscape, Portrait |
|
Overall Dimensions (H x W x D) |
6.0" x 6.6" x 5.1" (152 x 167 x 128mm) |
|
Pivot (numerical value) |
Yes |
|
Post-Installation Leveling (Roll) |
Yes |
|
Shipping Weight |
JHS210: 7.00 lbs JHSUB: 8.40 lbs JHSVB: 10.00 lbs |
|
Solution Type |
Universal |
|
Tilt |
+ 15°, - 15° |
|
Typical Screen Sizes |
26 - 45" |
|
Weight Capacity |
75 lbs (34.kg) |
Features
- Exclusive Centris Technology fingertip tilt self-adjusts to securely hold different display weights
- Screen angle stays set in place until you decide to re-adjust
- Post-installation leveling with no tools necessary
- Fast and easy screen positioning with lockdown capability
- Portrait and landscape mounting capability
- Easily route cables through 1.5" NPT extension column
- Set screw security
- Universal models available for VESA 100 x 100 mm up to 400 x 400 mm mounting patterns
- MSB interface bracket can be purchased separately for non-VESA compatible screens
Product Options/Accessories
| Model | JHS Series |
| Manufacturer | Chief Mounts |
| Part Number | JHS Series |
| UPC | 841872100548 |
| Weight | lb(s) |
| Mounting Options | Ceiling |
| Monitor Arm Types | 1 Monitor |
| Color | Black |
| Mounting Pattern | 100 x 100mm - 400 x 400mm |
| Overall Dimensions | 6.0" x 6.6" x 5.1" (152 x 167 x 128mm) |
| Shipping Weight | JHSVB: 10.00 lbs, JHSUB: 8.40 lbs, JHS210: 7.00 lbs |
| Tilt | + 15, - 15 degree |
| Monitor Size | 26 - 45" |
| Weight Capacity | 75 lbs (34.kg) |
