Chief MWCV Medium Tilt Wall Mount with CPU Storage (26-55")
More shipping >
Description
Chief MWCV provides an all-in-one tilt wall mount solution for both a medium-sized flat panel display and CPU or receiver.
An ideal solution for digital signage applications

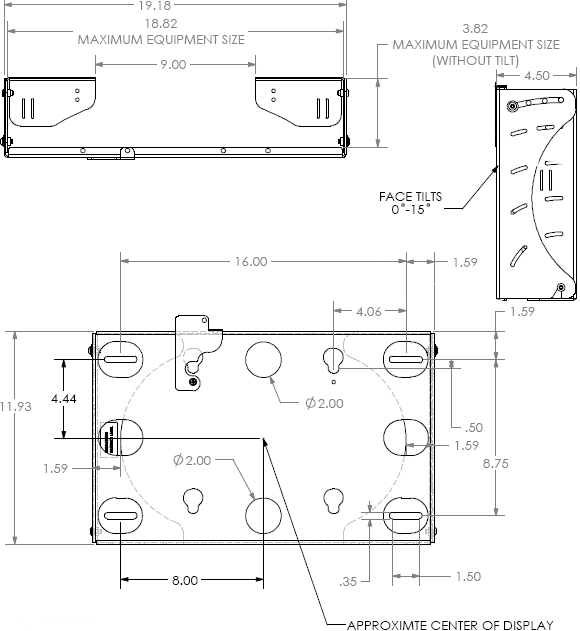

Technical Drawing
MSBV
Specifications
|
Color |
Black |
|
Lateral Shift |
1.5" (38.1mm) |
|
Max Equip Size (H X W X D) |
14" x 18.82" x 3.82" (356 x 478 x 97 mm) |
|
Maximum Screen Thickness |
6" |
|
Minimum Depth |
4.5" (114.3mm) |
|
Mounting Pattern Compatibility (Universal Versions) |
100 x 100mm ,200 x 100mm, 200 x 200mm, 400 x 200mm |
|
Notes |
TAA Compliant |
|
Orientation |
Landscape, Portrait |
|
Overall Dimensions (H x W x D) |
11.9" x 19.2" x 4.5" (303 x 487 x 114mm) |
|
Shipping Weight |
19.75 lbs |
|
Solution Type |
Universal |
|
Tilt |
+ 0°, - 15° |
|
Typical Screen Sizes |
26 - 55" |
|
Wall Stud Compatibility (inches) |
16" |
|
Weight Capacity |
100 lbs (45.4kg) |
Features
- Complete solution designed to easily integrate a media player into a flat panel installation
- Provides lockable tilt at 0, 5, 10 and 15º
- Integrated lateral shift up .75" left or right of 16" center stud system
- 200 mm Q-Latch installation
- Screen can be installed in portrait or landscape orientation (PAC400 or MAC400 accessory can be used to rotate without removing the screen)
- TAA Compliant
Frequently Asked Questions
| Model | MWCV |
| Manufacturer | Chief Mounts |
| Part Number | MWCV |
| UPC | 841872072715 |
| Weight | lb(s) |
| Color | Black |
| Lateral Shift | 1.5" (38.1mm) |
| Max Equipment Size (H X W X D) | 14" x 18.82" x 3.82" (356 x 478 x 97 mm) |
| Maximum Screen Thickness | 6" |
| Minimum Depth | 4.5" (114.3mm) |
| Mounting Pattern | 100 x 100mm ,200 x 100mm, 200 x 200mm, 400 x 200mm |
| Overall Dimensions | 11.9" x 19.2" x 4.5" (303 x 487 x 114mm) |
| Shipping Weight | 19.75 lbs |
| Tilt | + 0, - 15 degree |
| Monitor Size | 26 - 55" |
| Wall Stud | 16" |
| Weight Capacity | 100 lbs (45.4kg) |
| Mounting Options | Wall |
