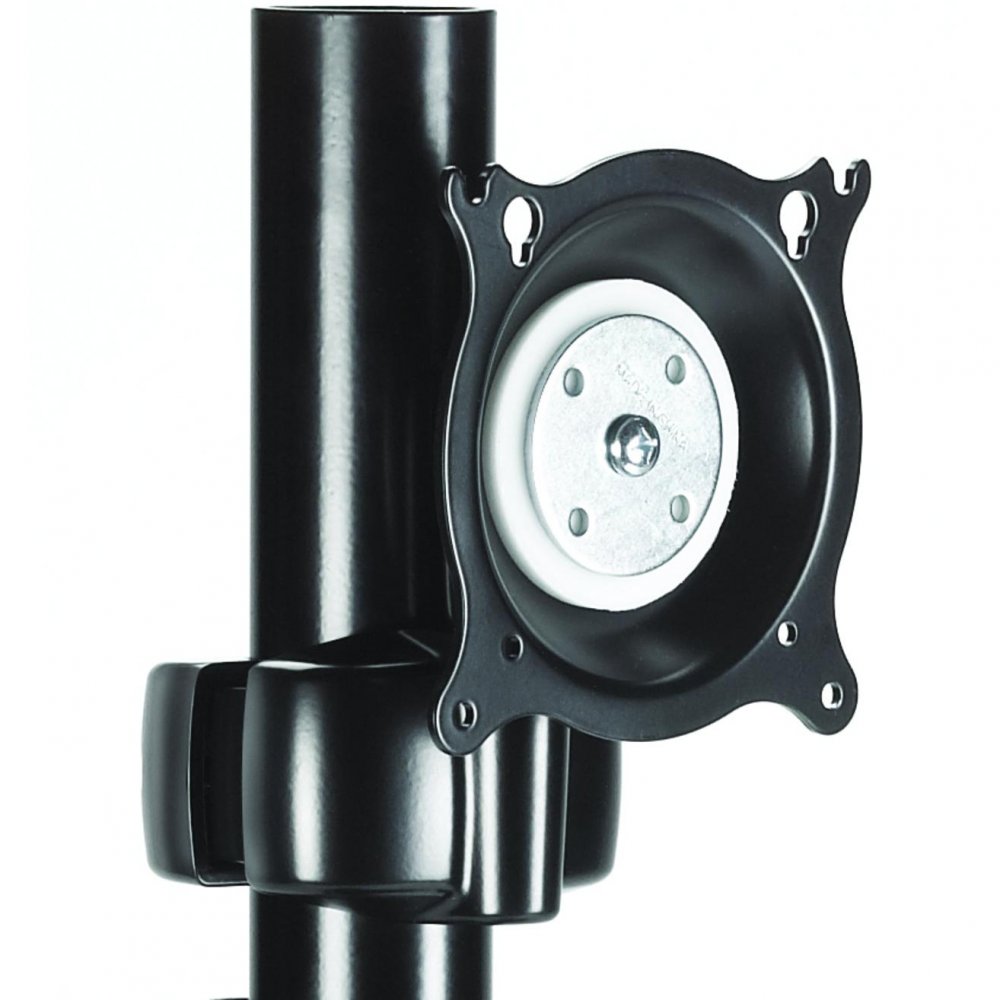

Chief Pivot or Tilt Pole Mount - KPP110B or KPP110S
Pole Mount LCD Monitor Arm
Description

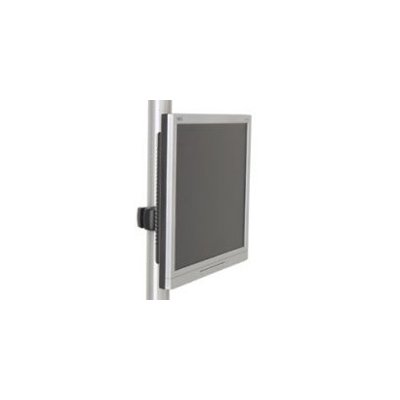

Chief KPP110 easily attaches monitors to a pole and provides smooth pivot and tilt adjustment for optimal viewing of small flat panel TVs, LCDs or monitors.
Quick to install and easy to use, providing a great pole mount solution for installing any flat panel monitor.

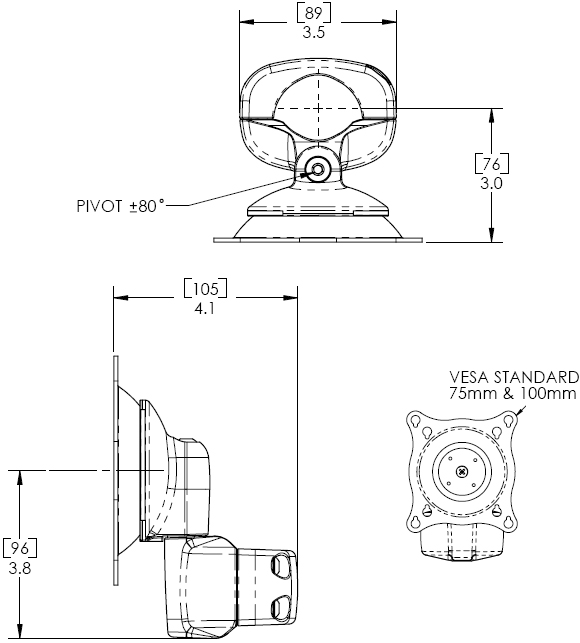

Technical Drawing
Specifications
| Color | Black, Silver |
| Minimum Depth | 2.94" (74.7mm) |
| Mounting Pattern Compatibility (Universal Versions) | VESA 75 x 75mm, 100 x 100mm |
| Number of Monitors | 1 |
| Overall Dimensions (H x W x D) | 4.7" x 6.4" x 4.2" (119 x 162 x 106mm) |
| Pole Diameter Range | 1.75 - 2" (44.5 - 51mm) |
| Post-Installation Leveling Roll | Yes |
| Shipping Weight | 4 lbs (1.81 kg) |
| Solution Type | Universal |
| Tilt | + 15° , - 15° |
| Typical Screen Sizes | 10 - 30" (254 - 762 mm) |
| Weight Capacity | 40 lbs (18.1 kg) |
| Orientation | Landscape, Portrait |
Features
Centris Technology provides smooth, fingertip tilt in all directions using the screen's center of gravity
Portrait and landscape rotation and side-to-side pivot
Friction-adjustable pivot points for customized movement
Flexible installation! Allows installation on pre-existing poles with 1.75 - 2" (44.5 - 51 mm) outer diameters
Teardrop hole pattern makes mounting the screen quick and easy
Ships fully assembled
Easy cable management through predefined pathway inside arms
VESA 75 x 75 mm or 100 x 100 mm compatible
| Model | KPP110B, KPP110S |
| Manufacturer | Chief Mounts |
| Part Number | KPP110B, KPP110S |
| UPC | 841872093123 |
| Weight | lb(s) |
| Color | Black and Silver |
| Minimum Depth | 2.94" (74.7mm) |
| Mounting Pattern | 75 x 75mm, 100 x 100mm |
| Overall Dimensions | 4.7" x 6.4" x 4.2" (119 x 162 x 106mm) |
| Pole Diameter | 1.75 - 2" (44.5 - 51mm) |
| Shipping Weight | 4 lbs (1.81 kg) |
| Tilt | + 15 degree, - 15 degree |
| Screen Size | 10 - 30 in |
| Weight Capacity | 40 lbs (18.1 kg) |
| Orientation | Landscape, Portrait |
| Number of Monitors | 1 Monitor |
| Mounting Options | Pole |
| Monitor Arm Types | 1 Monitor |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 0
Warranty
With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.
Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
