$419.00

Peerless PLB1 Plasma and LCD Dual Screen Back to Back PLA Ceiling Mounts without Adpater PLB-1

Product ID 14500
Peerless PLB1 Plasma and LCD Dual Screen Back to Back PLA Ceiling Mounts without Adpater PLB-1
Peerless PLB1 Plasma and LCD Dual Screen Back to Back PLA Ceiling Mounts without Adpater PLB-1



Peerless PLB1 Plasma and LCD Dual Screen Back to Back PLA Ceiling Mounts without Adpater PLB-1

Accessories for PLB-1 Flat Panel Dual Screen Ceiling Mounts





Columns, Ceiling Plates and PLP Adapter Plates



Peerless ADD101 Fixed and Adjustable Extension Columns

ADD101 Fixed and Adjustable Extension Columns

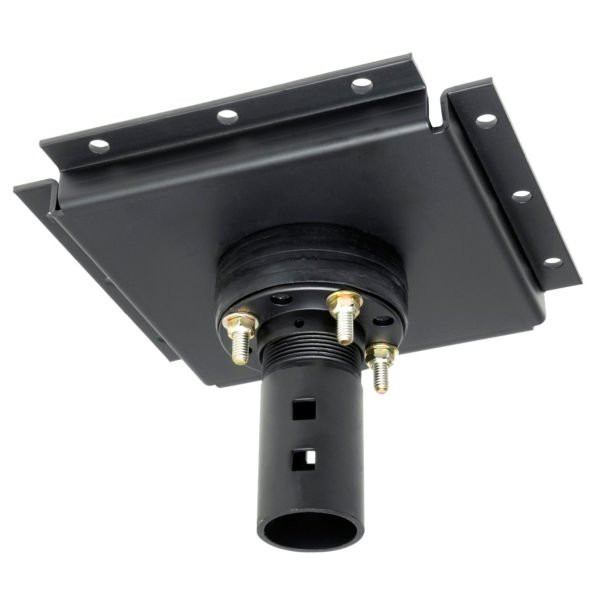

Peerless DCS400 Multi-Display Structural Ceiling Stress Decoupler DCS-400

DCS400 Structural Ceiling Stress Decoupler

Peerless DCT300 Multi-Display Truss Ceiling Stress Decoupler DCT 300

DCT300 Ceiling Stress Decoupler

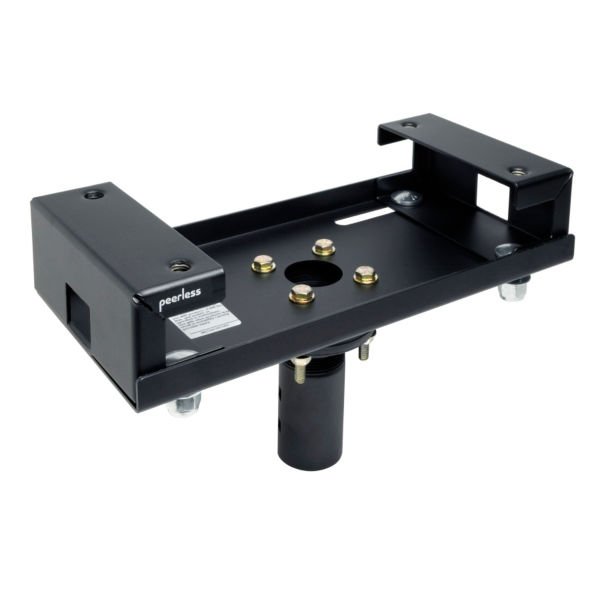

Peerless DCT500 Multi-Display I-Beams Clamps

DCT500 DCT600 DCT700 DCT800 DCT900 I-Beams Clamps

Peerless PLP-UNL Universal Screen Adapter for 23

PLP-UNL Universal Screen Adapter for LCD







Peerless PLB1 Plasma and LCD Dual Screen Back to Back PLA Ceiling Mounts without Adpater PLB-1



General Information

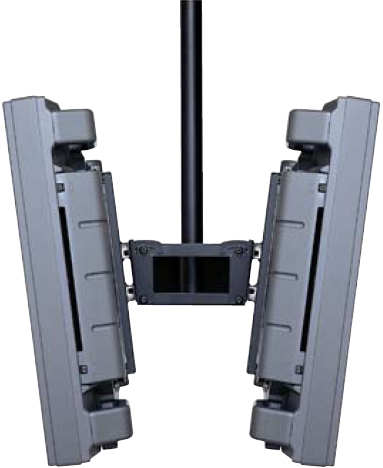

Peerless PLB1 Flat Panel Dual Screen Ceiling Mounts for for 30 to 50 inch Plasmas and LCDs



Peerless PLB-1 Flat Panel Dual Screen Ceiling Mounts for 30 to 50 inch Plasmas and LCDs

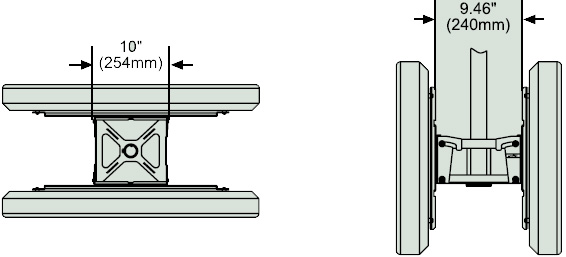

Dimensional Diagram for Peerless PLB1 Flat Panel Dual Screen Mounts



Dimensional Diagram for Peerless PLB1 Flat Panel Dual Screen Mounts









Flat Panel Dual Screen Mount Description:

Peerless’ Dual Screen Mount is designed to safely support two plasma or large LCD screens. The back-to-back design displays screens perfectly for retail or commercial environments. Requires two PLP adapter plates, ADD model extension column and DCS or DCT model ceiling plate, sold separately.



Features:

  • Supports 30" to 50" screens

  • Full unit swivels 360° with swivel stop feature

  • 20° forward tilt for each screen

  • Screen mounts horizontally or vertically

  • Requires extension column and ceiling plate, sold separately

Product Information:

Model

PLB-1

Dimensions

(W x H x D) 10" x 5.4" x 9.46" (25.4 x 13.7 x 24 cm)

Tilt

20°

Swivel

360°

Max. Load

300 lb (136 kg)

Shipping Weight

21 lb (9.5 kg)

Mounting Surfaces

Virtually all ceiling structures



Additional Image:

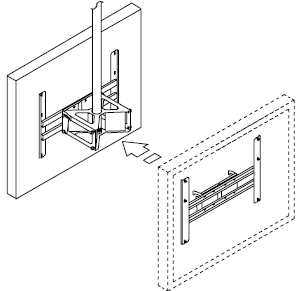

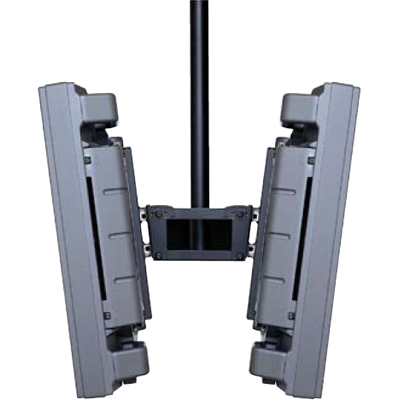

PLB1 - Dual Screen Ceiling Mounts









Literature (Please open the following documents for more technical information)

Description

File Type

Catalog Page

reader-14.jpg - pdf

Technical data

reader-14.jpg - pdf

Installation Sheet

reader-14.jpg - pdf














Product Options/Accessories

Model PLB1
Manufacturer Peerless Mounts
Part Number PLB1
UPC 735029215233
Weight lb(s)
Mounting Options Ceiling
Screen Size 30" and smaller in
Screen Size 31-45" in
Screen Size 46-60" in
