Peerless SP850 or SP850P Pull-out Pivot Wall Mount, 32-80" Display
More shipping >
Description

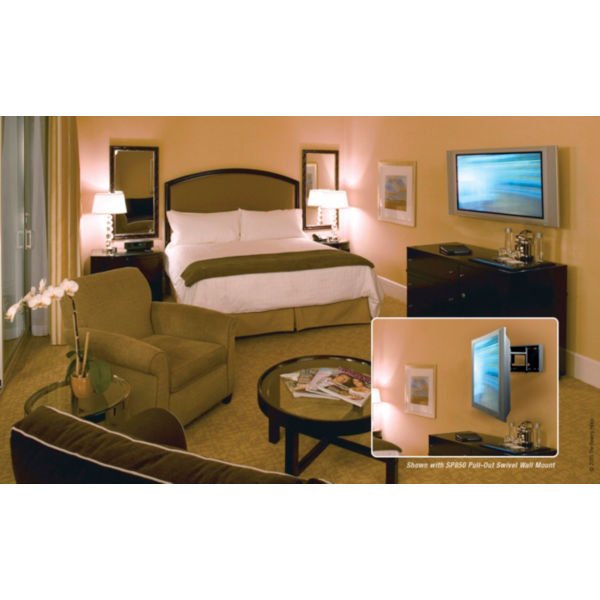

Peerless SP850 Pull-Out Pivot Mount combines the best features of a wall mount and a pivot arm. In the closed position, the SP850 acts as a flat or tilting wall mount. At only 2.31" from the wall, its unique wall plate and built-in cable management neatly hide all components and cords. Extended, the SP850’s sturdy arm construction smoothly glides the display out 10.68" from the wall and allows the flat panel display to pivot up to 45°. This feature not only enables the display to be positioned for an optimal viewing angle, but it also provides easy access to the back of the display for hassle-free maintenance. The SP850 is also ideal in applications where the display needs to be recessed into the wall, custom framed or aligned into a multi-display wall.
Technical Drawing
Specifications
| Color | Black |
| Finish | Powder Coat |
| Minimum to Maximum Screen Size | 32" to 80" |
| VESA Pattern | 100 x 100, 200 x 100 |
| Weight Capacity | 150 lbs (68.0kg) |
| Distance from Wall | 2.31 - 10.68" (59 - 271mm) |
| Increlock Increments | 0, 5, 10 degree |
| Mounting Pattern | 100 x 100, 200 x 100mm (3.94 x 3.94, 7.87 x 3.94") |
| Roll | +1 / -1 degree |
| Security Features | Security Hardware |
| Swivel Yaw | +45 / -45 degree |
| Tilt | 0, 5, 10 degree |
| Package Contents |
|
| Product Dimensions | 21.00" x 9.76" x 2.31"-10.68" (533 x 248 x 59-271mm) |
| Product Weight | 17.6 lbs (7.98kg) |
| Shipping Dimensions | 12.00" x 2.75" x 33.00" (304.8 x 69.85 x 838.2mm) |
| Shipping Weight | 22.7 lbs (10.24kg) |
| UPC Code |
|
Features
Mounts to 16" wood studs, concrete and cinder block
Lock-out screw prevents unwanted extension
±1° of roll for horizontal display leveling during installation
IncreLok tilt provides tilt at 0°, 5° and 10°
2.31" (59mm) deep when retracted, pivot arms extend up to 10.68" (271mm) when extended
Clean profile design hides wiring and mount within the enclosed wall plate
Universal models adapt to displays with mounting holes up to 730 x 433mm (28.75"W x 17.05"H)
Easy pull-out pivot provides quick maintenance access
Dedicated models include VESA 100 and 200 x 100mm compliant adaptor plate (PLP or LC model adaptor plate required for non-VESA displays)
Built in pivot up to 90° (45° in each direction) allows for adjustable viewing angles
Lock Key installation tool secures arms for display installation
Product Options/Accessories
Frequently Asked Questions
| Model | SP850, SP850P |
| Manufacturer | Peerless Mounts |
| Part Number | SP850, SP850P |
| UPC | 735029240297 |
| Weight | lb(s) |
| Color | Black |
| Monitor Size | 32" to 80" |
| Weight Capacity | 150 lbs (68.0kg) |
| Distance From Wall | 2.31 - 10.68" (59 - 271mm) |
| Mounting Pattern | 100 x 100, 200 x 100mm (3.94 x 3.94, 7.87 x 3.94") |
| Roll | +1 / -1 degree |
| Swivel | +1 / -1 degree |
| Tilt | 0, 5, 10 degree |
| Dimensions | 21.00" x 9.76" x 2.31"-10.68" (533 x 248 x 59-271mm) |
| Weight | 17.6 lbs (7.98kg) |
| Shipping Dimensions | 12.00" x 2.75" x 33.00" (304.8 x 69.85 x 838.2mm) |
| Shipping Weight | 22.7 lbs (10.24kg) |
| Mounting Options | Wall |
| Number of Monitors | 1 Monitor |
| Finish | Powder Coat |
| Warranty | Limited 5 year |
