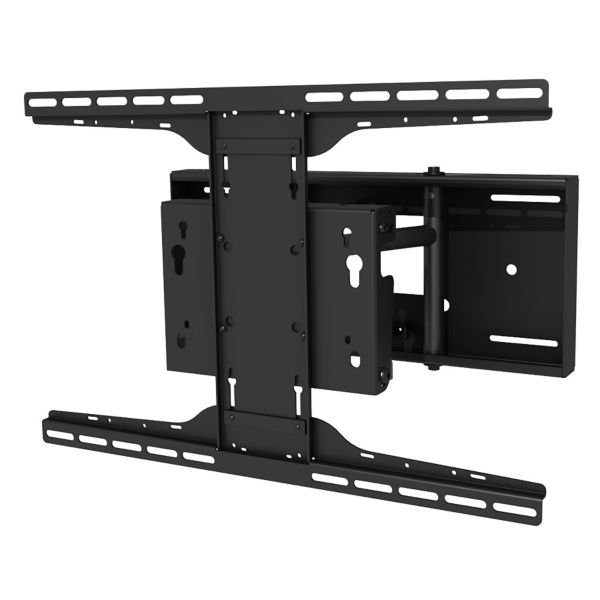

Peerless SP850-UNL/SP850-UNLP Universal Pull-out Pivot Wall Mount
Description

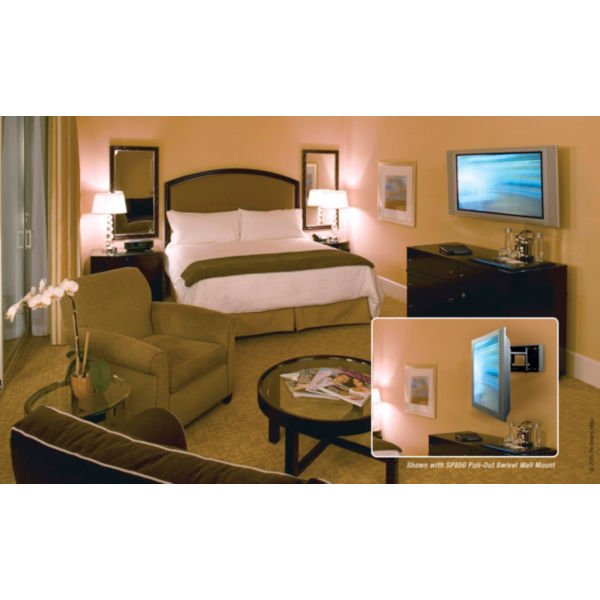

Peerless SP850-UNL Pull-Out Pivot Mount combines the best features of a wall mount and pivot arm. When closed, the SP850 acts as a flat or tilting wall mount. At only 2.73" (69mm) from the wall, its unique wall plate and built-in cable management neatly hide all components and cords. Extended, the SP850’s sturdy arm construction smoothly glides the display out 11.18" (284mm) from the wall and allows the display to pivot up to 45°. The SP850 is ideal in applications where the display needs to be recessed into the wall, custom framed, or aligned into a multi-display wall.
Helpful Hints: The SP850 provides optimum viewing capabilities, offering 90° of pivot for flexible display positioning.
Technical Drawing
Specifications
| Color | Black |
| Finish | Powder Coat |
| Minimum to Maximum Screen Size | 32" to 80" |
| VESA Pattern | 600 x 400 |
| Weight Capacity | 150 lbs (68.0kg) |
| Distance from Wall | 2.73 - 11.18" (69 - 284mm) |
| Increlock Increments | 0, 5, 10 degree |
| Mounting Pattern | 600 x 400mm (28.75 x 15.95") |
| Roll | +1 / -1 degree |
| Security Features | Security Hardware |
| Swivel Yaw | +45 / -45 degree |
| Tilt | 0, 5, 10 degree |
| Package Contents |
|
| Product Dimensions | 24.38" x 16.78" x 2.73"-11.18" (619 x 428 x 69-284mm) |
| Product Weight | 30.4 lbs (13.8kg) |
| Shipping Dimensions | 12.00" x 4.69" x 32.00" (304.8 x 119.13 x 838.2mm) |
| Shipping Weight | 33.9 lbs (15.4kg) |
| UPC Code |
|
Features
Lock-out screw prevents unwanted extension
LockKey installation tool secures arms for display installation
±1° of roll for horizontal display leveling during installation
IncreLok tilt provides tilt at 0°, 5° and 10°
Universal models adapt to displays with mounting holes up to 600 x400 (23.62" W x 15.75" H)
Dedicated models include VESA 100 and 200 x 100mm compliant adaptor plate (PLP or LC model adaptor plate required for non-VESA displays)
Easy pull-out pivot provides quick maintenance access
Built in pivot up to 90° (45° in each direction) allows for adjustable viewing angles
Mounts to 16" wood studs, concrete and cinder block
The I-shaped adaptor plate’s innovative design helps avoid blocking connections on the back of display
Product Options/Accessories
| Model | SP850-UNL, SP850-UNLP |
| Manufacturer | Peerless Mounts |
| Part Number | SP850-UNL, SP850-UNLP |
| UPC | 735029246398 |
| Weight | lb(s) |
| Mounting Options | Wall |
| Number of Monitors | 1 Monitor |
| Monitor Size | 32" to 80" |
| Mounting Pattern | 600 x 400mm (28.75 x 15.95") |
| Weight Capacity | 150 lbs (68.0kg) |
| Color | Black |
| Finish | Powder Coat |
| Distance From Wall | 2.73 - 11.18" (69 - 284mm) |
| Roll | +1 / -1 degree |
| Swivel | +45 / -45 degree |
| Tilt | 0, 5, 10 degree |
| Dimensions | 24.38" x 16.78" x 2.73"-11.18" (619 x 428 x 69-284mm) |
| Weight | 30.4 lbs (13.8kg) |
| Shipping Dimensions | 12.00" x 4.69" x 32.00" (304.8 x 119.13 x 838.2mm) |
| Shipping Weight | 33.9 lbs (15.4kg) |
| Warranty | Limited 5 year |
