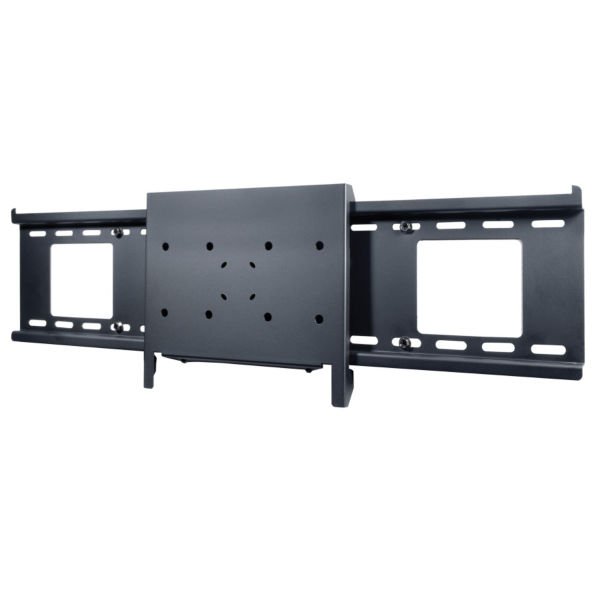

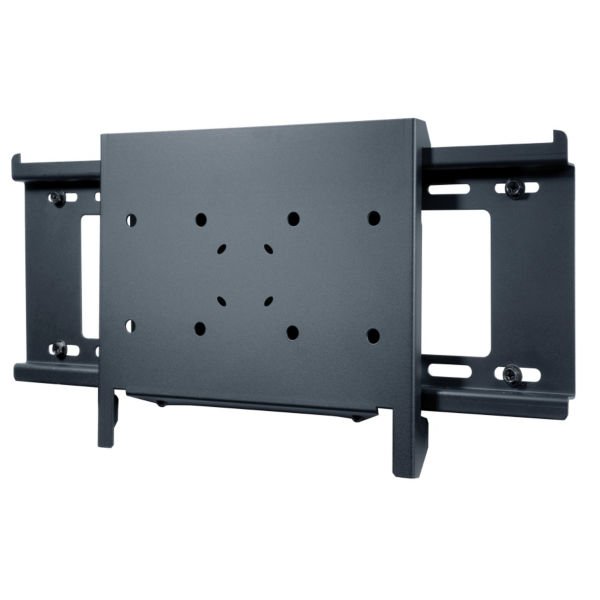

Peerless SF16D Display-Specific Flat Wall Mount up to 71"
Requires screen-specific adapter to be purchased separately.
Description
The Dedicated line provides display-specific solutions for mounting medium to large sized displays. It is compatible with Peerless-AV’s comprehensive inventory of display-specific PLP adaptor plates, ensuring a precise fit for almost any display. Additionally, installers can choose from either a wall plate for 16" stud centers, perfect for any portrait-style applications, or a more versatile wall plate for 16"-24" stud centers. All models ship pre-assembled for fast and easy installation.
Technical Drawing
Specifications
|
Minimum to Maximum Screen Size |
SF16D: 22" to 71" |
|
Weight Capacity |
200 lbs (90.0 kg) |
|
Color |
Black |
|
Finish |
Powder Coat |
|
Distance from Wall |
1.18" (30mm) |
|
Security Features |
Security Hardware |
|
Product Dimensions |
SF16D: 19.25" x 9.83" x 1.18" (489 x 250 x 30mm) |
|
Product Weight |
SF16D: 5.6 lbs (2.5 kg) |
|
Shipping Dimensions |
SF16D: 20.25" x 12.25" x 4.25" (514 x 311 x 108mm) |
|
Shipping Weight |
SF16D: 7.4 lbs (3.4 kg) |
|
Package Contents |
|
|
UPC Code |
SF16D: 735029239437 |
Features
Choose from 16" (406mm) only or 16"-24" (406-610mm) stud center wall plate
Easy-Glide design ensures display is securely attached to wall plate
Horizontal display adjustment up to 8" (203mm) for centering display on wall
Measures 1.18" (30mm) from wall, plus thickness of adaptor plate
Fits any display-specific PLP or LC adaptor plate
Model SF16D ships with 19.25" (489mm) wide wall plate, perfect for portrait style installations
Wall plate knockouts provide wall access, improving cable management options
| Model | SF16D |
| Manufacturer | Peerless Mounts |
| Part Number | SF16D |
| UPC | 735029239437 |
| Weight | lb(s) |
| Color | Black |
| Monitor Size | SF16D: 22" to 71", SF24D: 32" to 71" |
| Weight Capacity | 200 lbs (90.0 kg) |
| Distance From Wall | 1.18" (30mm) |
| Dimensions | SF16D: 19.25" x 9.83" x 1.18" (489 x 250 x 30mm), SF24D: 30.75" x 9.83" x 1.18" (781 x 250 x 30mm) |
| Weight | SF16D: 5.6 lbs (2.5 kg), SF24D: 7.1 lbs (3.2 kg) |
| Shipping Dimensions | SF16D: 20.25" x 12.25" x 4.25" (514 x 311 x 108mm), SF24D: 31.75" x 12.25" x 4.25" (807 x 311 x 108mm) |
| Shipping Weight | SF16D: 7.4 lbs (3.4 kg), SF24D: 9.3 lbs (4.2 kg) |
| Warranty | Limited 5 year |
| Mounting Options | Wall |
| Number of Monitors | 1 Monitor |
