Peerless SA740P SmartMount Articulating Wall Mount for 22" to 43" Displays
Description

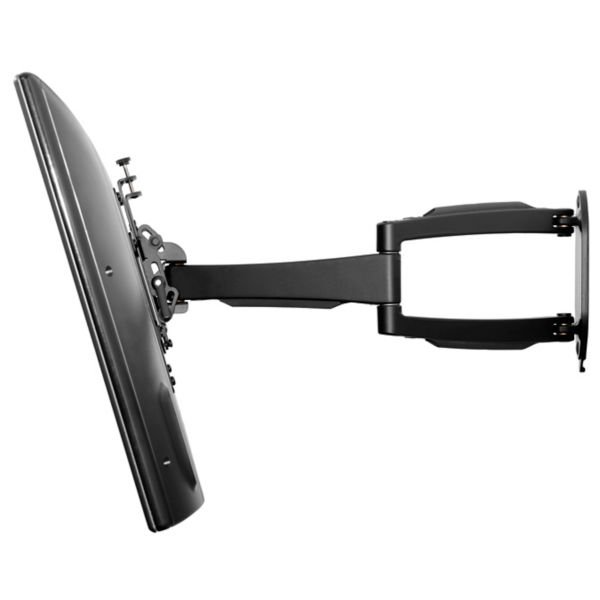

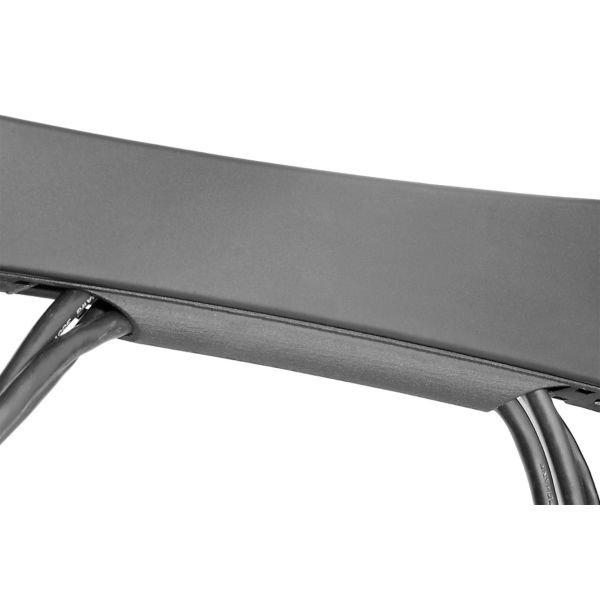

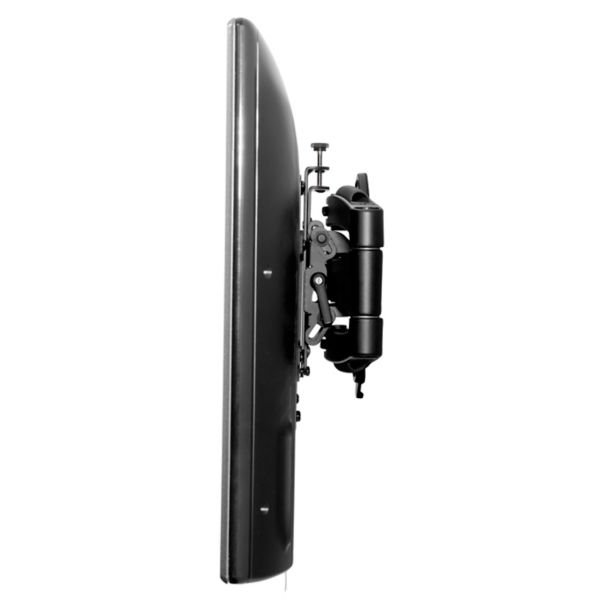

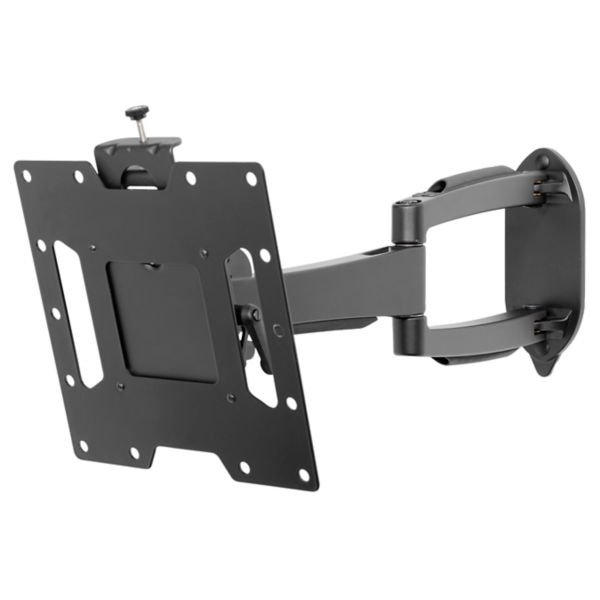

The SmartMount Articulating Wall Mount series offers the most versatile installation features and mounting options. Vertical adjustment ability allows for post installation leveling, making it easier than ever to find the perfect display position. With peerless SA740P, extend the display up to 21.80" (554mm) or fully-retract it to just 3.03" (77mm) from the wall for the perfect viewing position. The display can now simply be installed by a single person with the Hook-and-Hang system. One-Touch tilt technology offers +15°/-5° vertical tilt movement for the ideal viewing angle. Integrated cable management protects, contains and conceals cables for a clean installation.
Helpful Hints: Full-motion capabilities allow you to swivel, tilt, extend or retract your display for the perfect viewing angle.
Technical Drawing
Specifications
| Color | Black |
| Finish | High Gloss |
| Minimum to Maximum Screen Size | 22" to 40" |
| VESA Pattern |
100 x 100, 200 x 100, 200 x 200 |
| Weight Capacity | 80 lbs (36kg) |
| Distance from Wall |
3.03-21.80" (77 - 554mm) |
| Mounting Pattern |
100 x 100, 200 x 100, 200 X 200mm (3.94 x 3.94, 7.87 x 3.94, 7.87 x 7.87") |
| Roll |
+5 / -5 degree |
| Security Features | Non-Security Hardware |
| Swivel Yaw | +90 / -90 degree |
| Tilt | +15 / -5 degree |
| Package Contents |
|
| Product Dimensions |
14.32" x 10.15" x 3.03"-21.80" (364 x 258 x 77-554mm) |
| Product Weight | 7.27 lbs (3.30 kg) |
| Shipping Dimensions |
15.25" x 4.19" x 11.50" (387 x 106 x 292mm) |
| Shipping Weight | 9.35 lbs (4.24 kg) |
| UPC Code | 735029237327 |
| Model | SA740P |
| Manufacturer | Peerless Mounts |
| Part Number | SA740P |
| UPC | 735029237327 |
| Weight | lb(s) |
| Color | Black |
| Finish | High Gloss |
| Monitor Size | 22" to 40" |
| Weight Capacity | 80 lbs (36kg) |
| Distance From Wall | 3.03-21.80" (77 - 554mm) |
| Mounting Pattern | 100 x 100, 200 x 100, 200 X 200mm (3.94 x 3.94, 7.87 x 3.94, 7.87 x 7.87") |
| Roll | +5 / -5 degree |
| Swivel | +90 / -90 degree |
| Tilt | +15 / -5 degree |
| Dimensions | 14.32" x 10.15" x 3.03"-21.80" (364 x 258 x 77-554mm) |
| Weight | 7.27 lbs (3.30 kg) |
| Shipping Dimensions | 15.25" x 4.19" x 11.50" (387 x 106 x 292mm) |
| Shipping Weight | 9.35 lbs (4.24 kg) |
| Warranty | Limited 5 year |
| Number of Monitors | 1 Monitor |
| Mounting Options | Wall |
