Peerless SA730P SmartMount Articulating Wall Mount for 10"-29" Displays
Description

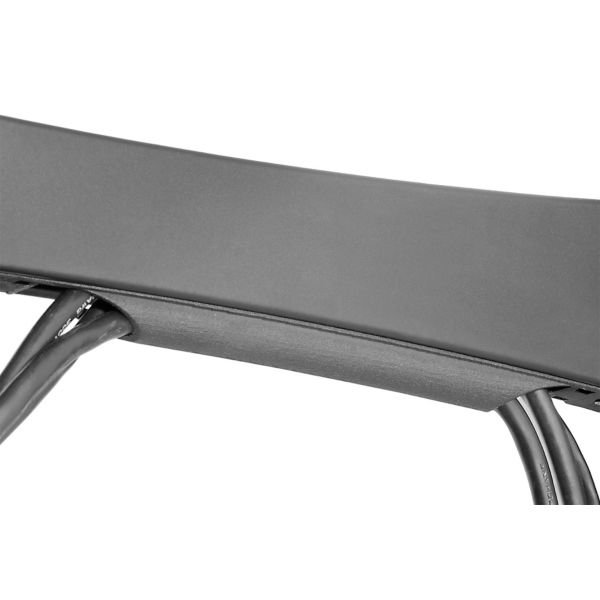

The SmartMount Articulating Wall Mount series offers the most versatile installation features and mounting options. With peerless SA730P, extend the display up to 16.99" (432mm) or fully-retract it to just 2.77" (70mm) from the wall for the perfect viewing position. The display can now simply be installed by a single person with the Hook-and-Hang system. One-Touch tilt technology offers ±35° vertical tilt movement for the ideal viewing angle. Integrated cable management protects, contains and conceals cables for a clean installation
Helpful Hints: Full-motion capabilities allow you to swivel, tilt, extend or retract your display for the perfect viewing angle.

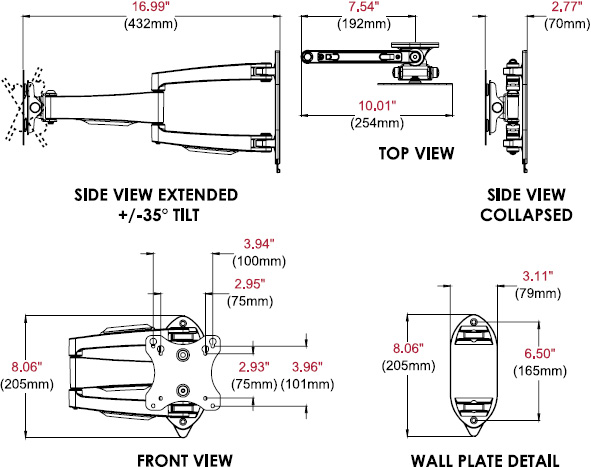

Technical Drawing
Specifications
| Color | Black |
| Finish | High Gloss |
| Minimum to Maximum Screen Size | 10" to 29" |
| VESA Pattern | 75 x 75, 100 x 100 |
| Weight Capacity | 25 lbs (11.0kg) |
| Distance from Wall | 2.77 - 16.06" (56 - 408mm) |
| Mounting Pattern |
75 x 75, 100 x 100mm (2.95 x 2.95, 3.94 x 3.94") |
| Roll |
+7 / -7 degree |
| Security Features | Non-Security Hardware |
| Swivel Yaw | +90 / -90 degree |
| Tilt | +35 / -35 degree |
| Package Contents |
|
| Product Dimensions |
10.01" x 8.06" x 2.77"-16.99" (254 x 205 x 70-432mm) |
| Product Weight | 3.55 lbs (1.61kg) |
| Shipping Dimensions |
14.13" x 3.75" x 10.38" (358 x 95 x 263mm) |
| Shipping Weight | 4.75 lbs (2.15kg) |
| UPC Code | 735029237389 |
Product Options/Accessories
| Model | SA730P |
| Manufacturer | Peerless Mounts |
| Part Number | SA730P |
| UPC | 735029237389 |
| Weight | lb(s) |
| Color | Black |
| Finish | High Gloss |
| Monitor Size | 10" to 29" |
| Weight Capacity | 25 lbs (11.0kg) |
| Distance From Wall | 2.77 - 16.06" (56 - 408mm) |
| Mounting Pattern | 75 x 75, 100 x 100mm (2.95 x 2.95, 3.94 x 3.94") |
| Roll | +7 / -7 degree |
| Swivel | +90 / -90 degree |
| Tilt | +35 / -35 degree |
| Dimensions | 10.01" x 8.06" x 2.77"-16.99" (254 x 205 x 70-432mm) |
| Weight | 3.55 lbs (1.61kg) |
| Shipping Dimensions | 14.13" x 3.75" x 10.38" (358 x 95 x 263mm) |
| Shipping Weight | 4.75 lbs (2.15kg) |
| Warranty | Limited 5 year |
| Number of Monitors | 1 Monitor |
| Mounting Options | Wall |
