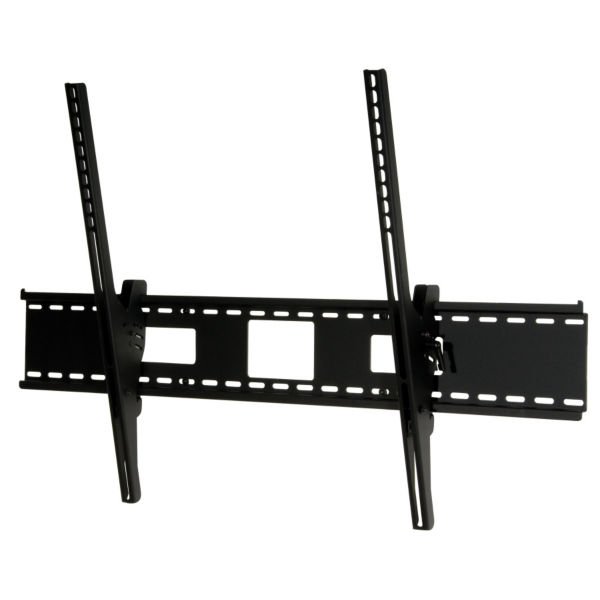

Peerless ST680 or ST680P SmartMount Universal Tilt Wall Mount
Description
Impressive installations of large to extra large flat panel displays are made
simple with Peerless ST680. Attach the pre-tensioned universal display adaptors
to the display, mount the wall plate anywhere on the wall and attach the
easy-glide display adaptors to the wall plate. The wall plate holds displays
weighing up to 350lb while featuring junction box access ports and horizontal
display adjustment up to 12" for ideal display positioning. Its exclusive
pre-tensioned display adaptor design offers quick and easy tilt viewing angle
adjustment, enabling putting the final touches on the installation to be
increasingly fast and simple.
Helpful Hints: May also fit larger displays, please reference MountFinder
for compatibility

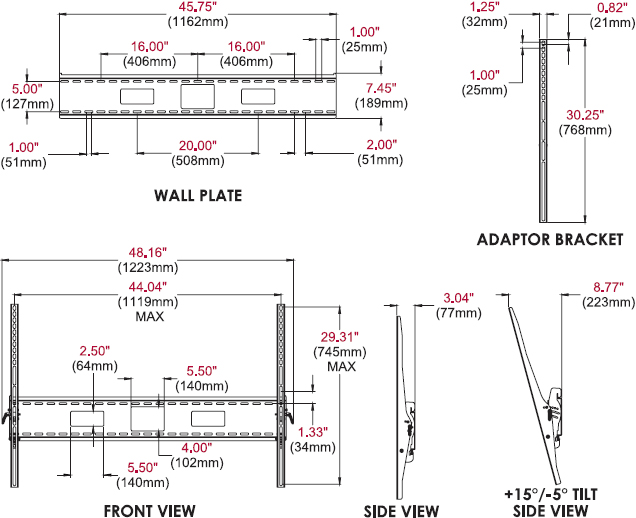

Technical Drawing
Specifications
Minimum to Maximum Screen Size |
60" to 95" |
VESA Pattern |
1000 x 600 |
Weight Capacity |
350 lbs (158.0kg) |
Color |
Black |
Finish |
Powder Coat |
Distance from Wall |
3.04 - 8.77" (77 - 223mm) |
Increlock Increments |
-5, 0, 5, 10, 15 degree |
Mounting Pattern |
1119 x 745mm (44.04 x 29.31") |
Security Features |
Security Hardware |
Tilt |
+15 / -5 degree |
Product Dimensions |
48.16" x 30.25" x 3.04"-8.77" (1223 x 768 x 77-223mm) |
Product Weight |
15.4 lbs (6.9kg) |
Shipping Dimensions |
46.75" x 8.63" x 3.88" (219 x 119 x 99mm) |
Shipping Weight |
18.2 lbs (8.2kg) |
Package Contents |
|
UPC Code |
|
Features
UL listed
Integrated security options available
Comes with Peerless-AV’s Sorted-for-You fastener pack with all necessary display attachment hardware
Mounts to wood studs, concrete, cinder block or metal studs (metal stud accessory required)
Universal display adaptors easily hook onto wall plate for fast installation
Horizontal display adjustment of up to 12" (304mm) (depending on display model) for perfect display placement
Optional IncreLok feature offers fixed angles of -5°, 0°, 5°, 10°, 15°
Easy-grip lever locks the display position into place
Pre-tensioned universal tilt display adaptors allow for tilt adjustment without the use of tools
Adjustable up to 15° of forward tilt and -5° backward tilt for optimal viewing angle
Universal mount fits displays with mounting patterns up to 1119 x 745mm (44.04''W x 29.31''H)

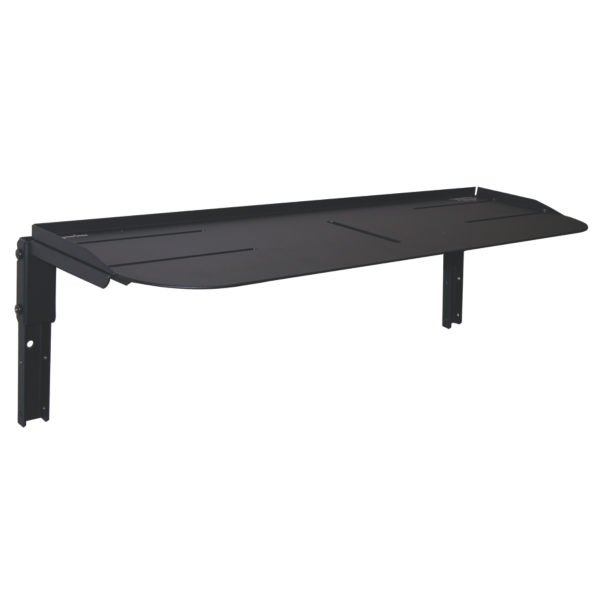

Product Options/Accessories
Model | ST680, ST680P |
Manufacturer | Peerless Mounts |
Part Number | ST680, ST680P |
UPC | 735029242314 |
Weight | lb(s) |
Color | Black |
Monitor Size | 60"-95" |
VESA | 1000 x 600 |
Weight Capacity | 350 lbs (158kg) |
Distance From Wall | 3.04 - 8.77" (77 - 223mm) |
Mounting Pattern | 1119 x 745mm (44.04 x 29.31") |
Tilt | +15 / -5 degree |
Dimensions | 48.16" x 30.25" x 3.04"-8.77" (1223 x 768 x 77-223mm) |
Weight | 15.4 lbs (6.9kg) |
Shipping Dimensions | 46.75" x 8.63" x 3.88" (219 x 119 x 99mm) |
Shipping Weight | 18.2 lbs (8.2kg) |
Warranty | Limited 5 year |
Mounting Options | Wall |
Number of Monitors | 1 Monitor |
