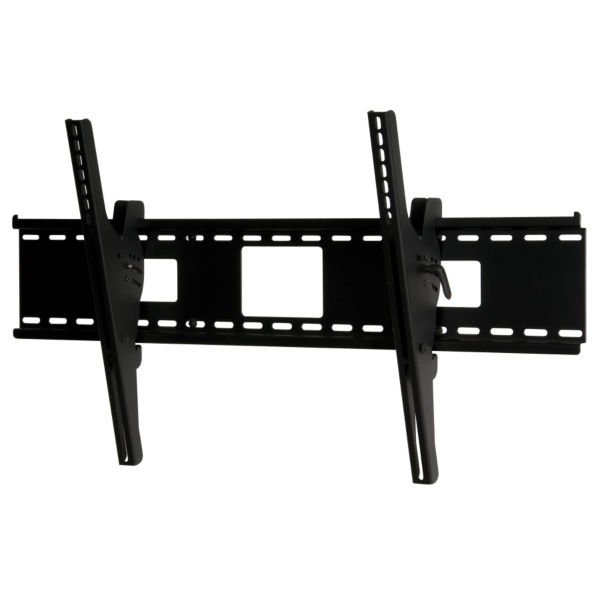

Peerless ST670 or ST670P SmartMount Universal Tilt Wall Mount
Description
Enhance the installation experience with peerless ST670. Its wall plate holds
displays weighing up to 250lb while featuring junction box access ports and
horizontal display adjustment up to 12" for ideal display positioning. Its
exclusive pre-tensioned display adaptor design offers display tilt viewing
adjustment enabling putting the final touches on the installation increasingly
fast and simple.
Helpful Hints: May also fit larger displays, please reference MountFinder for
compatibility

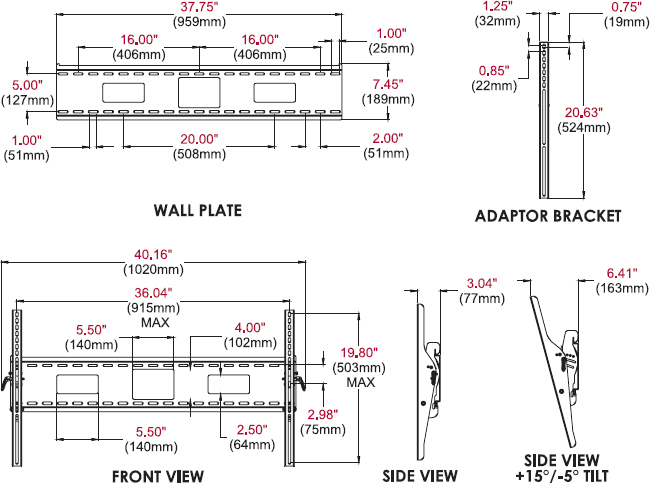

Technical Drawing
Specifications
|
Minimum to Maximum Screen Size |
46" to 90" |
|
VESA Pattern |
800 x 400 |
|
Weight Capacity |
250 lbs (113.0kg) |
|
Color |
Black |
|
Finish |
Powder Coat |
|
Distance from Wall |
3.04 - 6.41" (77 - 163mm) |
|
Increlock Increments |
-5, 0, 5, 10, 15 degree |
|
Mounting Pattern |
915 x 503mm (36.04 x 19.80") |
|
Security Features |
Security Hardware |
|
Tilt |
+15 / -5 degree |
|
Product Dimensions |
40.16" x 20.63" x 3.04"-6.41" (1020 x 524 x 77-163mm) |
|
Product Weight |
12.97 lbs (5.8kg) |
|
Shipping Dimensions |
46.75" x 8.63" x 3.88" (119 x 219 x 99mm) |
|
Shipping Weight |
15.4 lbs (6.98kg) |
|
Package Contents |
|
|
UPC Code |
|
Features
UL listed
Integrated security options available
Comes with Peerless-AV’s Sorted-for-You fastener pack with all necessary display attachment hardware
Mounts to wood studs, concrete, cinder block or metal studs (metal stud accessory required)
Universal display adaptors easily hook onto wall plate for fast installation
Horizontal display adjustment of up to 12" (304mm) (depending on display model) for perfect display placement
Optional IncreLok feature offers fixed angles of -5°, 0°, 5°, 10°, 15°
Easy-grip lever locks the display position into place
Pre-tensioned universal tilt display adaptors allow for tilt adjustment without the use of tools
Adjustable up to 15° of forward tilt and -5° backward tilt for optimal viewing angle
Universal mount fits displays with mounting patterns up to 915 x 503mm (36.04''W x 19.8''H)
Product Options/Accessories
| Model | ST670, ST670P |
| Manufacturer | Peerless Mounts |
| Part Number | ST670, ST670P |
| UPC | 735029242277 |
| Weight | lb(s) |
| Color | Black |
| Monitor Size | 46"-90" |
| VESA | 800 x 400 |
| Distance From Wall | 3.04 - 6.41" (77 - 163mm) |
| Mounting Pattern | 915 x 503mm (36.04 x 19.80") |
| Tilt | +15 / -5 degree |
| Dimensions | 40.16" x 20.63" x 3.04"-6.41" (1020 x 524 x 77-163mm) |
| Weight | 12.97 lbs (5.8kg) |
| Shipping Dimensions | 46.75" x 8.63" x 3.88" (119 x 219 x 99mm) |
| Shipping Weight | 15.4 lbs (6.98kg) |
| Weight Capacity | 250 lbs (113kg) |
| Warranty | Limited 5 year |
| Mounting Options | Wall |
| Number of Monitors | 1 Monitor |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 0
Warranties and Returns
Limited Warranty
Peerless Industries, Inc. (Peerless-AV) warrants to original end-users of
Peerless-AV products that Peerless-AV products will be free from defects in
material and workmanship, under normal use, for the periods listed below, from
the date of purchase by the original end-user. At its option, Peerless-AV will
repair or replace with new or refurbished products or parts, or refund the
purchase price of, any Peerless-AV product which fails to conform with this
warranty.
In no event shall the duration of any implied warranty of merchantability or
fitness for a particular purpose be longer than the period of the applicable
express warranty set forth above. Some states do not allow limitations on how
long an implied warranty lasts, so the above limitation may not apply to you.
This warranty does not cover damage caused by (a) service or repairs by the
customer or a person who is not authorized for such service or repairs by
Peerless-AV, (b) the failure to utilize proper packing when returning the
product, (c) incorrect installation or the failure to follow Peerless-AV’s
instructions or warnings when installing, using or storing the product, or (d)
misuse or accident, in transit or otherwise, including in cases of third-party
actions and force majeure. This warranty also does not cover corrosion or rust
resulting from damaged, scratched or chipped paint or other surfaces.
In no event shall Peerless-AV be liable for incidental or consequential damages
or damages arising from the theft of any product, whether or not secured by a
security device which may be included with the Peerless-AV product. Some states
do not allow the exclusion or limitation of incidental or consequential damages,
so the above limitation or exclusion may not apply to you.
This warranty is in lieu of all other warranties, express or implied, and is the
sole remedy with respect to product defects. No dealer, distributor, installer
or other person is authorized to modify or extend this Limited Warranty or
impose any obligation on Peerless-AV in connection with the sale of any
Peerless-AV product.
This warranty gives specific legal rights, and you may also have other rights
which vary from state to state.
| Product | Warranty Period |
| Mounts | 5 years |
| Kiosk Enclosures | 5 years |
| Furniture | 1 year |
| Cables | 25 years |
| Cleaning Products | 1 year |
| Power Products | 1 year |
| Electronic Products and Components | 1 year |
| Xtreme Displays, Ultra View TVs | 2 years |
| Interactive | 1 year |
