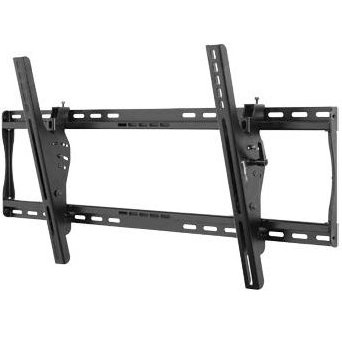

Peerless ST660 or ST660P SmartMount Universal Tilt Wall Mount
Description
Peerless ST660 SmartMount Universal Tilt Wall Mount series offers the most
versatile installation features and mounting options. Horizontal and vertical
adjustment abilities allow for post installation leveling and side-to-side
positioning, making it easier than ever to find the perfect TV position. Lock
the tilt angle at installation to prevent tampering or moving with the IncreLok
tilt technology. Security screws provided in the ST660 models deter tampering
and theft. The open wall plate design offers total wall access, increasing the
electrical and cable management options. The display can now simply be installed
by a single person with the Hook-and-Hang system. The Easy-Glide adaptors hook
onto the wall plate for an overall quick, simple, and secure installation.
Helpful Hints: The ST660’s adjustable viewing feature provides 15° of forward
tilt and 5° backward tilt, creating the most optimal viewing angle.
Technical Drawing
Specifications
|
Minimum to Maximum Screen Size |
39" to 80" |
|
VESA Pattern |
800 x 400 |
|
Weight Capacity |
200 lbs (90.7 kg) |
|
Color |
Black |
|
Finish |
Powder Coat |
|
Distance from Wall |
2.63 - 5.71" (67 - 145mm) |
|
Increlock Increments |
-5, 0, 5, 10, 15 degree |
|
Mounting Pattern |
832 x 405mm (32.75 x 15.95") |
|
Security Features |
Security Hardware |
|
Tilt |
+15 / -5 degree |
|
Product Dimensions |
36.54" x 16.89" x 2.62"-5.40" (928 x 429 x 67-137mm) |
|
Product Weight |
8.70 lbs (3.95 kg) |
|
Shipping Dimensions |
36.41" x 2.95" x 10.71" (925 x 75 x 272mm) |
|
Shipping Weight |
11 lbs (4.99 kg) |
|
Package Contents |
|
|
UPC Code |
|
Features
Includes all necessary wall and display attachment hardware
Mounts to wood studs, concrete, cinder block or metal studs (metal stud accessory required)
Horizontal display adjustment up to 8.00" (203mm) for centering display on wall
Included IncreLok feature offers fixed tilt lock in 5° increments when used
Up to 0.25" (6mm) of vertical adjustment on each universal display adaptor bracket for post-installation leveling and height adjustment fine-tuning
Easy-Grip ratcheting handle locks tilt angle into place
Adjustable 15° forward tilt and 5° backward tilt for finding the optimal viewing angle
Universal mount fits displays with mounting patterns up to 824 x 405mm (32.44" W x 15.95" H)
Integrated security options available
Design is UL listed and tested to four times stated load capacity
Product Options/Accessories
| Model | ST660, ST660P |
| Manufacturer | Peerless Mounts |
| Part Number | ST660, ST660P |
| UPC | 735029235606 |
| Weight | lb(s) |
| Color | Black |
| Monitor Size | 39" to 80" |
| VESA | 800 x 400 |
| Weight Capacity | 200 lbs (90.7 kg) |
| Distance From Wall | 2.63 - 5.71" (67 - 145mm) |
| Mounting Pattern | 832 x 405mm (32.75 x 15.95") |
| Tilt | +15 / -5 degree |
| Dimensions | 36.54" x 16.89" x 2.62"-5.40" (928 x 429 x 67-137mm) |
| Weight | 8.70 lbs (3.95 kg) |
| Shipping Dimensions | 36.41" x 2.95" x 10.71" (925 x 75 x 272mm) |
| Shipping Weight | 11 lbs (4.99 kg) |
| Warranty | Limited 5 year |
| Mounting Options | Wall |
| Number of Monitors | 1 Monitor |
