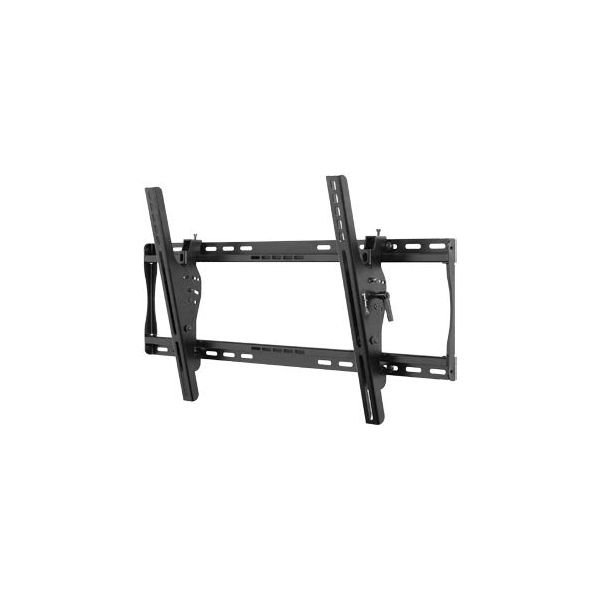

Peerless ST650 or ST650P SmartMount Universal Tilt Wall Mount
Description
The SmartMount Universal Tilt Wall Mount series offers the most versatile installation features and mounting options. Horizontal and vertical adjustment abilities allow for post installation leveling and side-to-side positioning, making it easier than ever to find the perfect TV position. Lock the tilt angle at installation to prevent tampering or moving with the IncreLok tilt technology. Security screws provided in the ST650 models deter tampering and theft. The open wall plate design offers total wall access, increasing the electrical and cable management options. The display can now simply be installed by a single person with the Hook-and-Hang system. The Easy-Glide adaptors hook onto the wall plate for an overall quick, simple, and secure installation
Helpful Hints: The ST650’s adjustable viewing feature provides 15° of forward tilt and 5° backward tilt, creating the most optimal viewing angle.
Technical Drawing
Specifications
|
Minimum to Maximum Screen Size |
39" to 75" |
|
VESA Pattern |
700 x 400 |
|
Weight Capacity |
175 lbs (79.0 kg) |
|
Color |
Black |
|
Finish |
Powder Coat |
|
Distance from Wall |
2.63 - 5.71" (67 - 145mm) |
|
Increlock Increments |
-5, 0, 5, 10, 15 |
|
Mounting Pattern |
750 x 405mm (29.52 x 15.95") |
|
Security Features |
Security Hardware |
|
Tilt |
+15 / -5 degree |
|
Product Dimensions |
31.26 X 16.89 X 2.62 - 5.40" (794 X 429 X 67 - 137mm) |
|
Product Weight |
8.15 lbs (3.70 kg) |
|
Shipping Dimensions |
10.71 x 2.95 x 33.19" (272.0 x 74.9 x 843.0mm) |
|
Shipping Weight |
10.35 lbs (4.69 kg) |
|
Package Contents |
|
|
UPC Code |
ST650: 735029235941 ST650P: 735029235965 |
Features
Design is UL listed and tested to four times stated load capacity
Integrated security options available
Includes all necessary wall and display attachment hardware
Mounts to wood studs, concrete, cinder block or metal studs (metal stud accessory required)
Horizontal display adjustment up to 8.00" (203mm) for centering display on wall
Up to 0.25" (6mm) of vertical adjustment on each universal display adaptor bracket for post-installation leveling and height adjustment fine-tuning
Included IncreLok feature offers fixed tilt lock in 5° increments when used
Easy-Grip ratcheting handle locks tilt angle into place
Adjustable 15° forward tilt and 5° backward tilt for finding the optimal viewing angle
Universal mount fits displays with mounting patterns up to 742 x 405mm (29.21" W x 15.95" H)
Product Options/Accessories
| Model | ST650, ST650P |
| Manufacturer | Peerless Mounts |
| Part Number | ST650, ST650P |
| UPC | 735029235941 |
| Weight | lb(s) |
| Color | Black |
| Monitor Size | 39"-75" |
| Mounting Pattern | 750 x 405mm (29.52 x 15.95") |
| Weight Capacity | 175 lbs (79.0 kg) |
| Distance From Wall | 2.63 - 5.71" (67 - 145mm) |
| Tilt | +15 / -5 degree |
| Dimensions | 31.26” x 16.89" x 2.62"-5.40" (794 x 429 x 67-137mm) |
| Weight | 8.15 lbs (3.70 kg) |
| Shipping Dimensions | 33.19" x 2.95" x 10.71" (843 x 75 x 272mm) |
| Shipping Weight | 10.35 lbs (4.70 kg) |
| Mounting Options | Wall |
| Number of Monitors | 1 Monitor |
| Warranty | Limited 5 year |
