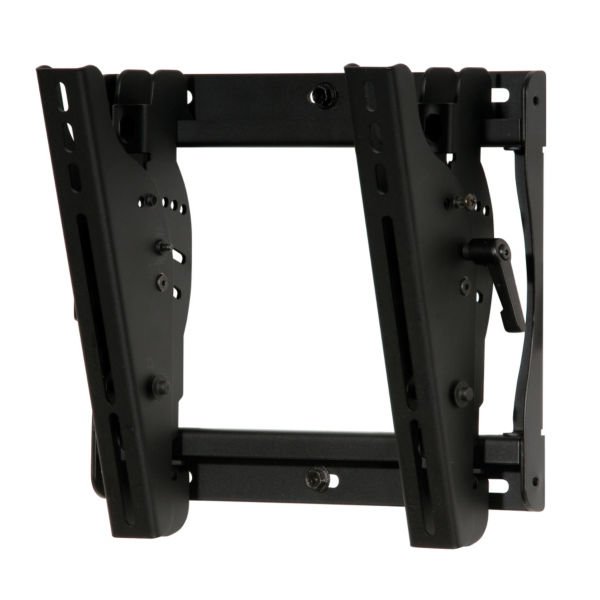

Peerless ST635 or ST635P Universal Tilt Wall Mount 13-37" Display
Description
Peerless ST635 features open wall plate architecture that offers enhanced access
to electrical and cable management. Combined with its easy tilt angle adjustment
display adaptors to achieve the ideal viewing angle and you have one quick and
simple installation.
Helpful Hints: This product is not compatible with M8 hardware.
Technical Drawing
Specifications
|
Minimum to Maximum Screen Size |
13" to 37" |
|
VESA Pattern |
75 x 75, 100 x 100, 200 x 100, 200 X 200 |
|
Weight Capacity |
125 lbs (56.0 kg) |
|
Color |
Black |
|
Finish |
Powder Coat |
|
Distance from Wall |
2.63 - 4.38" (67 - 111mm) |
|
Increlock Increments |
-5, 0, 5, 10, 15 degree |
|
Mounting Pattern |
245 x 241mm (9.65 - 9.48") |
|
Security Features |
Security Hardware |
|
Tilt |
+15 / -5 degree |
|
Product Dimensions |
13.76" x 10.3" x 2.55" - 4.38" (350 x 262 x 65 - 111mm) |
|
Product Weight |
5.1 lbs (2.3 kg) |
|
Shipping Dimensions |
11.5" x 10.06" x 3.5" (292 x 256 x 89mm) |
|
Shipping Weight |
6.6 lbs (2.99 kg) |
|
Package Contents |
|
|
UPC Code |
|
Features
UL listed
Integrated security options available
Mounts to wood stud, concrete, cinder block or metal stud (metal stud accessory required). Comes with Peerless-AV’s Sorted-for-You fastener pack with all necessary display attachment hardware
Universal display adaptors easily hook onto wall plate for fast installation
Optional IncreLok feature offers fixed tilt angles of -5°, 0°, 5°, 10°, 15°
Universal tilt bracket allows for tilt adjustment without the use of tools
Easy-grip lever locks the display position into place
Adjustable up to 15° of forward tilt and -5° backward tilt for optimal viewing angle
Open wall plate architecture allows for total wall access, increasing electrical access and cable management options
Universal mount fits displays with mounting hole patterns up to 245 x 241mm (9.65"W x 9.48"H), including VESA 100, 200 x 100 and 200 x 200mm
Product Options/Accessories
| Model | ST635, ST635P |
| Manufacturer | Peerless Mounts |
| Part Number | ST635, ST635P |
| UPC | 735029236573 |
| Weight | lb(s) |
| Color | Black |
| Monitor Size | 13"-37" |
| VESA | 75 x 75, 100 x 100, 200 x 100, 200 X 200 |
| Weight Capacity | 125 lbs (56.0kg) |
| Distance From Wall | 2.63 - 4.38" (67 - 111mm) |
| Mounting Pattern | 245 x 241mm (9.65 - 9.48") |
| Tilt | +15 / -5 degree |
| Dimensions | 13.76" x 10.3" x 2.55" - 4.38" (350 x 262 x 65 - 111mm) |
| Weight | 5.1 lbs (2.3 kg) |
| Shipping Dimensions | 11.5" x 10.06" x 3.5" (292 x 256 x 89mm) |
| Shipping Weight | 6.6 lbs (2.99 kg) |
| Warranty | Limited 5 year |
| Mounting Options | Wall |
| Number of Monitors | 1 Monitor |
