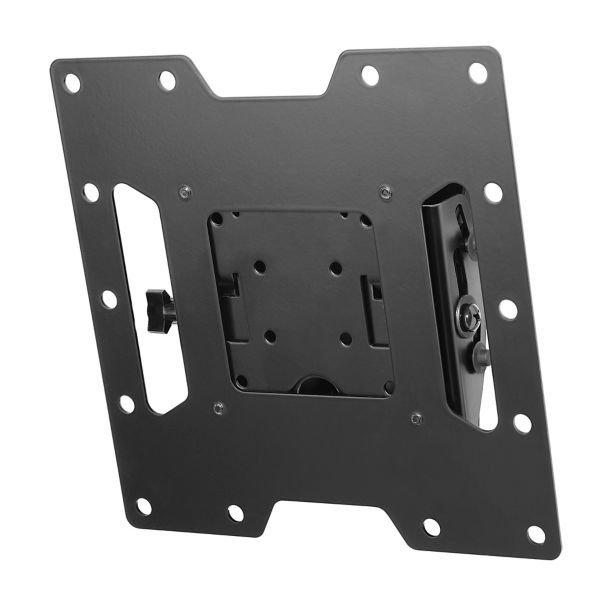

Peerless ST632 or ST632P SmartMount Tilt Wall Mount
Description
The SmartMount Tilt Wall Mount series offers the most versatile installation features and mounting options. Quickly and easily adjust the viewing angle without the use of tools. Security screws provided in the ST632 model deter tampering and theft. The display can now simply be installed by a single person with the Hook-and-Hang system. The Easy- Glide adaptors hook onto the wall plate for an overall quick, simple, and secure installation.
Helpful Hints: The ST632’s adjustable viewing feature provides 15° of forward tilt and 5° backward tilt, creating the most optimal viewing angle.
Technical Drawing
Specifications
|
Minimum to Maximum Screen Size |
22" to 40" |
|
VESA Pattern |
75 x 75, 100 x 100, 200 x 100, 200 X 200 |
|
Weight Capacity |
115 lbs (52.0 kg) |
|
Color |
Black |
|
Finish |
Powder Coat |
|
Distance from Wall |
1.66 - 2.91" (42 - 74mm) |
|
Mounting Pattern |
75 x 75, 100 x 100, 200 x 100, 200 X 200mm (2.95 x 2.95, 3.94 x 3.94, 7.87 x 3.94, 7.87 x 7.87") |
|
Security Features |
Security Hardware |
|
Tilt |
+15 / -5 degree |
|
Product Dimensions |
8.75" x 8.75" x 1.65"-2.82" (222 x 222 x 42 -72mm) |
|
Product Weight |
3.40 lbs (1.54 kg) |
|
Shipping Dimensions |
11.38" x 3.60" x 10.50" (289 x 91 x 267mm) |
|
Shipping Weight |
4.7 lbs (2.2 kg) |
|
Package Contents |
|
|
UPC Code |
ST632: 735029237242 ST632P: 735029237266 |
Features
Design is UL listed and tested to four times stated load capacity
Integrated security options available
Includes all necessary wall and display attachment hardware
Mount accommodates displays with VESA 75, 100, 200 x 100, or 200 x 200mm hole patterns
Display adaptor simply slides into the wall plate for quick and easy installation
Display is positioned only 1.65" (42mm) from wall for a low-profile application
Tilt angle locks into place with simple tightening of thumbscrew
Adjustable 15° forward tilt and -5° backward tilt for finding the optimal viewing angle
Product Options/Accessories
| Model | ST632, ST632P |
| Manufacturer | Peerless Mounts |
| Part Number | ST632, ST632P |
| UPC | 735029237242 |
| Weight | lb(s) |
| Color | Black |
| Monitor Size | 22"-40" |
| Mounting Pattern | 75 x 75, 100 x 100, 200 x 100, 200 X 200mm (2.95 x 2.95, 3.94 x 3.94, 7.87 x 3.94, 7.87 x 7.87") |
| Weight Capacity | 115 lbs (52 kg) |
| Distance From Wall | 1.66 - 2.91" (42 - 74mm) |
| Tilt | +15 / -5 degree |
| Dimensions | 8.75" x 8.75" x 1.65"-2.82" (222 x 222 x 42 -72mm) |
| Weight | 4.7 lb (2.2 kg) |
| Shipping Weight | 4.7 lbs (2.2 kg) |
| Shipping Dimensions | 11.38" x 3.60" x 10.50" (289 x 91 x 267mm) |
| Warranty | Limited 5 year |
| Mounting Options | Wall |
| Number of Monitors | 1 Monitor |
