Peerless SF670 or SF670P SmartMount Universal Flat Wall Mount
Description

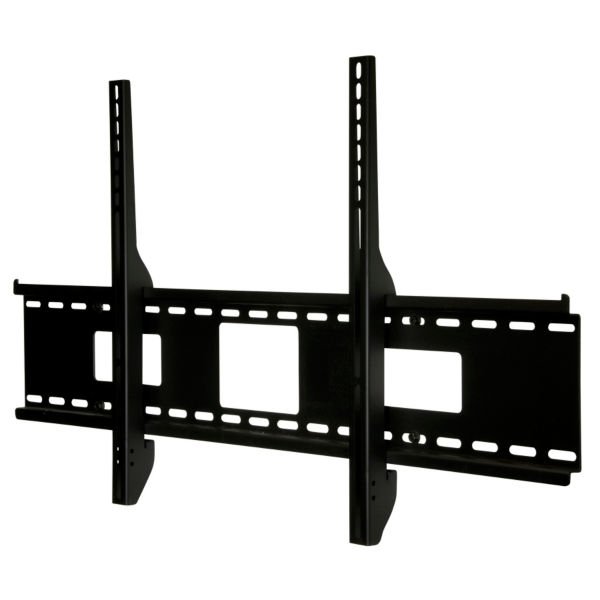

Peerless sturdy SF670 wall plate holds displays weighing up to 250lb while featuring junction box access ports and horizontal display adjustment up to 12" for ideal display positioning. Its easy-glide brackets enable quick display-to-mount attachment with a simple hook-on design. Delivering an ultra-slim profile, this mount is the essential element for low-profile installations of extra-large displays.
Helpful Hints: May also fit larger displays, please reference MountFinder for compatibility

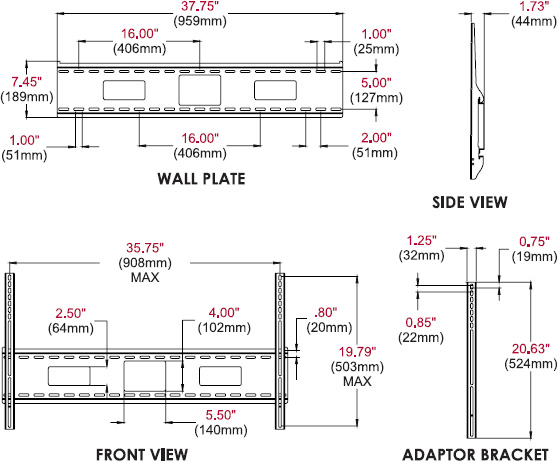

Technical Drawing
Specifications
|
Minimum to Maximum Screen Size |
46" to 90" |
|
Weight Capacity |
250 lbs (113.0 kg) |
|
Color |
Black |
|
Finish |
Powder Coat |
|
Distance from Wall |
1.73" (44mm) |
|
Mounting Pattern |
908 x 503mm (35.75 x 19.79") |
|
Security Features |
Security Hardware |
|
Product Dimensions |
37.75" x 20.63" x 1.73" (959 x 524 x 44mm) |
|
Product Weight |
10.07 lbs (4.9 kg) |
|
Shipping Dimensions |
46.8" x 8.6" x 3.9" (1189 x 218 x 99mm) |
|
Shipping Weight |
13.1 lbs (5.94 kg) |
|
Package Contents |
|
|
UPC Code |
SF670: 735029242192 SF670P: 735029242215 |
Features
Low-profile design holds display only 1.73" (44mm) from the wall for a clean application
Fits displays with mounting hole patterns up to 908 x 503mm (35.75" W x 19.79" H)
Easy-glide bracket design ensures display is securely attached to wall plate
Horizontal display adjustment up to 12" (304mm)
Mounts to wood studs, concrete, cinder block or metal studs (metal stud accessory required)
Includes fastener pack with all necessary mounting and display attachment hardware
UL listed
Product Options/Accessories
Frequently Asked Questions
The only difference is SF670P model comes with Phillips screws instead of the security screws. The security screws are specially designed with a notch in the middle of the head. Special Allen wrench is included for the security screws, so that it won't affect the installation of the wall mount.
| Model | SF670, SF670P |
| Manufacturer | Peerless Mounts |
| Part Number | SF670, SF670P |
| UPC | 735029242192 |
| Weight | lb(s) |
| Color | Black |
| Monitor Size | 46"-90" |
| Weight Capacity | 250 lbs (113.0 kg) |
| Distance From Wall | 1.73" (44mm) |
| Mounting Pattern | 908 x 503mm (35.75 x 19.79") |
| Dimensions | 37.75" x 20.63" x 1.73" (959 x 524 x 44mm) |
| Weight | 10.07 lbs (4.9 kg) |
| Shipping Dimensions | 46.8" x 8.6" x 3.9" (1189 x 218 x 99mm) |
| Shipping Weight | 13.1 lbs (5.94 kg) |
| Warranty | Limited 5 year |
| Mounting Options | Wall |
| Number of Monitors | 1 Monitor |
