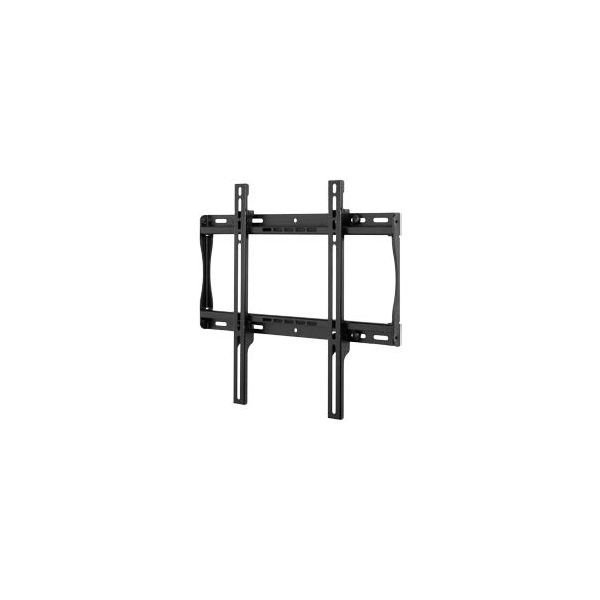

Peerless SF640 or SF640P SmartMount Universal Flat Wall Mount for 32" to 50" Displays
Description
The SmartMount Universal Flat Wall Mount series offers the most versatile installation features and mounting options. Horizontal and vertical adjustment abilities allow for post installation leveling and side-to-side positioning, making it easier than ever to find the perfect TV position. The SF640(P) models’ low-profile design offers the sleek, aesthetically pleasing look to fit into any décor. Security screws provided in the SF640 models deter tampering and theft. The open wall plate design offers total wall access, increasing the electrical and cable management options. The display can now simply be installed by a single person with the Hook-and-Hang system. The Easy-Glide adaptors hook onto the wall plate for an overall quick, simple, and secure installation.
Helpful Hints: The SF640’s design positions the display just 1.20" from the wall, perfect for almost any low-profile application
Technical Drawing
Specifications
|
Minimum to Maximum Screen Size |
32" to 50" |
|
VESA Pattern |
400 x 400 |
|
Weight Capacity |
150 lbs (68.0 kg) |
|
Color |
Black |
|
Finish |
Powder Coat |
|
Distance from Wall |
1.20" (32mm) |
|
Mounting Pattern |
450 x 405mm (17.72 x 15.95") |
|
Security Features |
Security Hardware |
|
Product Dimensions |
19.37" x 16.89" x 1.20" (492 x 429 x 30mm) |
|
Product Weight |
3.95 lbs (1.80 kg) |
|
Shipping Dimensions |
21.69" x 1.57" x 10.71" (551 x 40 x 272mm) |
|
Shipping Weight |
5.4 lbs (2.44 kg) |
|
Package Contents |
|
|
UPC Code |
SF640: 735029235651 SF640P: 735029235675 |
Features
Includes all necessary wall and display attachment hardware
Mounts to wood studs, concrete, cinder block or metal studs (metal stud accessory required)
Landscape to portrait mounting options increases installation versatility. Please check display dimensions against the wall plate when used in portrait mode*
Horizontal display adjustment up to 6.00" (152mm) for centering display on wall
Up to 0.25" (6mm) of vertical adjustment on each universal display adaptor bracket for post installation leveling and height adjustment fine-tuning
Low-profile design holds display only 1.20" (30mm)
Universal mount fits displays with mounting patterns up to 450 x 405mm (17.72" W x 15.95" H)
Integrated security options available
Design is UL listed and tested to four times stated load capacity
Product Options/Accessories
| Model | SF640, SF640P |
| Manufacturer | Peerless Mounts |
| Part Number | SF640, SF640P |
| UPC | 735029235651 |
| Weight | lb(s) |
| Color | Black |
| Monitor Size | 32"-50" |
| Mounting Pattern | 450 x 405mm (17.72 x 15.95") |
| Weight Capacity | 150 lbs (68.0 kg) |
| Distance From Wall | 1.20" (32 mm) |
| Dimensions | 19.37" x 16.89" x 1.20" (492 x 429 x 30mm) |
| Shipping Dimensions | 21.69" x 1.57" x 10.71" (551 x 40 x 272mm) |
| Shipping Weight | 5.4 lbs (2.44 kg) |
| Warranty | Limited 5 year |
| Weight | 3.95 lbs (1.80 kg) |
| Mounting Options | Wall |
| Number of Monitors | 1 Monitor |
