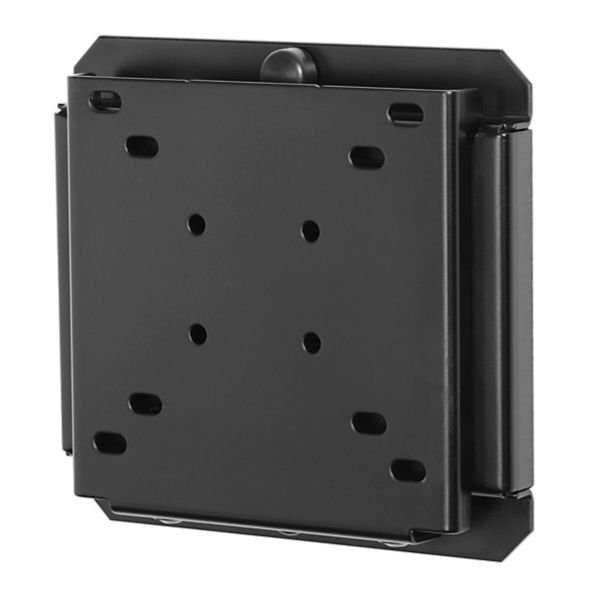

Peerless SF630 SmartMount for 10"-29" Displays
Description
The SmartMount Flat Wall Mount series offers the most versatile installation features and mounting options. The SF630(P) models low-profile design offers the sleek, aesthetically pleasing look to fit into any décor. Security screws provided in the SF630 model deter tampering and theft. The display can now simply be installed by a single person with the Hook-and-Hang system. The Easy-Glide adaptors hook onto the wall plate for an overall quick, simple, and secure installation.
Helpful Hints: The SF630’s design positions the display just 0.96" from the wall, perfect for almost any low-profile application.

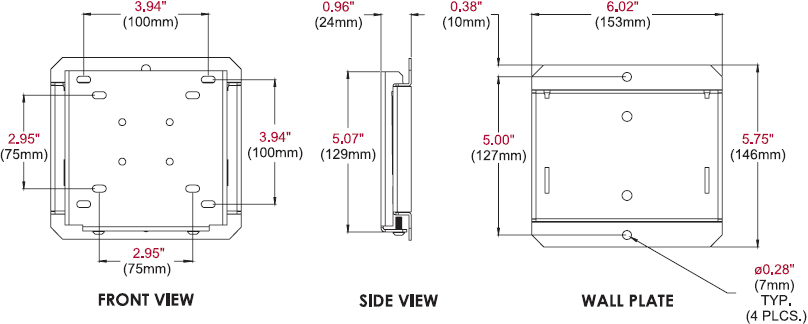

Technical Drawing
Specifications
|
Minimum to Maximum Screen Size |
10" to 29" |
|
VESA Pattern |
75 x 75, 100 x 100 |
|
Weight Capacity |
80 lbs (36.0 kg) |
|
Color |
Black |
|
Finish |
Powder Coat |
|
Distance from Wall |
0.96" (24mm) |
|
Mounting Pattern |
75 x 75, 100 x 100mm (2.95 x 2.95, 3.94 x 3.94") |
|
Security Features |
Security Hardware |
|
Product Dimensions |
6.02 x 5.75 x 0.96" (153 x 146 x 24mm) |
|
Product Weight |
1.55 lbs (0.70 kg) |
|
Shipping Dimensions |
9.38" x 2.90" x 8.25" (238 x 74 x 210mm) |
|
Shipping Weight |
2.2 lbs (1.0 kg) |
|
Package Contents |
|
|
UPC Code |
SF630: 735029236191 SF630P: 735029236214 |
Product Options/Accessories
| Model | SF630, SF630P |
| Manufacturer | Peerless Mounts |
| Part Number | SF630, SF630P |
| UPC | 735029236191 |
| Weight | lb(s) |
| Color | Black |
| Monitor Size | 10" to 29" |
| Mounting Pattern | 75 x 75, 100 x 100mm (2.95 x 2.95, 3.94 x 3.94") |
| Weight Capacity | 80 lbs (36.0 kg) |
| Distance From Wall | 0.96" (24 mm) |
| Dimensions | 6.02" x 5.75" x 0.96" (153 x 146 x 24mm) |
| Weight | 1.55 lbs (0.70 kg) |
| Shipping Dimensions | 9.38" x 2.90" x 8.25" (238 x 74 x 210mm) |
| Shipping Weight | 2.2 lbs (1.0 kg) |
| Warranty | Limited 5 year |
| Mounting Options | Wall |
| Number of Monitors | 1 Monitor |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 0
Warranties and Returns
Limited Warranty
Peerless Industries, Inc. (Peerless-AV) warrants to original end-users of
Peerless-AV products that Peerless-AV products will be free from defects in
material and workmanship, under normal use, for the periods listed below, from
the date of purchase by the original end-user. At its option, Peerless-AV will
repair or replace with new or refurbished products or parts, or refund the
purchase price of, any Peerless-AV product which fails to conform with this
warranty.
In no event shall the duration of any implied warranty of merchantability or
fitness for a particular purpose be longer than the period of the applicable
express warranty set forth above. Some states do not allow limitations on how
long an implied warranty lasts, so the above limitation may not apply to you.
This warranty does not cover damage caused by (a) service or repairs by the
customer or a person who is not authorized for such service or repairs by
Peerless-AV, (b) the failure to utilize proper packing when returning the
product, (c) incorrect installation or the failure to follow Peerless-AV’s
instructions or warnings when installing, using or storing the product, or (d)
misuse or accident, in transit or otherwise, including in cases of third-party
actions and force majeure. This warranty also does not cover corrosion or rust
resulting from damaged, scratched or chipped paint or other surfaces.
In no event shall Peerless-AV be liable for incidental or consequential damages
or damages arising from the theft of any product, whether or not secured by a
security device which may be included with the Peerless-AV product. Some states
do not allow the exclusion or limitation of incidental or consequential damages,
so the above limitation or exclusion may not apply to you.
This warranty is in lieu of all other warranties, express or implied, and is the
sole remedy with respect to product defects. No dealer, distributor, installer
or other person is authorized to modify or extend this Limited Warranty or
impose any obligation on Peerless-AV in connection with the sale of any
Peerless-AV product.
This warranty gives specific legal rights, and you may also have other rights
which vary from state to state.
| Product | Warranty Period |
| Mounts | 5 years |
| Kiosk Enclosures | 5 years |
| Furniture | 1 year |
| Cables | 25 years |
| Cleaning Products | 1 year |
| Power Products | 1 year |
| Electronic Products and Components | 1 year |
| Xtreme Displays, Ultra View TVs | 2 years |
| Interactive | 1 year |
