Neutral Posture Graphite Urethane Lab Healthcare Cleanroom Chair
Weight Capacity 275 lbs. Please note: This chair is custom-made and non-returnable. All fabric colors shown on your computer screen are approximate, based on the resolution of your monitor and subject to variation from the actual color on physical chairs. For more accurate ideas of color tones, etc. please contact [email protected] or call 888-456-ERGO to obtain a sample or fabric swatch.
Description
Rugged and dependable, the Graphite is built to support and assist in numerous environments: cleanroom, healthcare, industrial, manufacturing, and school labs to name a few. A variety of arms and adjustment options are available to allow the chair to adjust to the user’s individual working style. This is a very popular chair or stool with universities around the country.
Features
Choice of 3 Chair Mechanisms
ESD and Cleanroom Options Available
Optional NeXtep Platform with Height and Width Adjustments
Low Back and Contoured Seat Designs
Passive Weight Dispersion Design
Urethane is Resilient to Harsh Environments
6 Arm Options
Applications
Task, Stool, Lab, Industrial, Healthcare and Cleanroom

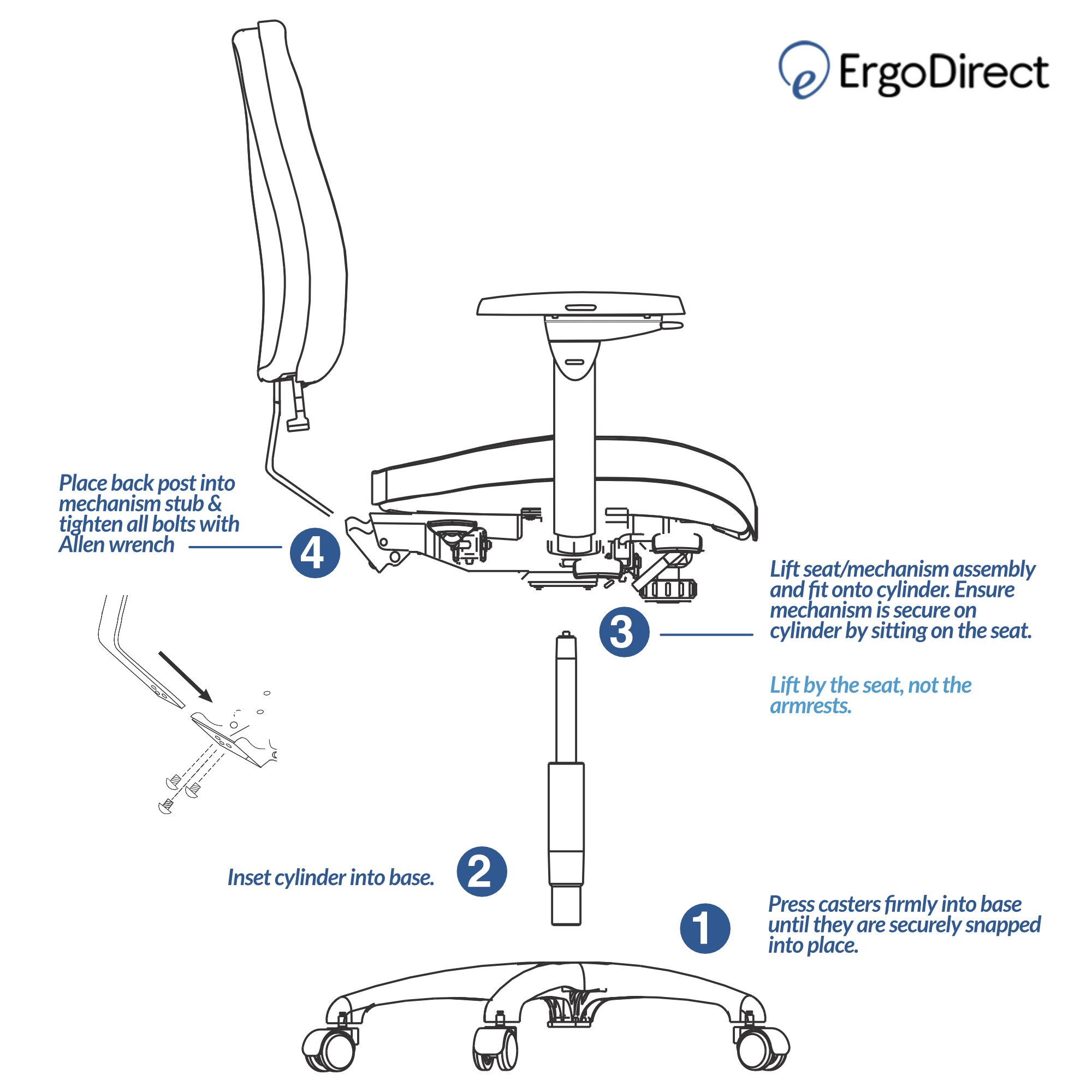

Chair Ship Un-assembled with the following parts in a Box
Single Back (if applicable)
Base with Caster already in
Separate Cylinder
Arms, Seat and Mechanism all put together
Specifications
|
Models |
NCU551 |
NCU552 |
NCU553 |
|
Chair (H x W x D) |
33.5" x 26" x 26" |
31.5" x 26" x 26" |
31.5" x 26" x 26" |
|
Chair Weight |
41 lbs |
41 lbs |
41 lbs |
|
Seat Width |
19" |
19" |
19" |
|
Seat Height |
14.25" - 19.25" |
14 - 19" |
14" - 19" |
|
Seat Depth |
17.5" - 20" |
18" |
18" |
|
Seat Angle |
R 5° |
R 5° |
F 7° - R 4° |
|
Back Width |
17" |
17" |
17" |
|
Back Height |
16.25" |
14.5" - 18.5" |
14.5" - 18.5" |
|
Back Angle |
103° |
90° - 120° |
105° - 136° |
|
Arm Width |
16" - 20" |
16" - 20" |
16" - 20" |
|
Base Diameter |
26" |
26" |
26" |
Option 1: Seat Back Style
5 - Flat Urethane Back
Option 2: Seat Style
5 - Flat Urethane Seat
Option 3: Arm Selection
A0 - 4" Height and Width Adjustable Arms
A2 - T Arms
A3 - 3" Height and Width Adjustable Arms
A6 - 4" Extended Height Adjustable Arms
Option 4: Chair Mechanism
1 - Basic
2 - Standard
3 - Deluxe-tilt
Options 5: Seat Height - Cylinders
L1 - 3" Cylinder
L3 - 5" Cylinder - Standard
L4 - 8" Cylinder (Standard with 26" Black Base (B0))
L5 - 10" Cylinder (Standard with 26" Black Base (B0))
Options 6: Base Style
B0 - Standard 26" Black Base
B6 - 26" Polished Aluminum Base
B9 - 28" Chrome Base
B12 - 28" Black Base
B20 - 25" Spider Ring with Glides (special shipping required)
B3 - 26" Spider Ring with Glides (special delivery required)
Options 7: Casters - Wheels
C1 - Hard Floor Casters
C2 - Glides
C3 - Hard Floor Brake/In
C4 - Hard Floor Brake/Out
Options 8: Foot Ring and NeXtep Platforms
R1 - 18" Black Plastic Footring (Only available on 8" (L4) or 10" (L5) Cylinders)
R2 - 20" Chrome Footring (Only available on 8" (L4) or 10" (L5) Cylinders)
R8 - NeXtep 8" with Casters (Not available on 8" (L4) or 10" (L5) Cylinders)
R10 - NeXtep 10" High Leg with Casters (Only available on 8" (L4) or 10" (L5) Cylinders)
R18 - NeXtep Combo 8"/10" with Casters (Not available on 3" (L1) or 4" (L2) Cylinders)
Product Options/Accessories
| Model | NCU551, NCU552, NCU553 |
| Manufacturer | Neutral Posture Chairs |
| Part Number | NCU551, NCU552, NCU553 |
