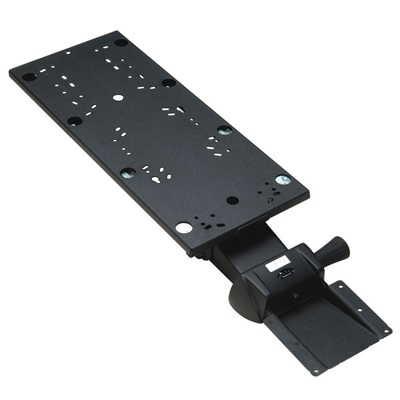

Workrite 3172-22TG Pinnacle 2 Extended Keyboard Arm - 22" Track


Product ID 14016
  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
Write your review
Workrite 3172-22TG Pinnacle 2 Extended Keyboard Arm - 22" Track
Workrite 3172-22TG Pinnacle 2 Extended Keyboard Arm - 22" Track

Select an attribute...

  • Color
  • Track
  • Swivel Plate
  • Spacer
  • Corner Solution
  • Positive Tilt Lock
  • Bench Mount Kit
  • Delivery method *
  • Color
    Black - $0.00
  • Track
    22" track - $0.00
  • Swivel Plate
    Click to select - $0.00
  • Spacer
    Click to select - $0.00
  • Corner Solution
    Click to select - $0.00
  • Positive Tilt Lock
    Click to select - $0.00
  • Bench Mount Kit
    Click to select - $0.00
  • Delivery method*
    Click to select This option is mandatory

Description

Workrite Pinnacle 2 is the latest generation of the highly acclaimed PinnacleArm. With an easy-read TiltRite gauge and full-range tilt support, the Pinnacle 2 keyboard arm offers unprecedented smoothness and adjustability for maximum comfort.



Specifications

Track Length

21-13/16"

Track Width

9-1/8"

Work Surface Depth

22" or more

Tilt Range

-15° to +10°

Height Range

8.5"

Track Style

ThinGlide progressive ball-bearing slide





Pinnacle Arm 2 Extended

Pinnacle Arm 2 Extended

Pinnacle 2 Arm

Pinnacle 2 Arm


Pinnacle Arm Without Tray & Track

Pinnacle Arm Without Tray & Track

Pinnacle Arm With Keyboard Tray

Pinnacle Arm With Keyboard Tray


Pinnacle 2 and Pinnacle 2 Value

Pinnacle 2 and Pinnacle 2 Value



Pinnacle 2 Extended

Pinnacle 2 Extended

 For the most versatile solution, select a platform with an integrated ambidextrous mousing surface. Two popular choices include the Banana-Board, with its sliding mouse surface or Revo, with its quick change mouse tray.



  • Tilt range: -15° to +10°
  • No-knob, no-lever, lift-n-lock for one-touch height adjustment
  • Independent height and angle controls
  • Height range from flush to 8" below worksurface
  • 360° swivel for easy positioning and storage
  • Non-intrusive low profile track provides maximum knee clearance and smooth, consistent operation
  • Optional no-positive-tilt kit


Tilt Gauge indicates negative tilt

Tilt Gauge indicates negative tilt

Banana Board fits all typical workstatons





Features

Superior Tilt Range - Pinnacle 2 offers full range positive and negative tilt with a single arm to accommodate the optimal position for different needs. Pinnacle 2 Extended offers height adjustment range up to 8 inches below the work surface to meet the BIFMA standard G1-2001.

Easy-Read Visual - The Pinnacle 2 tilt gauge is conveniently located on the top of the arm for easy viewing.

Adjustable Dual Spring Assist - The dual counterbalance lift assist spring is preset at the factory for optimal performance. However, with the unique combination of adjustability and dual springs, the Pinnacle 2 enables users to adjust the spring to accommodate most keyboard platforms.

Easy Adjustability - Workrite was the first to develop incremental tilt capability that does not effect height adjustment or require a tightening or clamping knob. With particular focus on employee comfort and convenience, Pinnacle 2 features an incremental tilt that is adjustable by simply rotating the knob to increase or decrease to the recommended tilt angle. This helps to maintain a straight wrist position for employees with a repetitive strain injury such as carpal tunnel syndrome (CTS).

Durability - All Workrite Pinnacle 2 adjustable keyboard arms meet or exceed the ANSI/BIFMA X5.5-1998 standards for performance, durability, and cycle testing. All Pinnacle 2 products carry a Limited Lifetime Warranty.





Option 1: Color

Black

Black





Option 2: Track Length



21-13/16" track length for desks deeper than 22".





Option 3: Swivel Plate

Swivel Plate

Swivel Plate 2179-SP: The swivel plate allows you to swivel your keyboard tray horizontally independent from the arm.

Allows keyboard and mouse platform to pivot an extra 45 degree for special mounting requirements.

  • Easy to Install
  • Mounts between the arm and keyboard platform.
  • Weight 3 lbs





Option 4: Mounting Spacer

Workrite Mounting Spacer

  • Mounting Spacer (1/4" Thickness)

  • Mounting Spacer (1/2" Thickness)

  • Mounting Spacer (3/4" Thickness)

  • Mounting Spacer (1" Thickness)

  • Mounting Spacer (1 1/4" Thickness)

  • Mounting Spacer (1 1/2" Thickness)

  • Mounting Spacer (1 3/4" Thickness)

  • Mounting Spacer (2" Thickness)
  • Mounting Spacer is required only when the edge of your desk is thicker than the rest of the worksurface.
  • Used to attach adjustable arm tracks when edge is thicker than worksurface.
  • You can add spacer to make a flat surface under the desktop from front to back in order to install the Adjustable Arm.
  • Available in 16" and 21" lengths (please specify).

WorkRite Mounting Spacers for Thick Edges

Drawing for Mounting Spacer

a = 16" or 21"

b = 11-3/4"





Option 5: Corner Solution

WorkRite 179ACD Adjustable Corner Diagonal

179ACD
  • Dimensions: 12" W x 1 3/4" H.
  • Adjusts to fit 1" to 2" thick work surfaces.
  • Clamping design eliminates spacers.
  • Converts 90 degree to useable work area.
  • Weight: 3 Lbs.
  • Color: Black


WorkRite 179CCD Compact Corner Diagonal

179CCD
  • a = 17.5" ... b = 9.25" ... c = 1.5"
  • Move operator closer to work surface
  • Designed specifically to fit model # 321 with Pinnacle 2 Arm. Also work with the following platform models: 187,188,487,488
  • Converts 90 degree corners and diagonal corners less than 17" to useable work area
  • Weight: 4 Lbs
  • Color: Black/Gary



WorkRite 179CR Corner Rectangle for Keyboard Arms

179CR
  • a = 26" ... b =15" ... c = 1 1/2"
  • Fits all platforms up to 28" wide
  • Works with all Workrite keyboard arms
  • Converts 90" corners and corners with keyboard cutouts to useable diagonal area
  • Weight: 4 Lbs
  • Color: Black/Gray





Option 6: Positive Tilt Lock



It is a pin that is inserted in the arm to prevent the tilt from going to positive. It restricts the adjustable arms going to negative tilt range from -6 to -15 degrees.



Product Options/Accessories

Model Workrite 3172-22TG
Manufacturer Workrite Ergonomics
Part Number Workrite 3172-22TG
UPC 029274403119

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)

Warranty

Workrite warrants to the original purchaser that the products it manufactures are free from defects in design, material and workmanship. Subject to the limitations below, Workrite warrants each product in this catalog to be free from defects in materials and workmanship for the life of the product in its original installation. With prompt written notice, Workrite will repair or replace, free of charge, any product, part or component which fails under normal use as a result of such defect.
