Innovative 7601-14 Long Reach Flat Panel Arm with 42" Reach

Related Products:

7601-14-1000-NM

Vertical range: 31", Horizontal range: 42", Weight range: 0 - 8.9 lbs, No Mount

7601-14-1500-NM

Vertical range: 31", Horizontal range: 42", Weight range: 2.1 - 15.5 lbs, No Mount

7601-14-2000-NM

Vertical range: 31", Horizontal range: 42", Weight range: 6.1 - 24.1 lbs, No Mount

Features of innovative 7601-14-1500 Flat Panel Arm Through Desk Mount:

    1.  Rotates 360 degrees at three joints.

    2.  Includes cable management system. Cables are routed entirely within arm.

    3.  Folds up to occupy just inches of space.

    4.  Monitor tilter mechanism can tilt over 200 degrees.

    5.  Monitor pivots 90 degrees for portrait to landscape viewing.

   6.  Optional upgrade to quick install/release monitor bracket. Consult your sales rep for details.

7.  VESA-monitor compatible - 75mm & 100mm VESA adapters included. Please call for non-

         VESA options.

   8.  Optional 2" and 6" extender tubes are available to raise monitor (see Extender Tubes under

         Available Accessories).

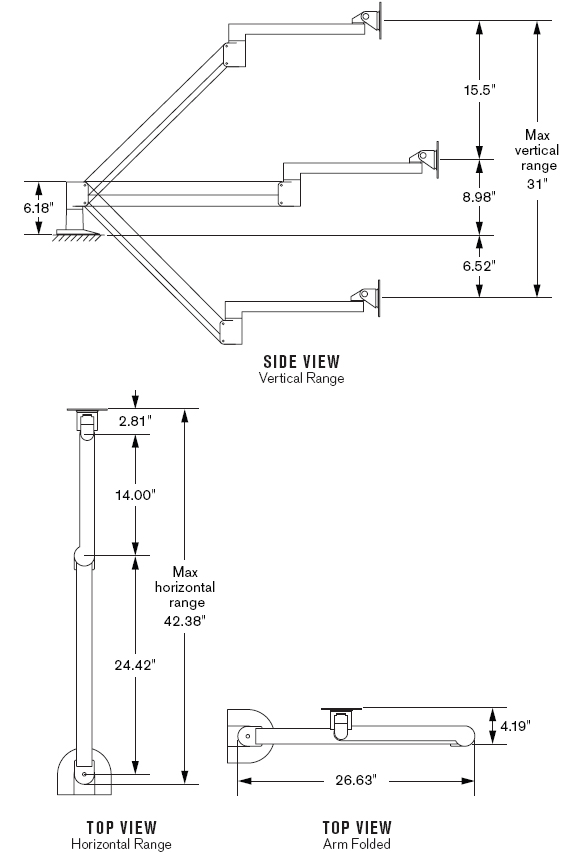

Dimensional Diagram for Innovative 7601-14 Long Reach (42") Flat Panel Radial Wall Mount LCD LED Monitor Arm with Internal Cable Management

Description of Innovative 7601-14-2000 Radial Arm:

This massive arm extends up to 42", allowing for a remarkable amount of flexibility. Combined with more than 31" of vertical range, Model 7601-14 allows you to position the monitor anywhere within its huge span. Combined with an optional keyboard tray, this arm makes for a most useful sit/stand data entry station. As with all Innovative articulating arms, the monitor floats weightless above the work surface, where it can be effortlessly repositioned. A wide degree of monitor tilt is also featured, even the ability to turn the monitor from landscape to portrait viewing. Cables are threaded through the arm, keeping them out of view and out of harm's way.

Specifications:

Vertical Range:

31"

Horizontal Range:

42"

Rotation:

360 degrees at three joints

Monitor Tilt:

200 degrees

Monitor Pivot:

Landscape to portrait

Cable Management:

Cables are routed entirely within arm

Mounting Options:

FLEXmount, Wall, Thru-Desk

Monitor Compatibility:

Compatible with all VESA monitors - Includes 75mm and 100mm VESA mounting plates. Please call for non-VESA options
