Chief KWY220 Height-Adjustable Dual Arm Wall Mount, Dual Monitor

Chief KWY220 Height-Adjustable Dual Arm Wall Mount, Dual Monitor

This product has been discontinued. See below for similar products we offer instead. We apologize for the inconvenience.

View Similar Products

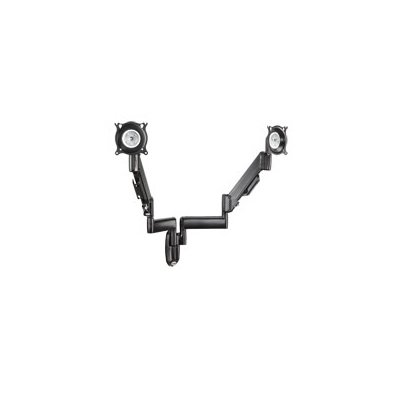

Chief KWY220B Dual Wall Mount Height Adjustable LCD Monitor Arm



Chief KWY220S or KWY220B Dual Wall Mount Height Adjustable LCD Monitor Arm





Features of Chief KWY220:

    1. Allows independent movement and height adjustment of each monitor for maximum ergonomic

         flexibility.



    2.  Centris Technology provides smooth, fingertip tilt in any direction.



    3. Teardrop hole pattern makes mounting the screen quick and easy.



    4.  Maximum range of motion from low profile to full extension.



    5. Sleek, attractive design hides all hardware.



    6.  Independently adjustable tension at pivot for customized control.



    7. Tension can be optimized for touch screen use.



    8.  Quick, easy cable management

    9.  VESA 75x75 and 100 x100 mm compatible (custom interface also available)

  10.  Compatible with all chief custom OFB Office Furniture interface brackets ships fully

       assembled.

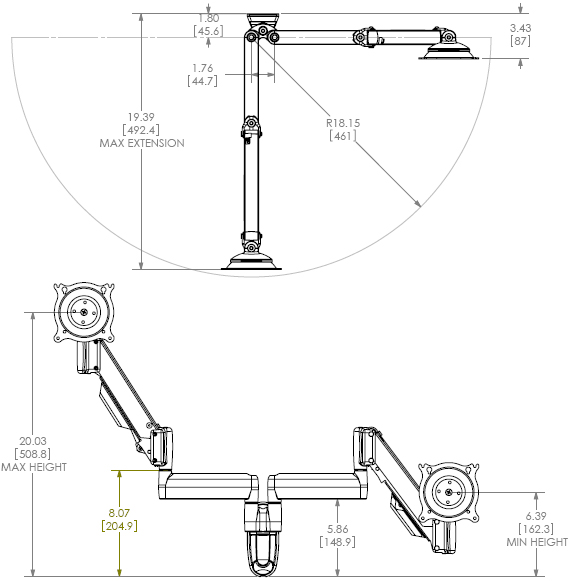

Technical Drawing for Chief KWY-220 Dual Wall Mount Height Adjustable Arm



Drawing for Chief KWY220S or KWY220B Dual Wall Mount Height Adjustable LCD Monitor Arm





Description of Chief KWY-220B:

A dual arm mount for small flat panel monitors that provides maximum ergonomic flexibility for viewing multiple monitors while attached to the wall. Independently position monitors for optimal viewing comfort (sitting and/or standing).





Specifications:

Color:

Black

VESA Compatibility:

75 x 75 mm and 100 x 100 mm


Product Options/Accessories
AnchorPad 31177 Laptop Security Mount with Large Standard Wings and Slide

31177 Desk/Wall Anti-Theft Lockdown Stand

$149.99
Chief KSA1009 Security Hardware Kit, Height-Adjustable Swing Arm

KSA1009 Security Hardware Kit (Height-Adjustable)

$58.00 $27.80
Height-Adjustable Keyboard & Mouse Tray Wall Mount - Chief KWK110B

KWK110B Keyboard Wall Mount

$614.00 $491.20
Chief KSA1022B Wall Track Accessory

Chief KSA1022B Wall Track Accessory

$274.00 $219.20
Chief KSA1013B Laptop Tray Adapter

KSA1013 Laptop Tray

$232.00 $92.80
Chief Keyboard Tray Accessory KSA1021B or KSA1021S

KSA1021 Keyboard Tray

$318.00 $127.20
Chief KSA1002B Desk Clamp Accessory

KSA1002 Desk Clamp Accessory

$240.00 $96.00
Chief Centris Quick Connect Bracket KSA1024B

KSA1024 Quick Release Bracket

$77.00 $61.60
Frequently Asked Questions

No FAQs available for this product. Have a question? Ask us!

Product Information
  • Model KWY220B
  • Manufacturer Chief Mounts
  • Part Number KWY220B
  • UPC 841872143460
  • Mounting Options Wall
  • Monitor Arm Types 2 Monitors
  • Color Black
  • Dynamic Height Adjustment 13.25"
  • Maximum Extension 20" (508mm)
  • Minimum Depth 2.19" (55.6mm)
  • Mounting Pattern 75 x 75mm, 100 x 100mm
  • Overall Dimensions 12.0" x 10.0" x 4.2" (305 x 254 x 107mm)
  • Shipping Dimensions 18.10 lbs
  • Tilt + 15 degee, - 15 degree
  • Screen Size 10 - 30 in
  • Weight Capacity 5 - 20 lbs (2.3 - 9.1kg)
