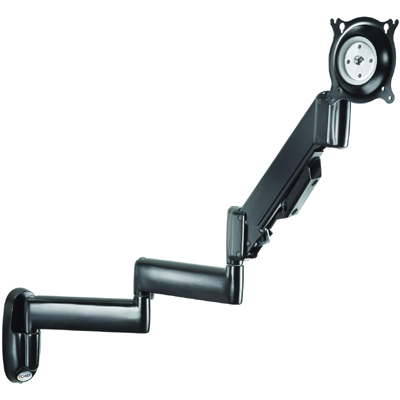

Chief KWB110B Height Adjustable Triple Arm Wall Mount

Features of Chief KWB 110:

    1.  Fingertip Height Adjustment: Adjust viewing height up to 13.25” (337 mm). Optimize height

         adjustment for any display with customizable tension

2.  Centris Technology (PATENTED FEATURE): Provides smooth fingertip tilt in all directions

         using the screen’s center of gravity. Screen angle stays set until you decide to re-adjust.

  3.  Compatible with Office Furniture:Custom OFB office furniture interface brackets available

         for most office systems. (OFB brackets sold separately)

4.  Advanced Display Mounting:Teardrop hole pattern makes mounting the screen quick and

         easy.

    5.  Independently adjustable tension at pivot points for customized control, tension can be

         optimized for touch screen use

    6.  Folds in close to the wall for a low-profile appearance.

    7.  Sleek, attractive design hides all hardware.

    8.  Integrated cable management.

    9.  VESA 75 x 75 mm and 100 x 100 mm compatible (Custom interfaces also available)

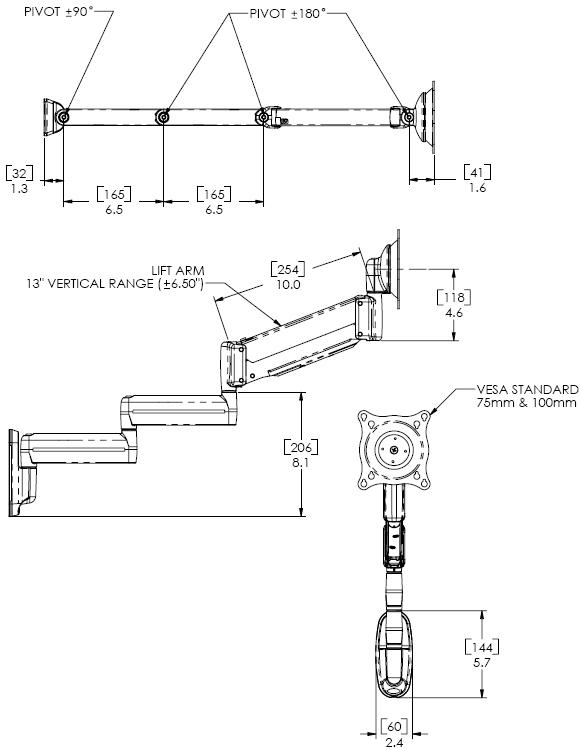

Technical Drawing for Chief KWB-110 Wall Mount

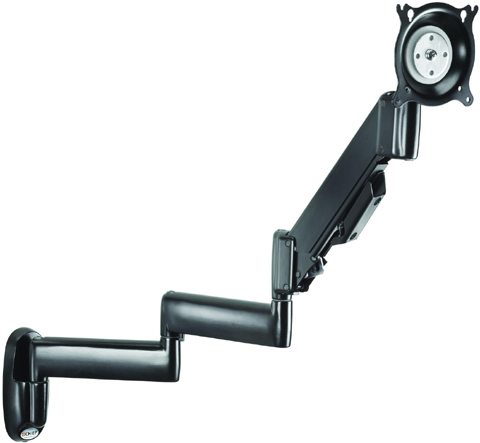

Height Adjustable Flat Panel Single Monitor Triple LCD Arm

Description of Chief KWB-110B:

Chief’s KWB110 is the most versatile wall mount in Chief's line of monitor mounts, providing the maximum height adjustment and extension. (Previously sold as FWB110)

• Ergonomic solution for the home or office providing excellent adjustability

Depth (closed):

2.19" (56 mm)

Maximum Extension:

26.38" (670 mm)

Height Adjustment:

13.25" (337 mm)

Tilt:

+/-15º

Pivot:

180º

Dimensions (H x W x D):

15.25" x 4.55" x 25.96" (387 x 116 x 659 mm)

Weight Capacity:

5-25 lbs (2.3-11.4 kg)

Color:

Black

VESA Compatibility:

75 x 75 mm and 100 x 100 mm (without extra interface bracket)
